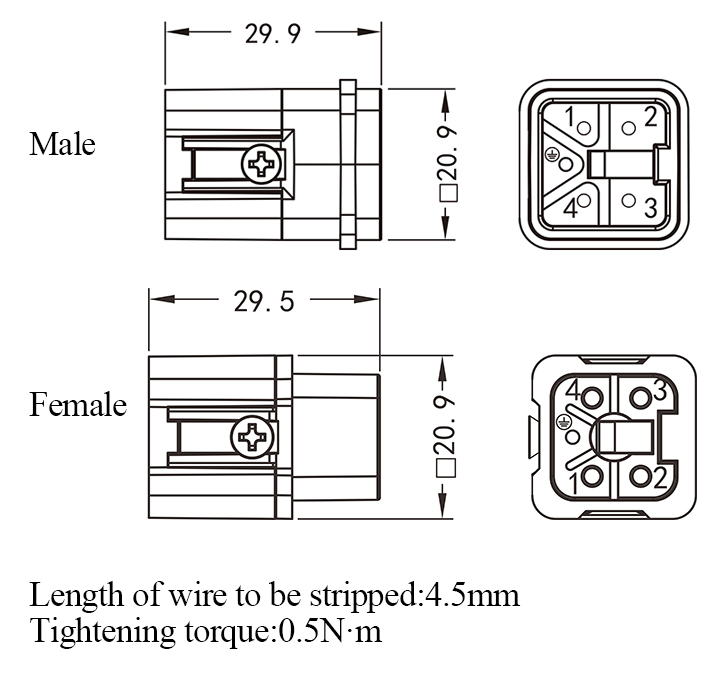

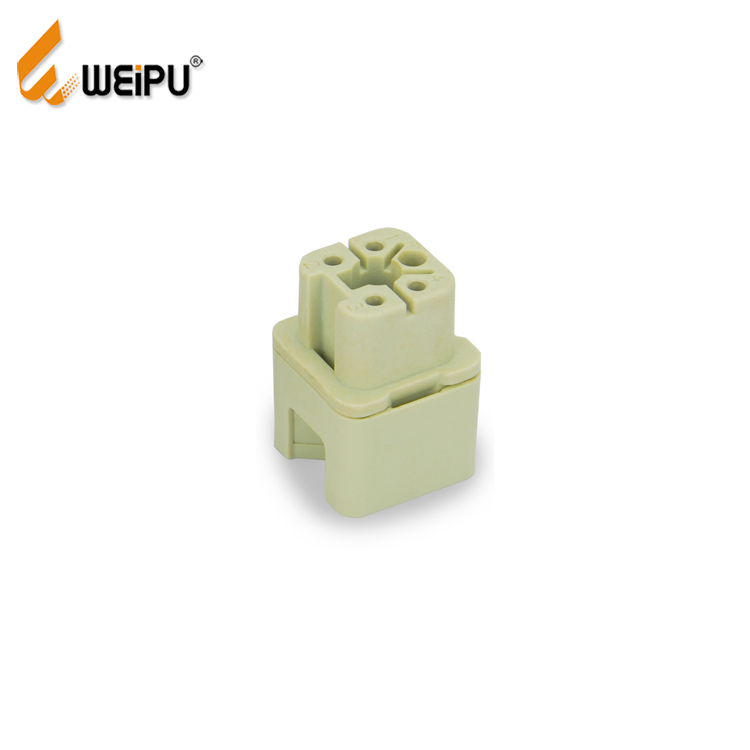

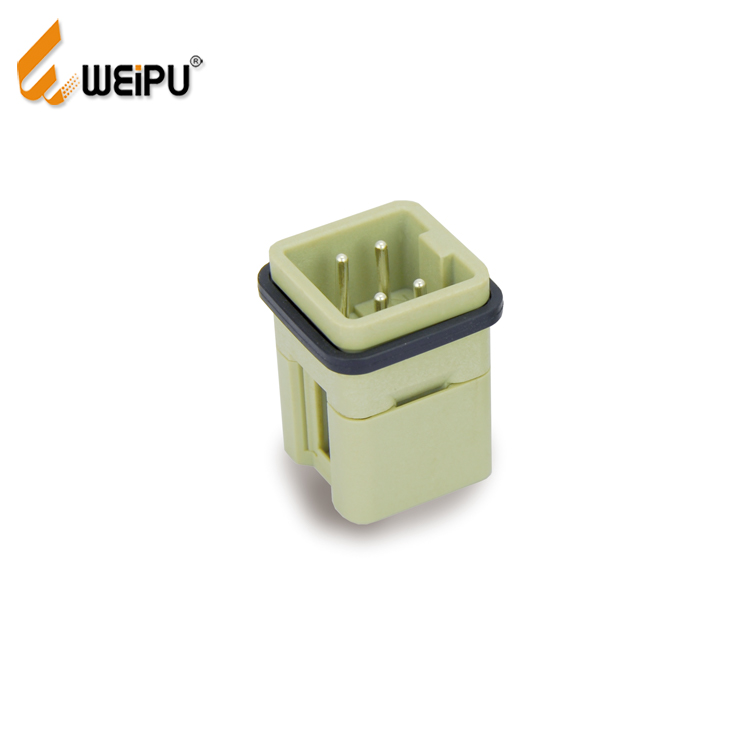

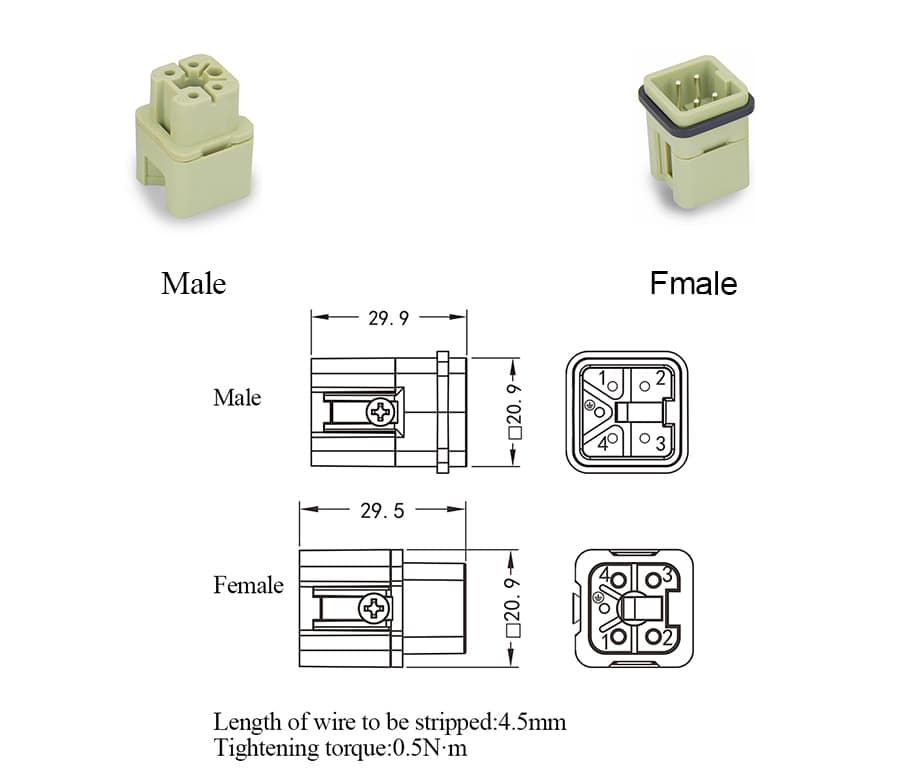

HA-004- HA-004-F Male and Female 10A 230/400v 4+PE Screw Contact Connector

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.

Applied Range:
◆ Wind Energy
◆ Power Systems
◆ Photovoltaic Industry
◆ Engineering Equipment
◆Other Industry Application

Description

Technical characteristics
international standard: IEC60664-1、IEC61984
Number of contacts: 3+PE、4+PE、10+pe、16+pe、32+PE
Insert
Rated current HA-003,HA-004:10A
HA-010,HA-016,HA-032:16A
Rated voltage HA-003,HA-004:250V/400V
HA-010,HA-016,HA-032:250V
Rated impulse voltage 4kV
Pollution degree 3
Insulation resistance ≥10^10 Ohm
Material(insert)  polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V-0
Rated voltage acc.to UL/CSA 600V
Mating cycles ≥500
Contact pin
Material(contact) Copper Alloy
Surface Silver or Gold Plated
Contact resisance ≤1mΩ
Terminal Screw
Wire gauge 0.75-2.5mm^2
18-14AWG
Stripping length 7.5mm^2
Terminal  Crimp
Wire gauge 0.14-4mm^2
26-12AWG
Stripping length 7.5mm^2
