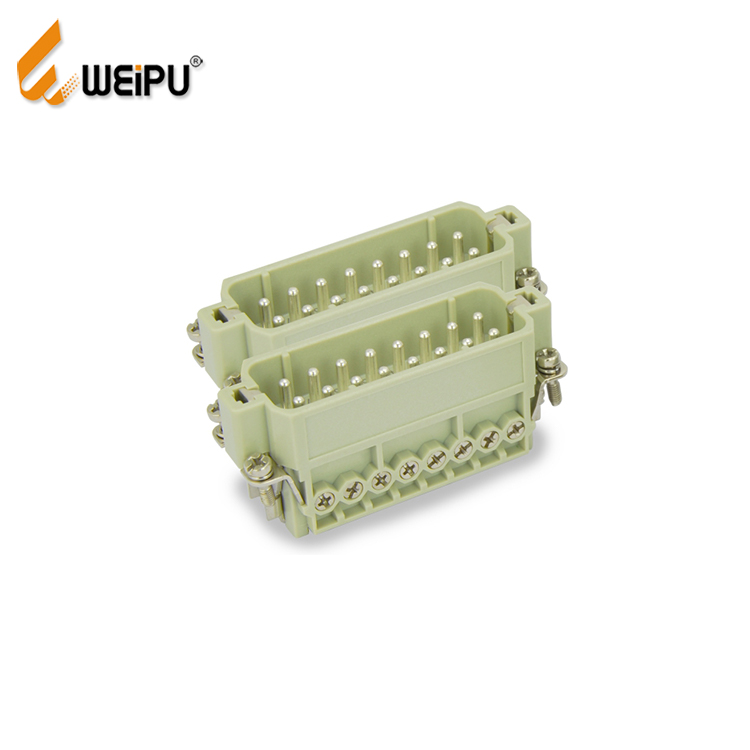

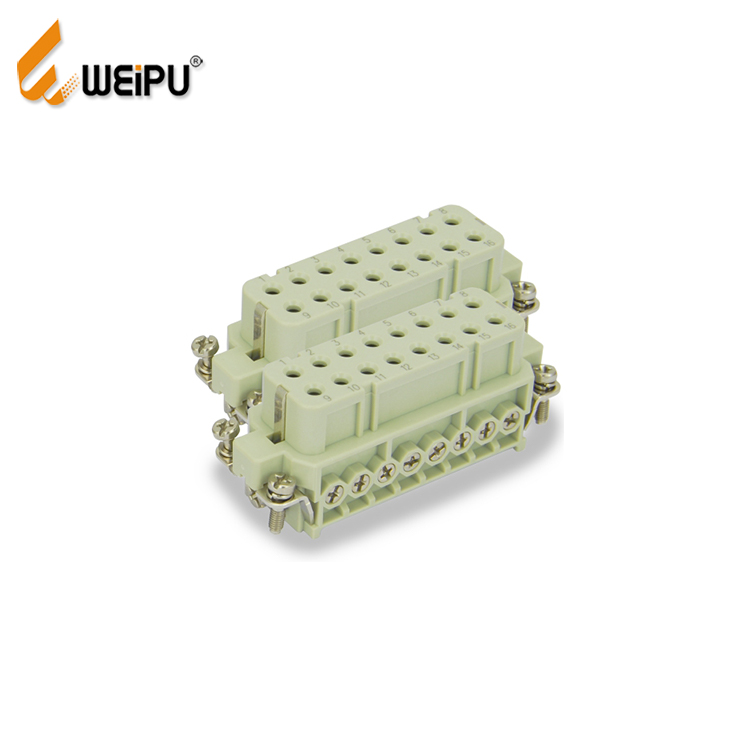

HA-032-MB HA-032-FB Male and Female 16A 250 32+PE Screw Contact Connector

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.

Applied Range:
◆ Wind Energy
◆ Power Systems
◆ Photovoltaic Industry
◆ Engineering Equipment
◆Other Industry Application

Description

Specifications and approvals
international standard: IEC60664-1、IEC61984

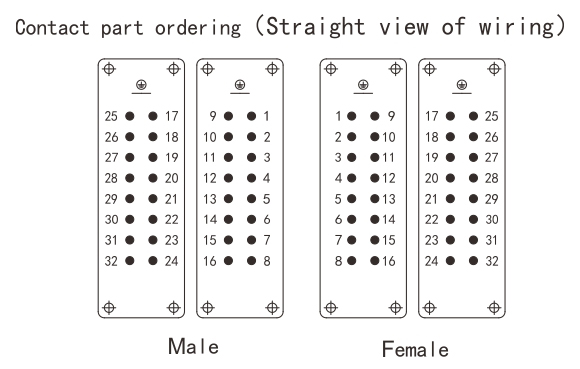

Number of contacts: 3+PE、4+PE、10+pe、16+pe、32+PE

Rated current HA-003,HA-004:10A
HA-010,HA-016,HA-032:16A
Rated voltage HA-003,HA-004:250V/400V
HA-010,HA-016,HA-032:250V
Rated impulse voltage 4kV
Pollution degree 3
Insulation resistance ≥10^10 Ohm
Material(insert)  polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V-0
Rated voltage acc.to UL/CSA 600V
Mating cycles ≥500

Material(contact) Copper Alloy
Surface Silver or Gold Plated
Contact resisance ≤1mΩ

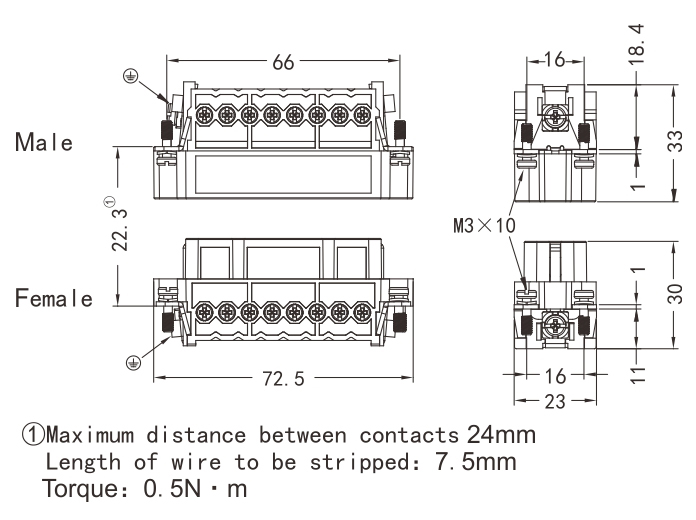

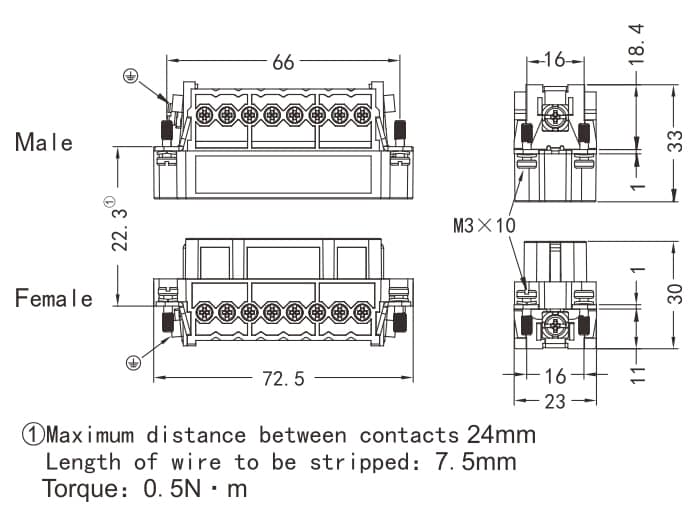

Terminal Screw
Wire gauge 0.75-2.5mm^2
18-14AWG
Stripping length 7.5mm^2

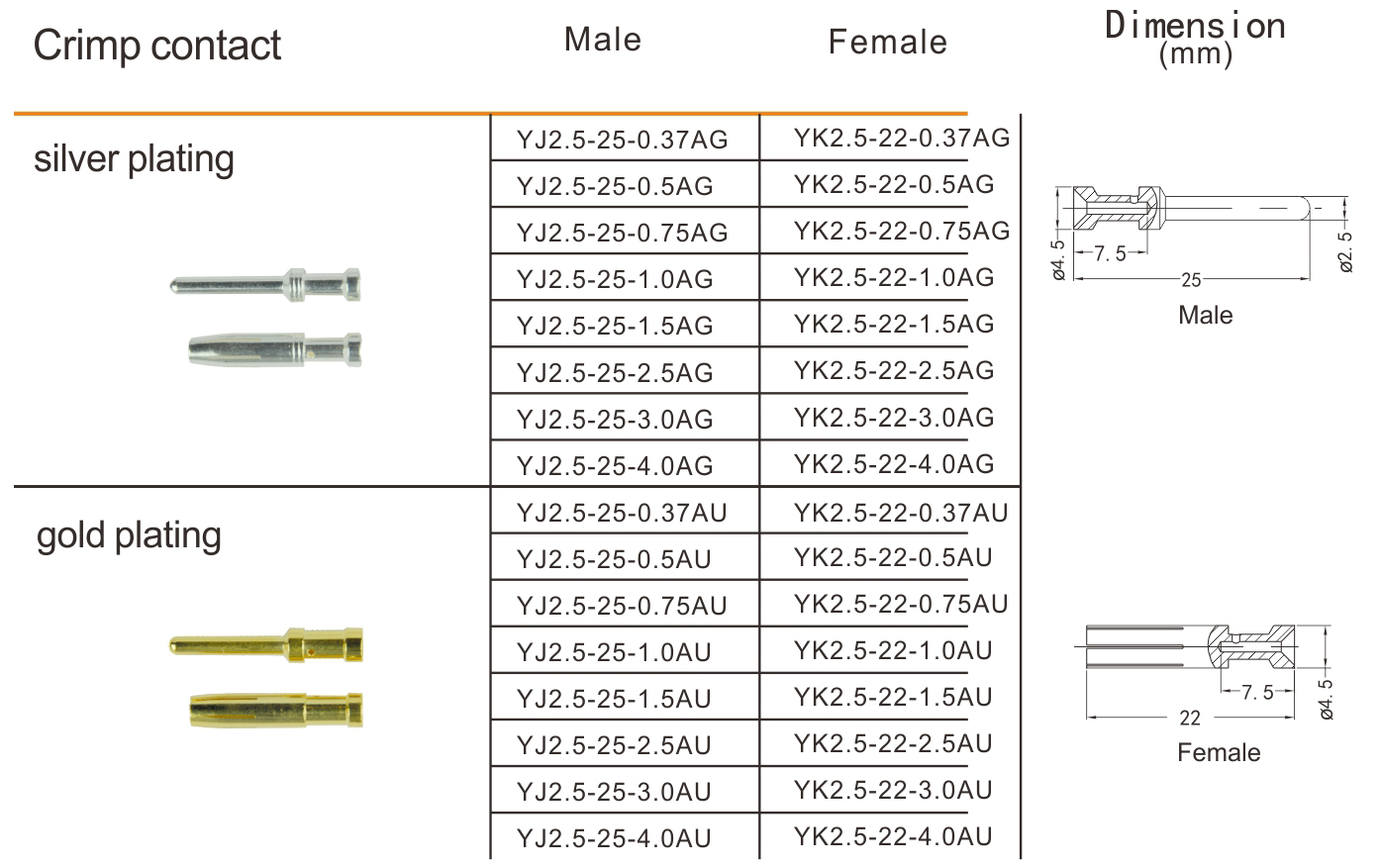

Terminal  Solder,Crimp,Screw
Wire gauge 0.14-4mm^2
26-12AWG
Stripping length 7.5mm^2
