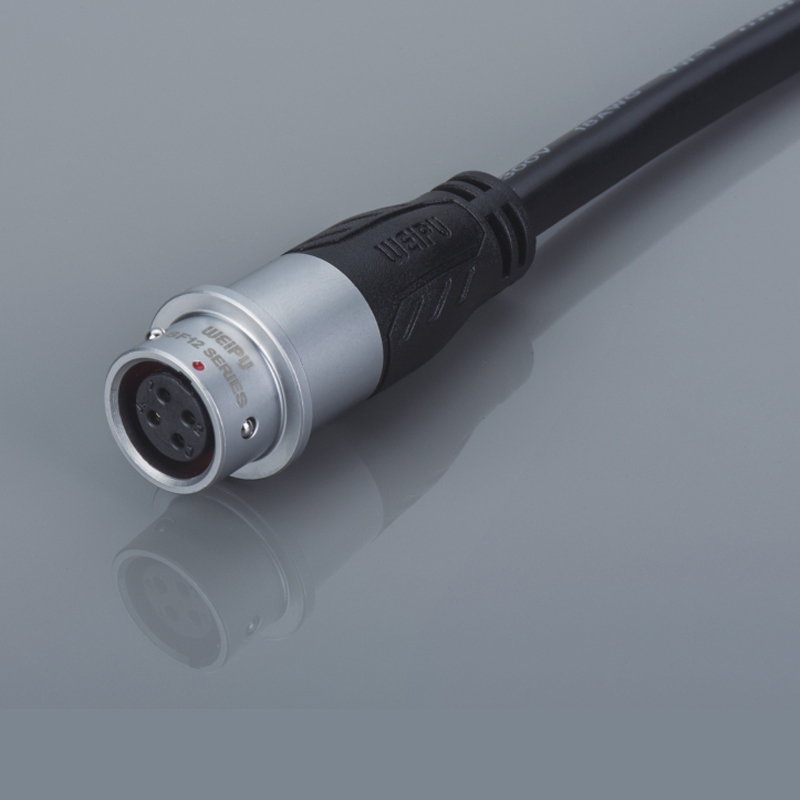

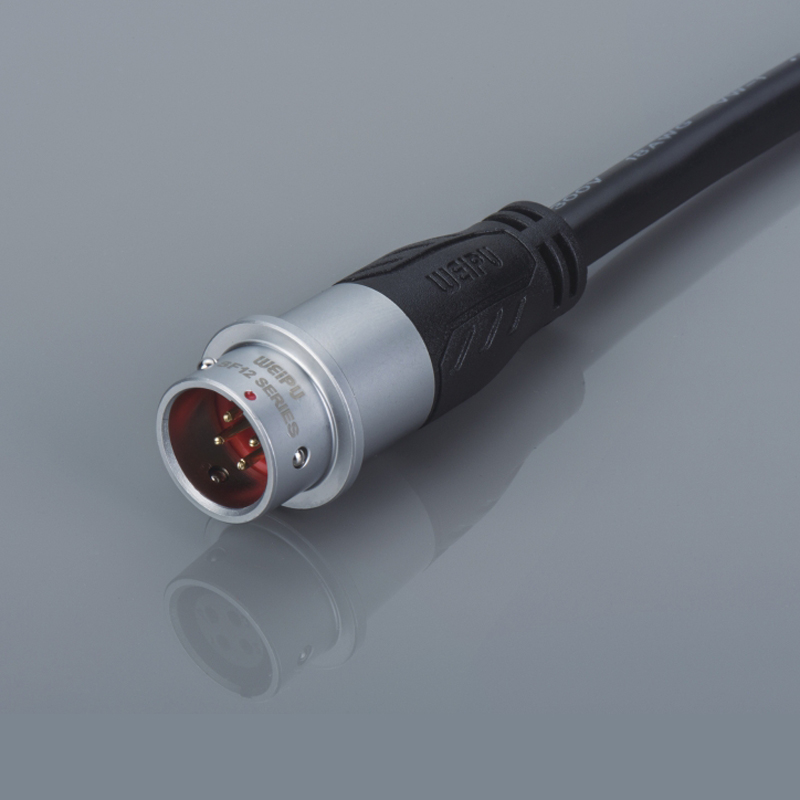

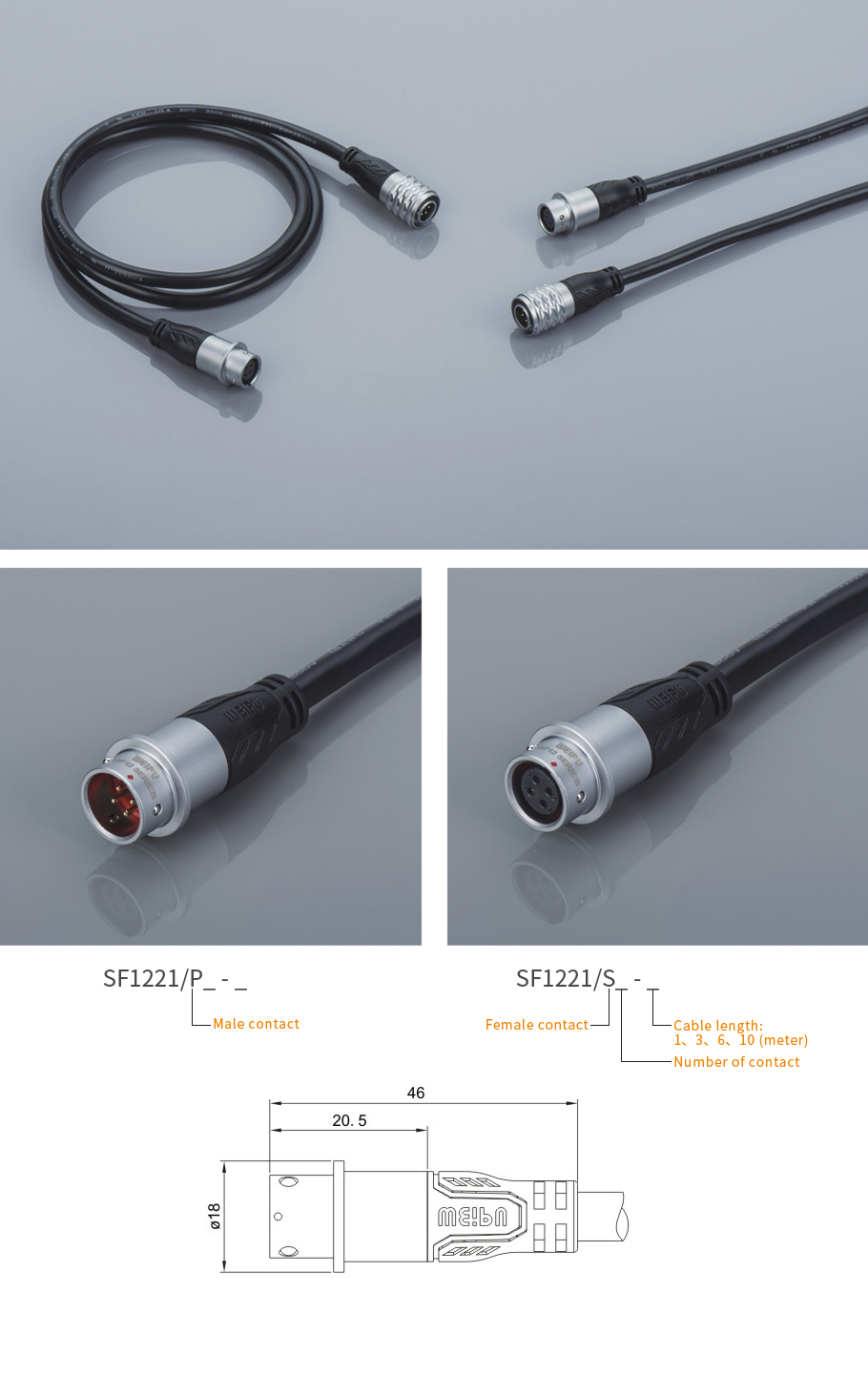

SF1221 Single-Ended Cordsets

Home|Cable Assembly|SF Series Cable Assembly|SF1221 Single-Ended Cordsets

SF1221 Single-Ended Cordsets

Mate with SF1211,SF1212,SF1213,SF1221, SF1224

Description

Material and spec

Product model Patchcord Connector
Coupling Push-pull
Shell material Brass,PVC  fire resistance:UL94 V-0
Insert material PPS    max temperature 260℃
Contact material Brass with gold plating
IP rating IP67
Mating  cycle 500
Temperature range -20°C~+ 85°C
Insulation resistance(MΩ) 2000

    Competitive Price & Quote
