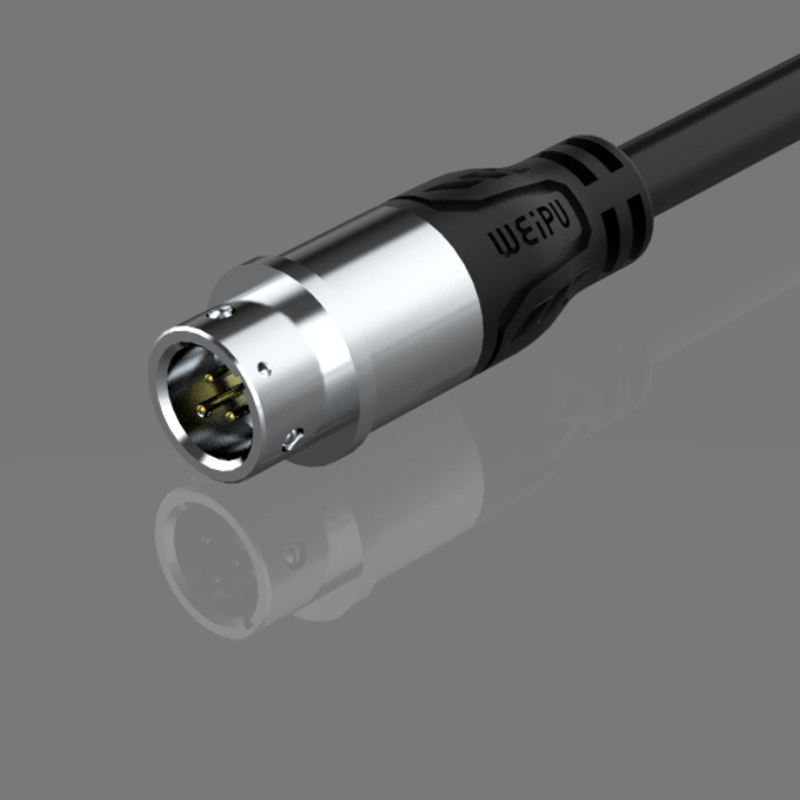

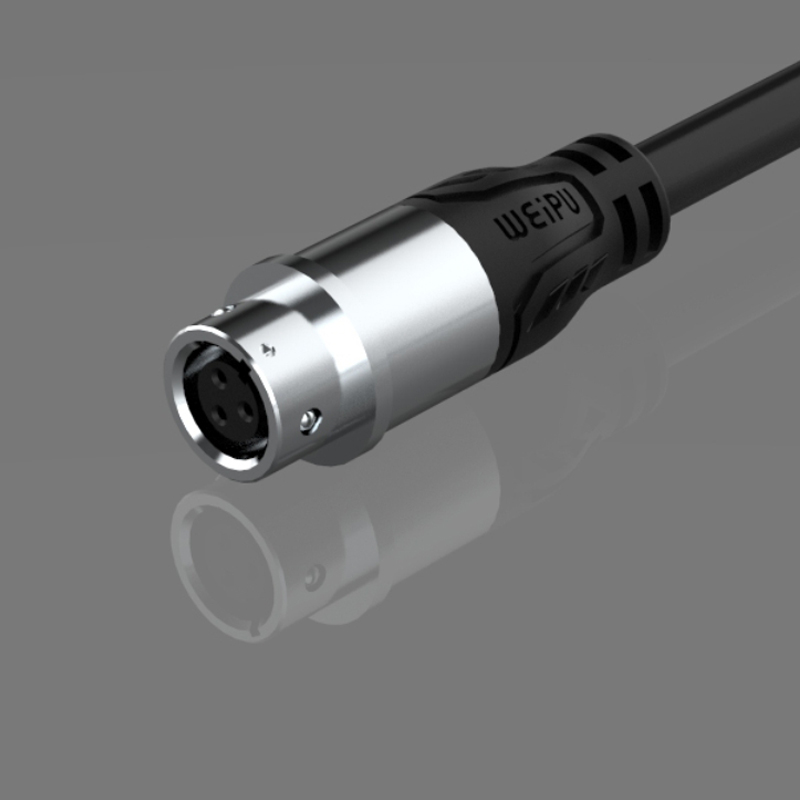

SF621 Single-Ended Cordsets

Mate with SF611,SF612,SF615,SF621,SF624

Description

Product model Patchcord Connector
Coupling Push-pull
Shell material Brass,PVC  fire resistance:UL94 V-0
Insert material PPS    max temperature 260℃
Contact material Brass with gold plating
IP rating IP67
Mating  cycle 500
Temperature range -20°C~+ 85°C
Insulation resistance(MΩ) 2000
