SY1124 Single-Ended Cordsets

Home|Cable Assembly|SY Series Cable Assembly|SY1124 Single-Ended Cordsets

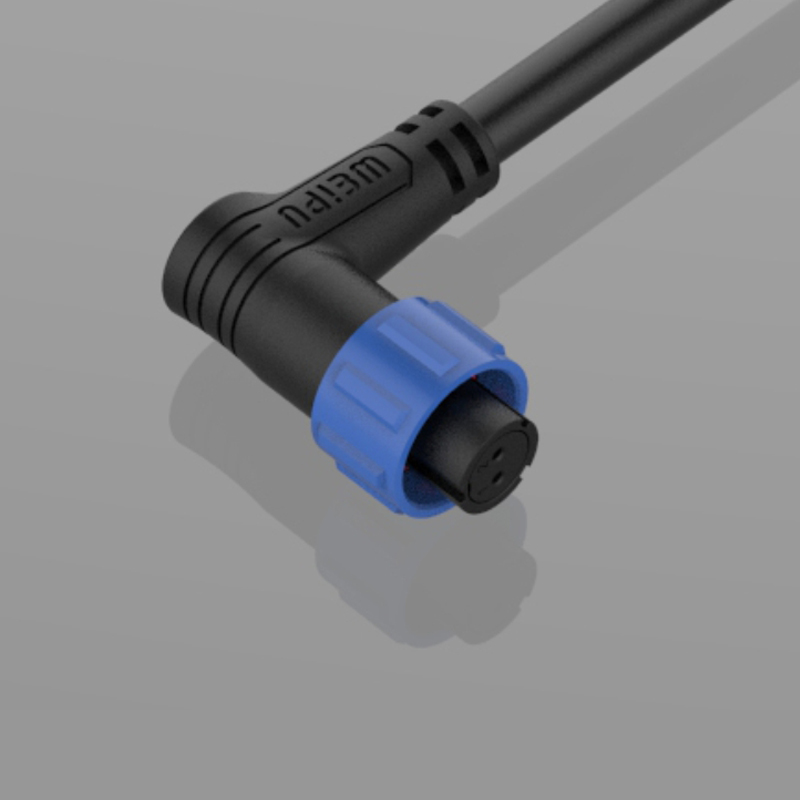

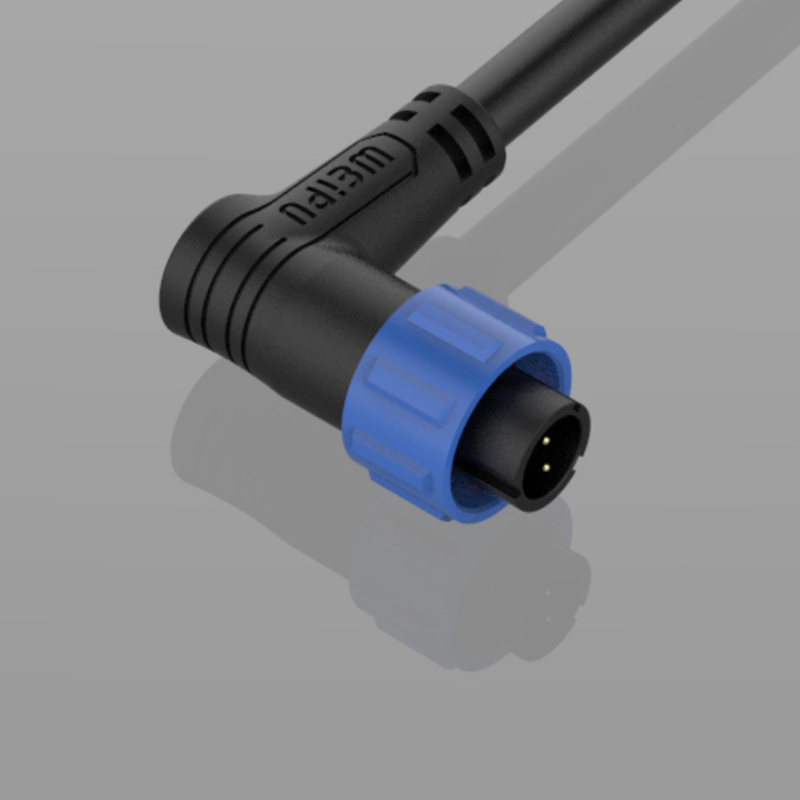

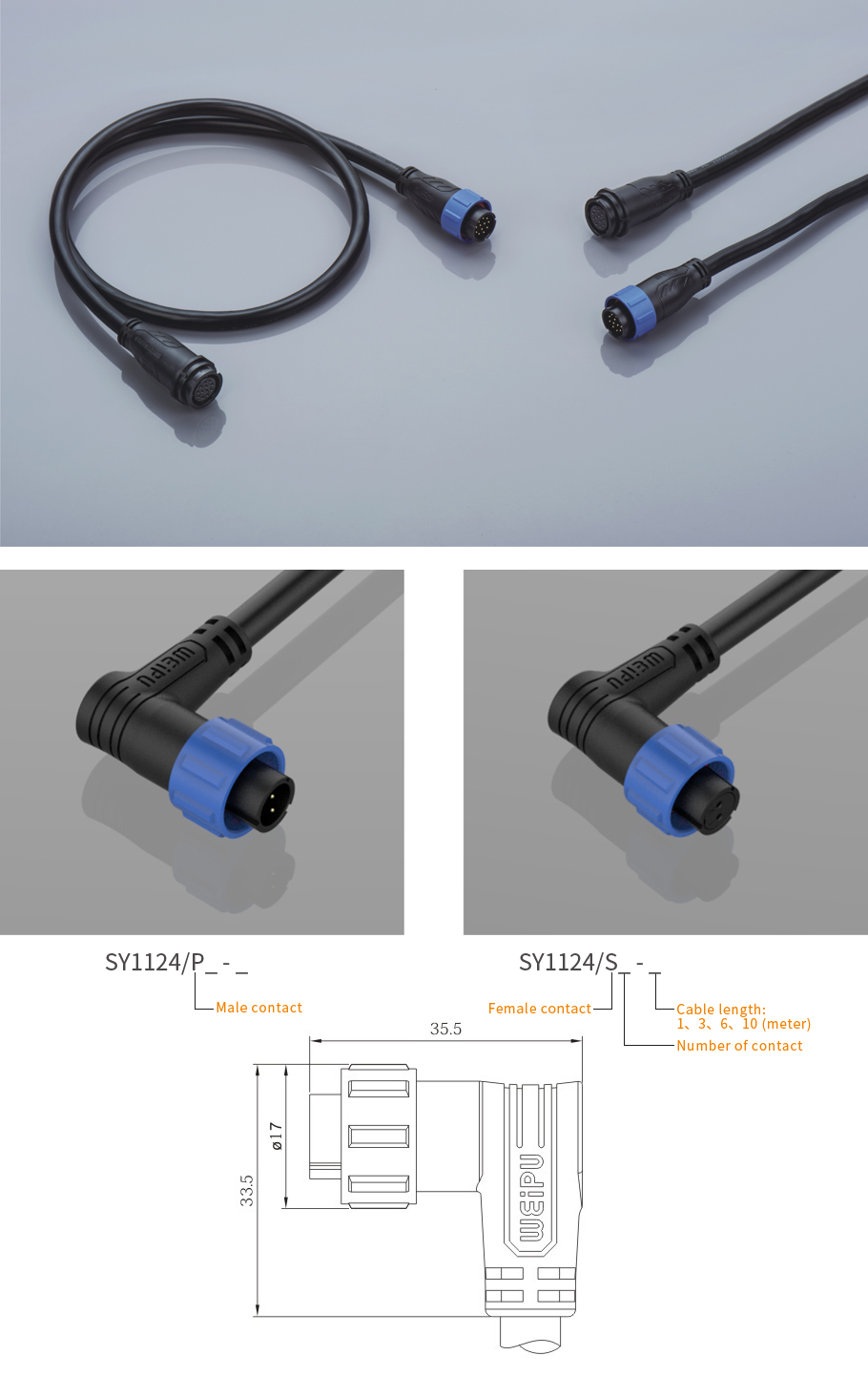

SY1124 Single-Ended Cordsets

Mate with SY1111,SY1112,SY1121,SY1124

Description

Material and spec

Product model Patchcord Connector
Coupling Bayonet
Shell material PC,PVC,Nylon  fire resistance:UL94 V-0
Insert  material PPS    max temperature 260℃
Contact material Brass with gold plating
IP  rating IP67
Mating  cycle 500
Temperature  range -20°C~+ 85°C
Insulation resistance(MΩ) 2000

    Competitive Price & Quote
