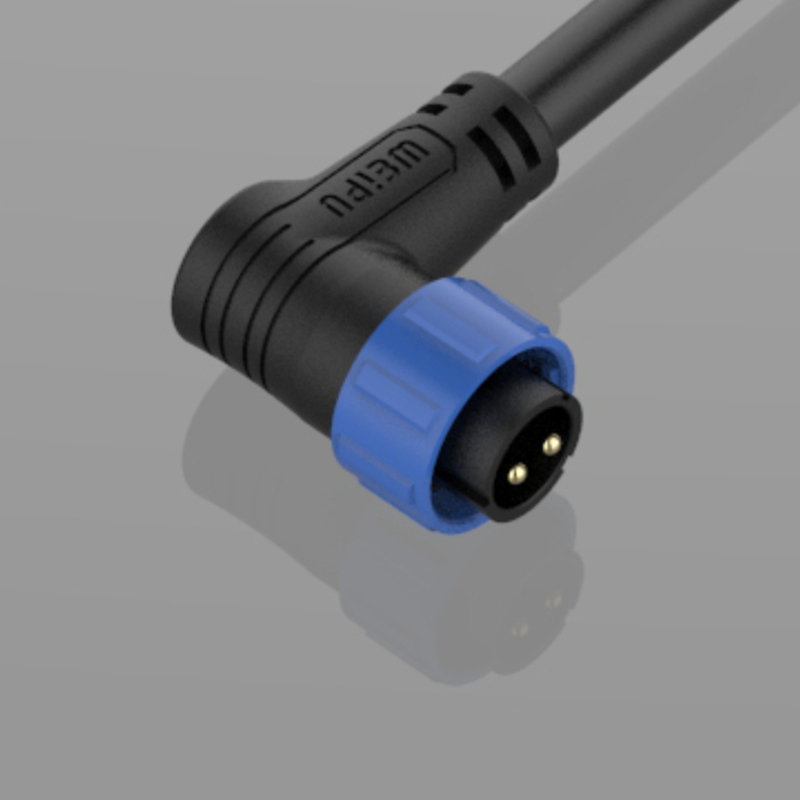

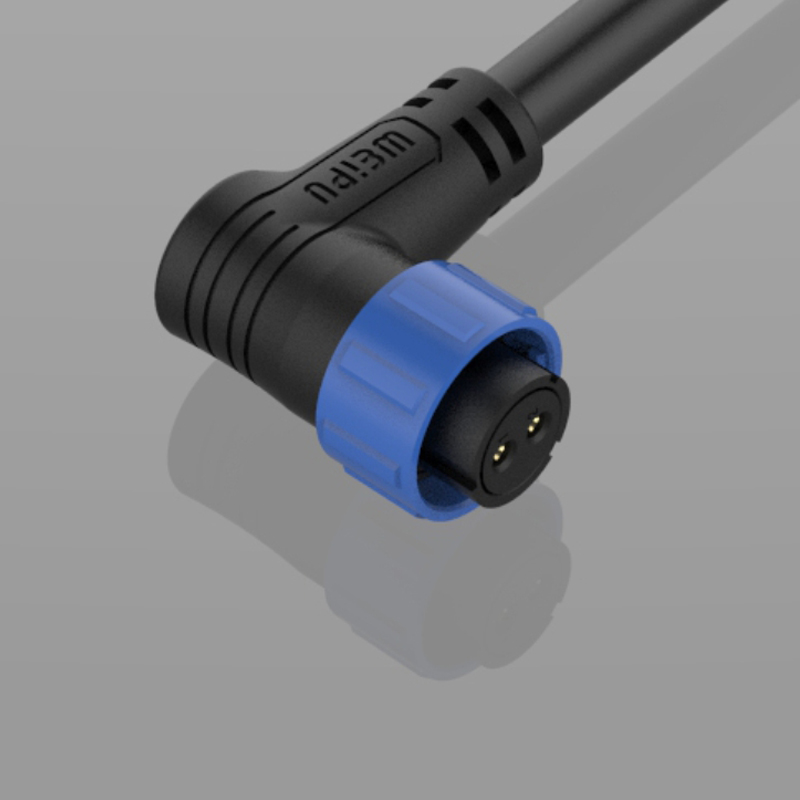

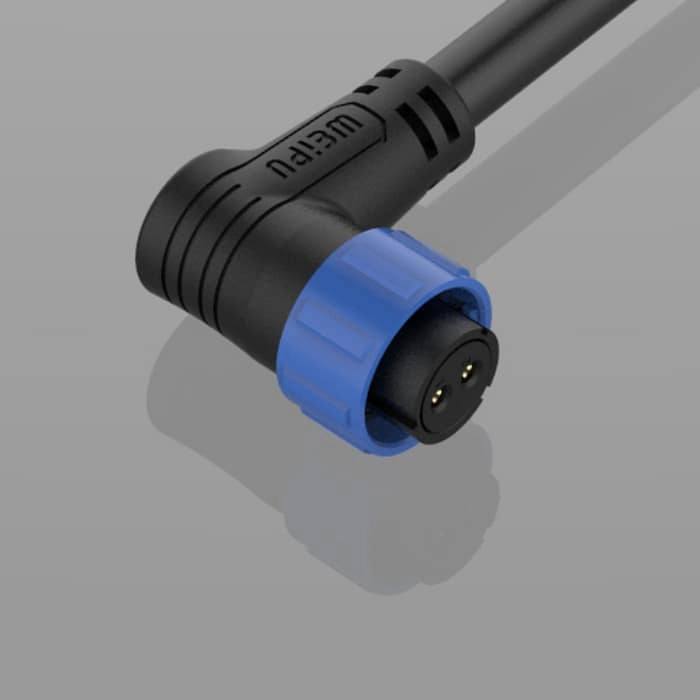

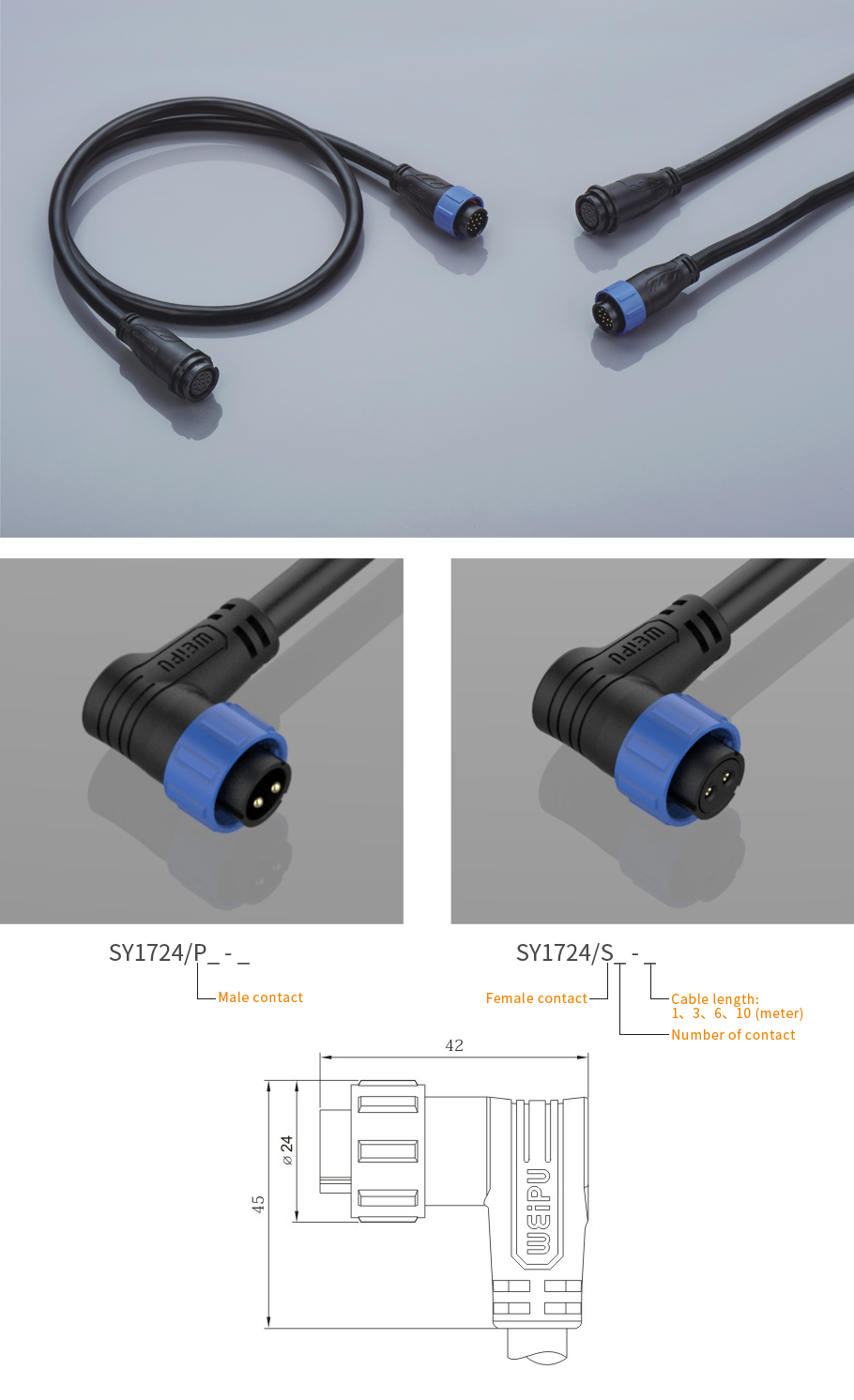

SY1724 Single-Ended Cordsets

Home|Cable Assembly|SY Series Cable Assembly|SY1724 Single-Ended Cordsets

SY1724 Single-Ended Cordsets

Mate with SY1711,SY1712,SY1721,SY17124


Material and spec

Product model Patchcord Connector
Coupling Bayonet
Shell material PC,PVC,Nylon  fire resistance:UL94 V-0
Insert  material PPS    max temperature 260℃
Contact material Brass with gold plating
IP  rating IP67
Mating  cycle 500
Temperature  range -20°C~+ 85°C
Insulation resistance(MΩ) 2000
