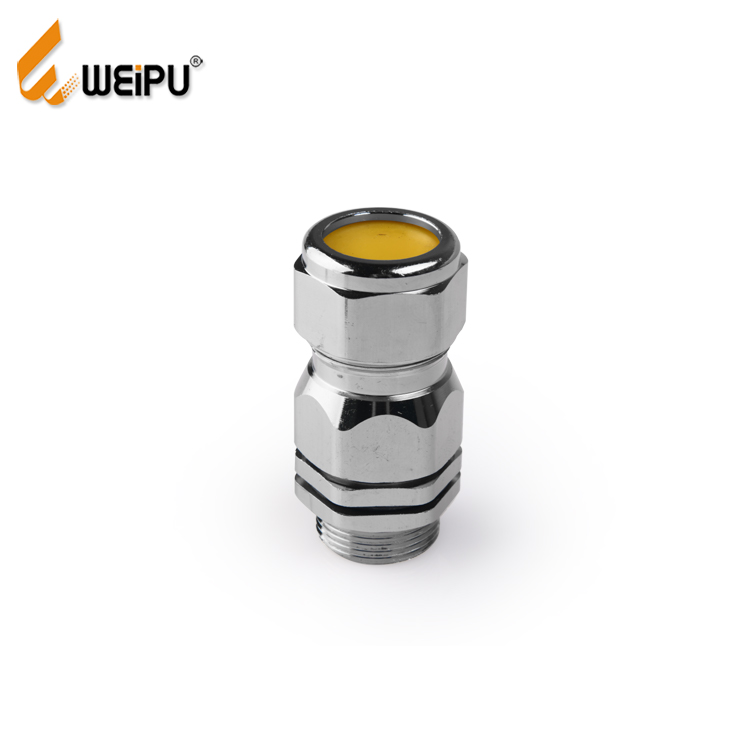

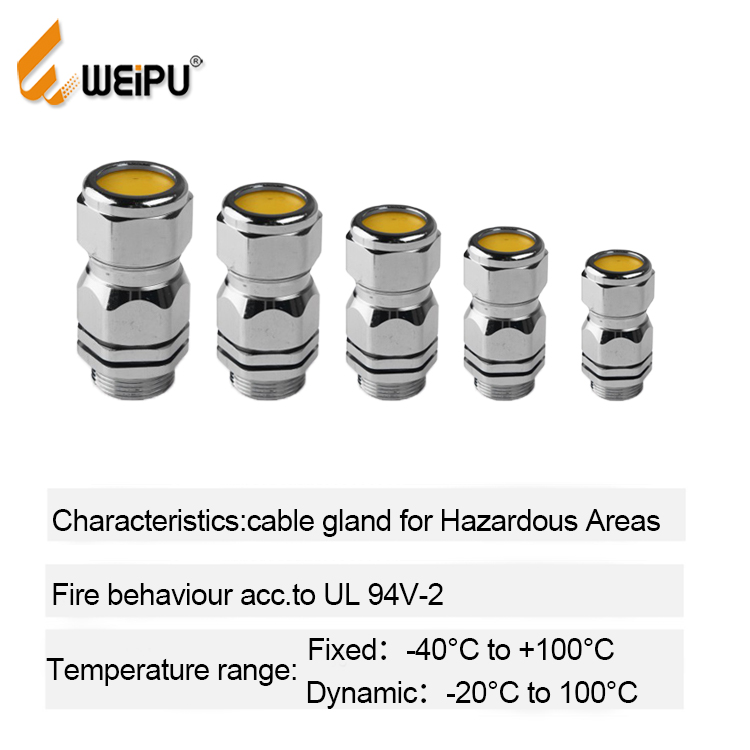

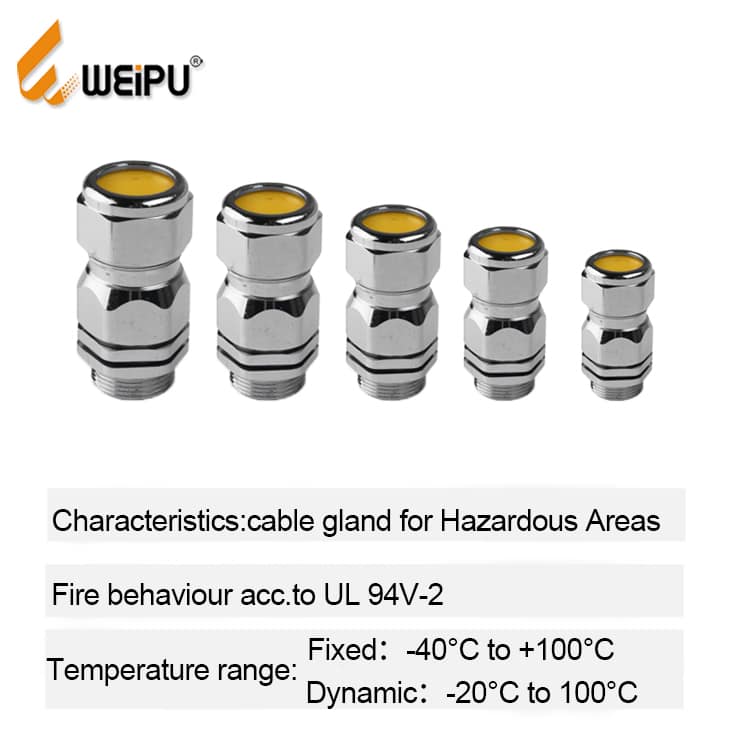

Customization Nicke-plated brass/304 stainless steel cable gland
Cable Gland is a crucial component for effective cable management. We offer a wide range of specifications and models for the Cable Gland, designed to ensure the safety and reliability of cables while effectively protecting them from dust, moisture, and other environmental factors.
Our Cable Gland is crafted from premium materials and carefully engineered to operate steadily in various demanding environments. Whether you are in the industrial machinery, outdoor equipment, or marine sector, our Cable Gland delivers exceptional performance and long-lasting protection, effectively reducing the risks of cable damage or signal interference.
In addition to our existing range, we also provide customization services, tailoring the Cable Gland to meet your specific requirements. Whether it’s special dimensions, materials, or other specific needs, our team is ready to provide you with the best solutions.
For more detailed information or customization inquiries, please feel free to contact us. We look forward to offering you high-quality Cable Gland and excellent service.

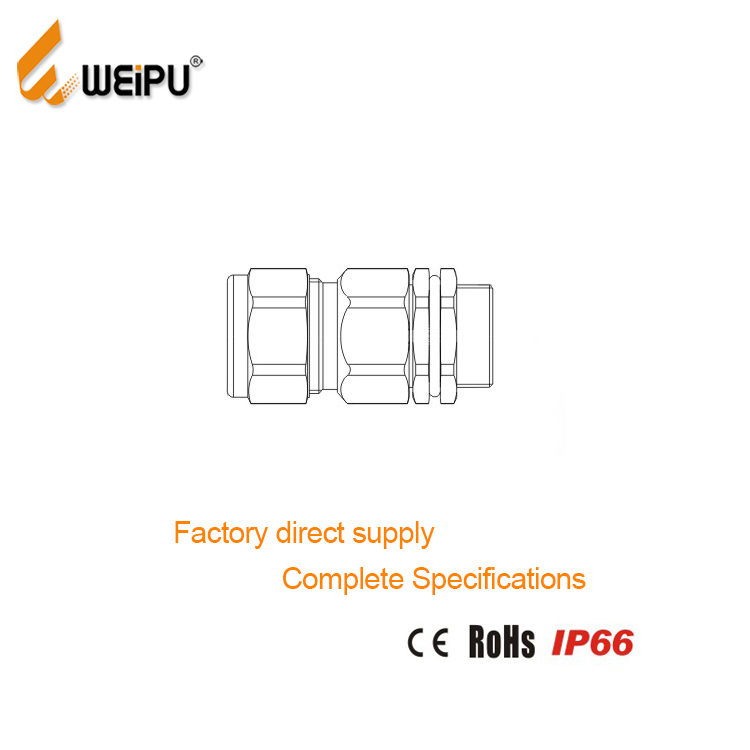

WEIPU Cable glands Applied to cable fixing.

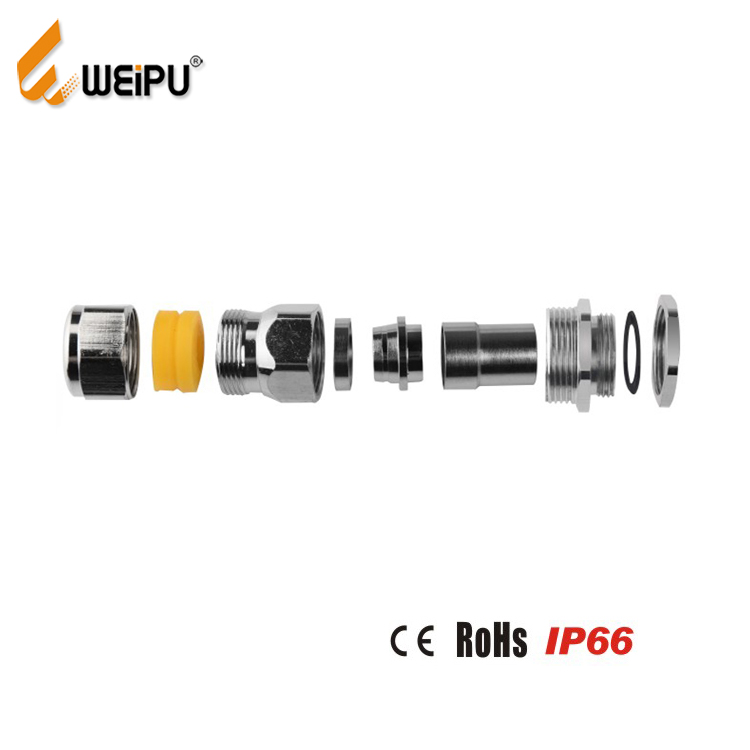

The claws and seals of excellent design, sealing nut have a “click” sound and reopen, can hold the cable firmly and have a wider cable range.
| Other attributes | |||
| Model Number | EXM/EXMS | Temperature | -40°~~100° |
| Size | M16~M110 | Temperature range | “Fixed:-40°C to +100°C/Dynamic:-20°C to 100°C” |
| Material | Nylon | Working Temperture | -40°~100° |
| Material(Body) | Nicke-plated brass/304 stainless steel | Fire Proof Level | V2(UL94) |
| Material(Seal) | Silicone Rubber/Chloroprene Rubber | Ex-protection level | Exd llc Gb |
| Protection rating | IP66 | characteristics | metric/G |
| Metric ISO/EN Thread | |||||
| Model number | Thread Dimension | Outer diameter of cable(mm) |
L1
Tread length (mm) |
L length(mm) | |
| Outlet A | incoming line B | ||||
| EXMS-KZ-G1/2 | G1/2″ | 5-12 | 8-15 | 15 | 67 |
| EXMS-KZ-G3/4 | G3/4″ | 8-17 | 11-20 | 15 | 71 |
| EXMS-KZ-G1 | G1″ | 11-22 | 14-27 | 17 | 76 |
| EXMS-KZ-G1 1/4 | G1 1/4″ | 14-28 | 19-33 | 17 | 76 |
| EXMS-KZ-G1 12 | G1 1/2″ | 16-33 | 22-40 | 17 | 94 |
| EXMS-KZ-G2 | G2″ | 29-43 | 29-50 | 17 | 98 |
| EXMS-KZ-G2 1/2 | G2 1/2″ | 38-57 | 35-63 | 17 | 112 |
| EXMS-KZ-G3 | G3″ | 38-72 | 41-77 | 18 | 126 |
| EXMS-KZ-G4 | G4″ | 48-94 | 61-104 | 18 | 128 |
| Metric ISO/EN Thread（Stainless steel） | |||||
| Model number | Thread Dimension | Outer diameter of cable(mm) |
L1
Tread length (mm) |
L
length (mm) |
|
| Outlet A | incoming line B | ||||
| EXM-KZ-G1/2 | G1/2″ | 5-12 | 8-15 | 15 | 67 |
| EXM-KZ-G3/4 | G3/4“ | 8-17 | 11-20 | 15 | 71 |
| EXM-KZ-G1 | G3/4“ | 11-22 | 14-27 | 17 | 76 |
| EXM-KZ-G1 1/4 | G1 1/4″ | 14-28 | 19-33 | 17 | 76 |
| EXM-KZ-G1 1/2 | G1 1/2″ | 16-33 | 22-40 | 17 | 94 |
| EXM-KZ-G2 | G2″ | 29-43 | 29-50 | 17 | 98 |
| EXM-KZ-G2 1/2 | G2 1/2″ | 38-57 | 35-63 | 17 | 112 |
| EXM-KZ-G3 | G3″ | 38-72 | 41-77 | 18 | 126 |
| EXM-KZ-G4 | G4″ | 48-94 | 61-104 | 18 | 128 |
| Metric Thread（Stainless steel） | |||||
| Model number | Thread Dimension | Outer diameter of cable(mm) |
L1
Tread length (mm) |
L length (mm) | |
| Outlet A | incoming line B | ||||
| EXMS-KZ-M16 | M16X1.5 | 5-8 | 7-15 | 15 | 67 |
| EXMS-KZ-M20 | M20x1.5 | 5-12 | 8-15 | 15 | 67 |
| EXMS-KZ-M25 | M25x1.5 | 8-17 | 11-20 | 15 | 71 |
| EXMS-KZ-M32 | M32x1.5 | 11-22 | 14-27 | 17 | 76 |
| EXMS-KZ-M40 | M40x1.5 | 14-28 | 19-33 | 17 | 76 |
| EXMS-KZ-M50 | M50X1.5 | 16-33 | 22-40 | 17 | 94 |
| EXMS-KZ-M63 | M63x1.5 | 29-43 | 29-50 | 17 | 98 |
| EXMS-KZ-M75 | M75x1.5 | 38-57 | 35-63 | 17 | 112 |
| EXMS-KZ-M85 | M85x1.5 | 38-72 | 41-77 | 18 | 114 |
| EXMS-KZ-M90 | M90x1.5 | 38-72 | 41-77 | 18 | 126 |
| EXMS-KZ-M100 | M100x1.5 | 48-83 | 55-90 | 18 | 126 |
| EXMS-KZ-M110 | M110X1.5 | 48-94 | 61-104 | 18 | 128 |
| Metric Thread | |||||
| Model number | Thread Dimension | Outer diameter of cable(mm) |
L1
Tread length (mm) |
L length (mm) | |
| Outlet A | incoming line B | ||||
| EXM-KZ-M16 | M16x1.5 | 5-8 | 7-15 | 15 | 67 |
| EXM-KZ-M20 | M20x1.5 | 5-12 | 8-15 | 15 | 67 |
| EXM-KZ-M25 | M25x1.5 | 8-17 | 11-20 | 15 | 71 |
| EXM-KZ-M32 | M32x1.5 | 11-22 | 14-27 | 17 | 76 |
| EXM-KZ-M40 | M40x1.5 | 14-28 | 19-33 | 17 | 76 |
| EXM-KZ-M50 | M50x1.5 | 16-33 | 22-40 | 17 | 94 |
| EXM-KZ-M63 | M63x1.5 | 29-43 | 29-50 | 17 | 98 |
| EXM-KZ-M75 | M75x1.5 | 38-57 | 35-63 | 17 | 112 |
| EXM-KZ-M85 | M85x1.5 | 38-72 | 41-77 | 18 | 114 |
| EXM-KZ-M90 | M90x1.5 | 38-72 | 41-77 | 18 | 126 |
| EXM-KZ-M100 | M100x1.5 | 48-83 | 55-90 | 18 | 126 |
| EXM-KZ-M110 | M110X1.5 | 48-94 | 61-104 | 18 | 128 |
