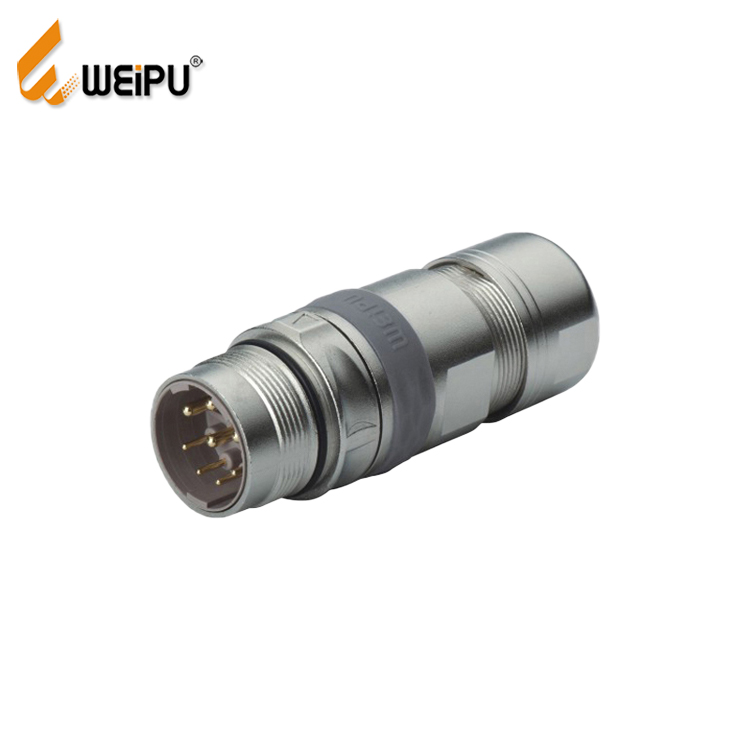

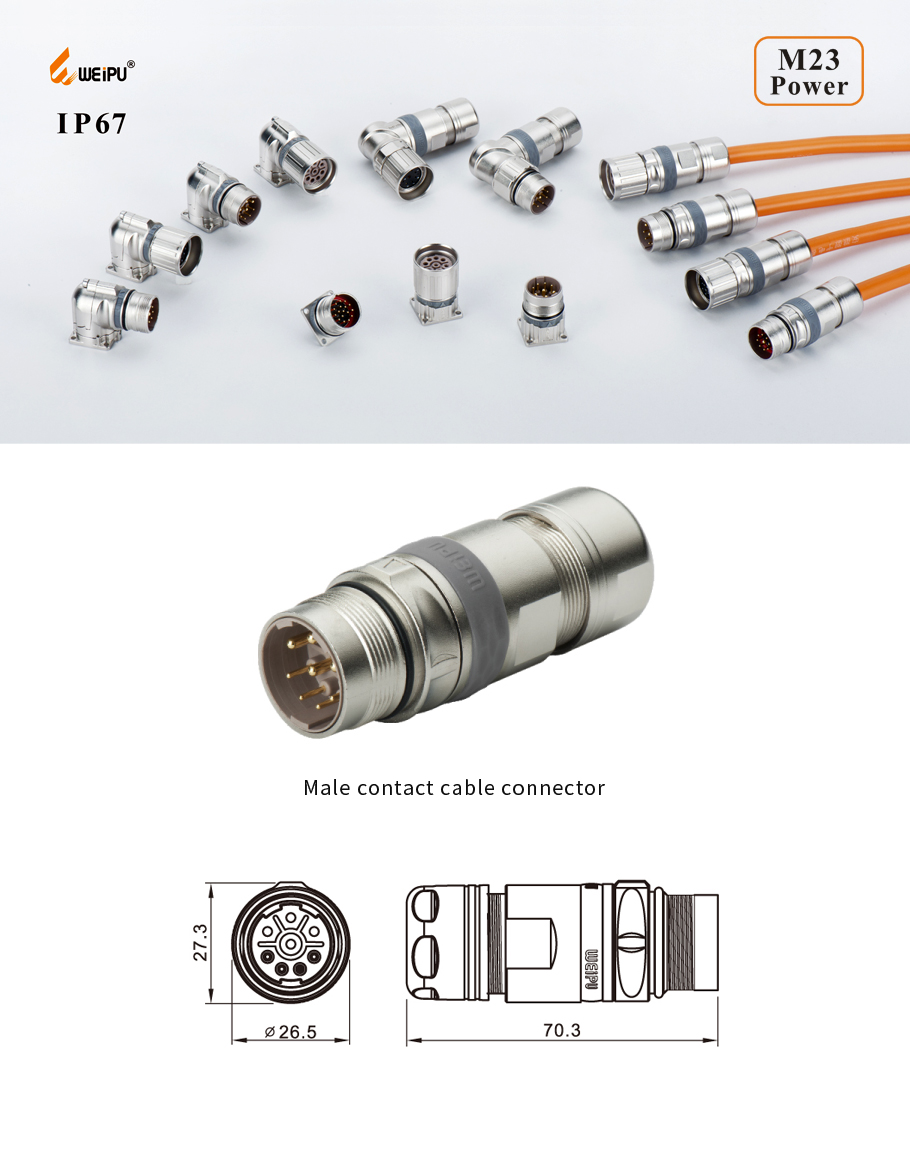

M23DJ_TK Male contact Cable connector

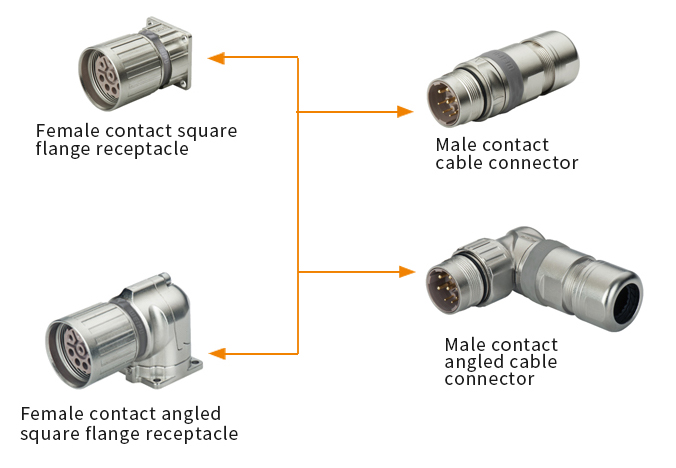

Mate with M23DK_TK,M23DK_Z,M23DK_TL,M23DK_ZL

Categories: ,


Shell material Zinc alloy with nickel plating
Contact material Brass with gold plating
Insert material PA66
Insulation resistance >1013mΩ

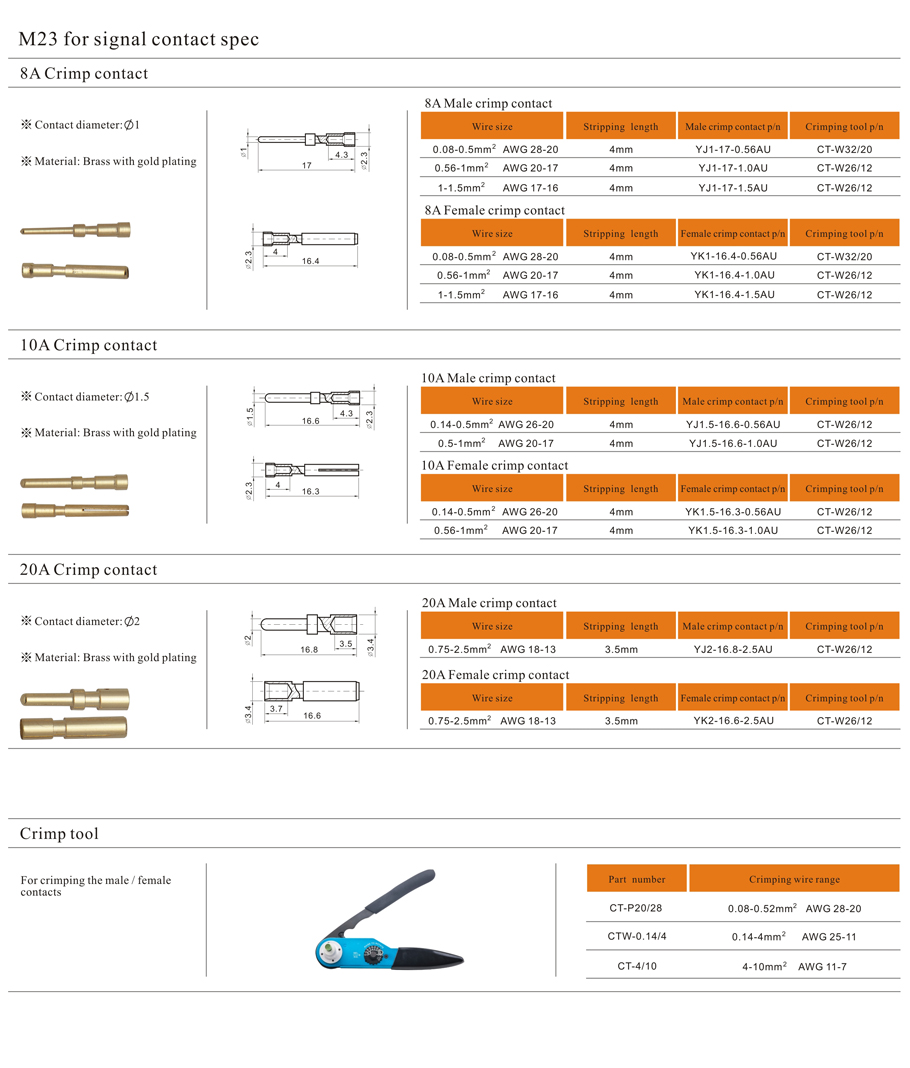

Termination Crimp
Temperature range -40°C〜+ 125°C
Mating cycle 1000
Cable outer diameter range I: 4-8mm (Special order)
II: 8-13mm (Standard)
III: 12-17mm (Special order)
IP rating IP67
Coupling Threaded coupling

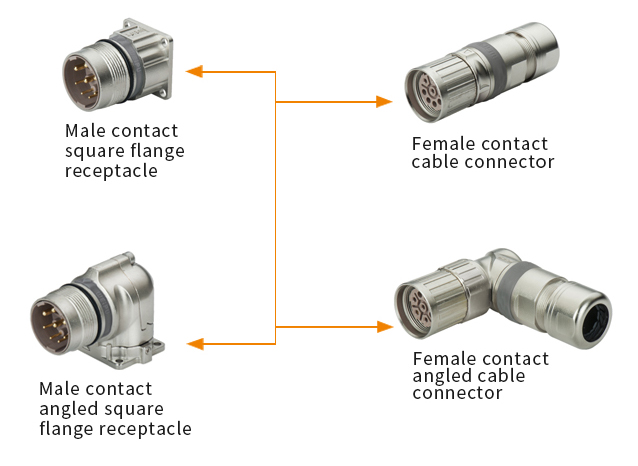

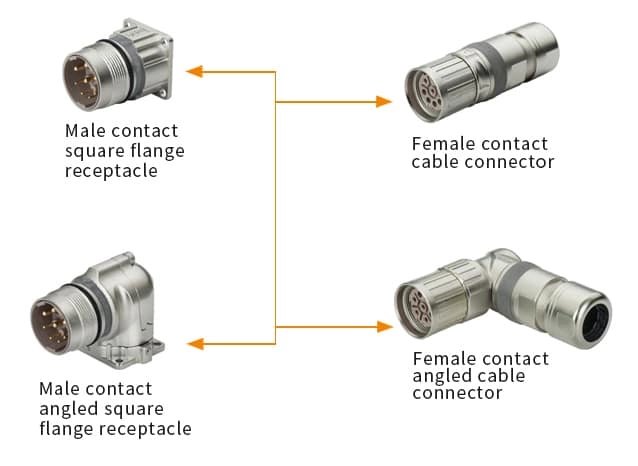

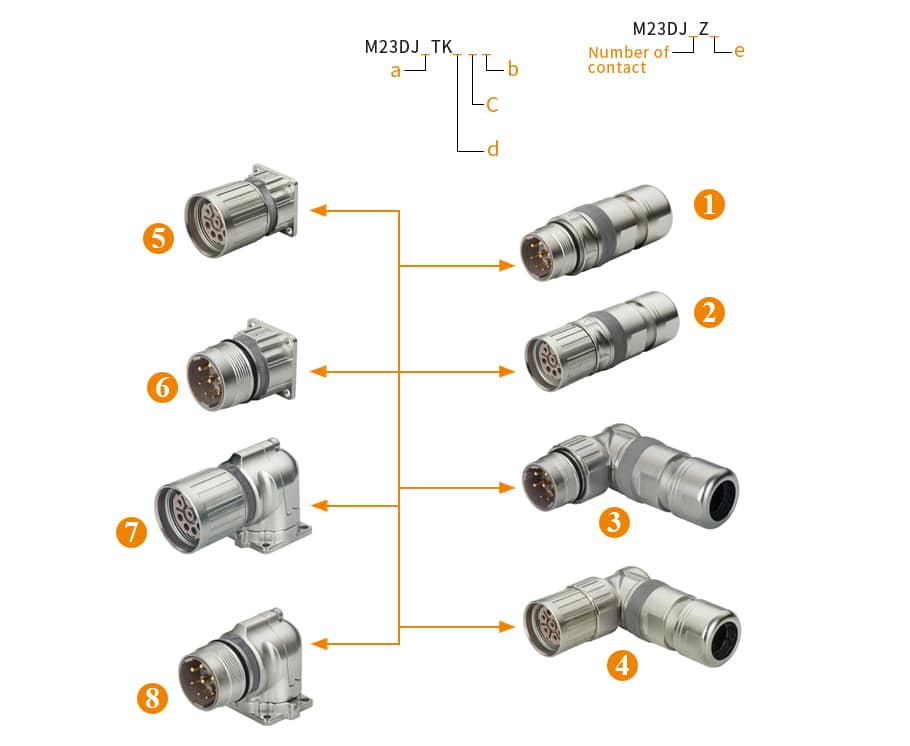

M23Power series configuration table(list)
01、Male contact cable connector a、Number of contact
02、Female contact cable connector  b、Colour Gray:  GY (Standard), Black:BK (Special order), Orange:OG (Special order),   Blue:BU (Special order), Green:GN (Special order), Purple:PL (Special order)
03、Male contact angled cable connector
04、Female contact angled cable connector c、Cable outer diameter range  Ⅰ: 4-8mm(Special order),Ⅱ: 8-13mm(Standard),Ⅲ: 12-17mm(Special order)
05、Female contact square flange receptacle d、S:Shield    U:Unshielded
06、Male contact square flange receptacle e、Coded chuck    N: Gray (Standard), S: Black (Special order),H: Orange (Special order), X: Blue (Special order),Y: Green (Special order),
07、Female contact angled square flange receptacle
08、Male contact angled square flange receptacle
