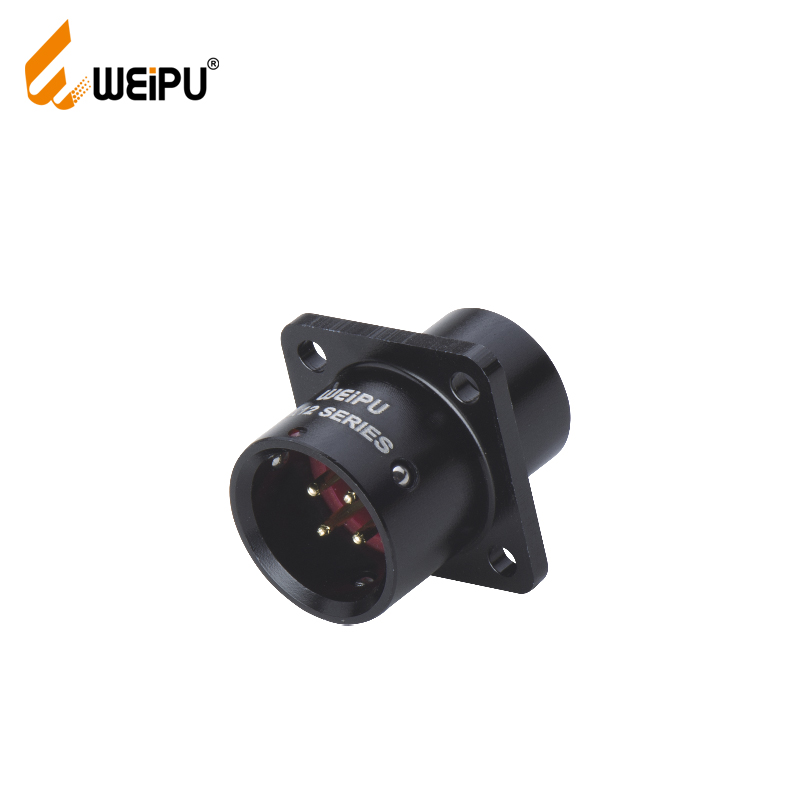

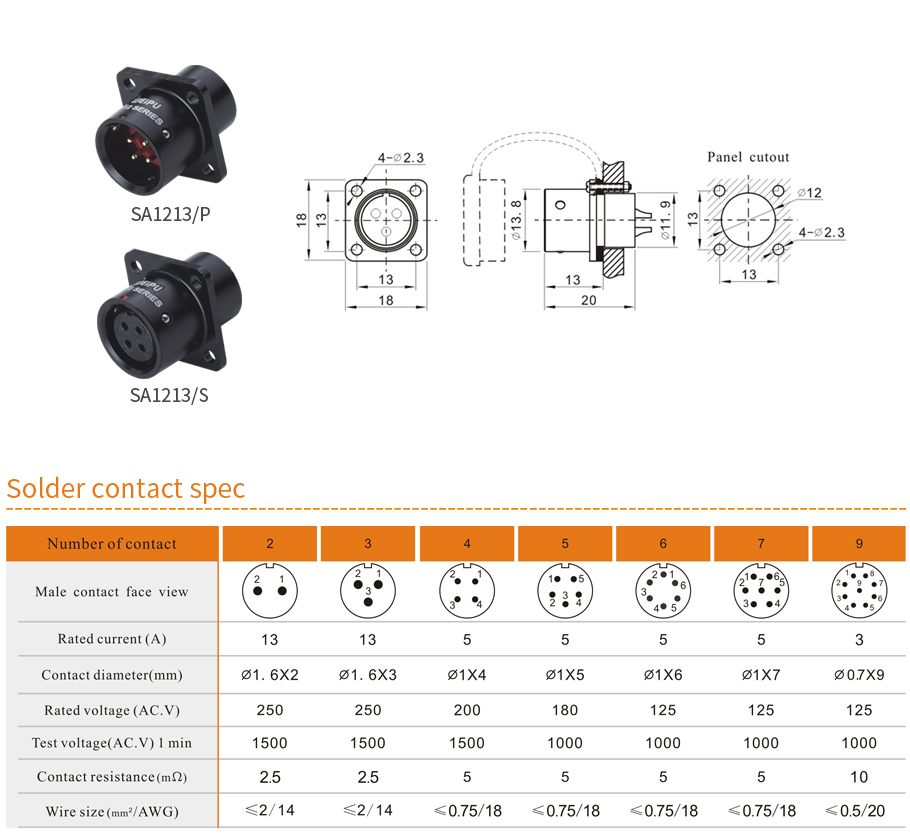

WEIPU SA1213P/S Power Cable Connector IP67

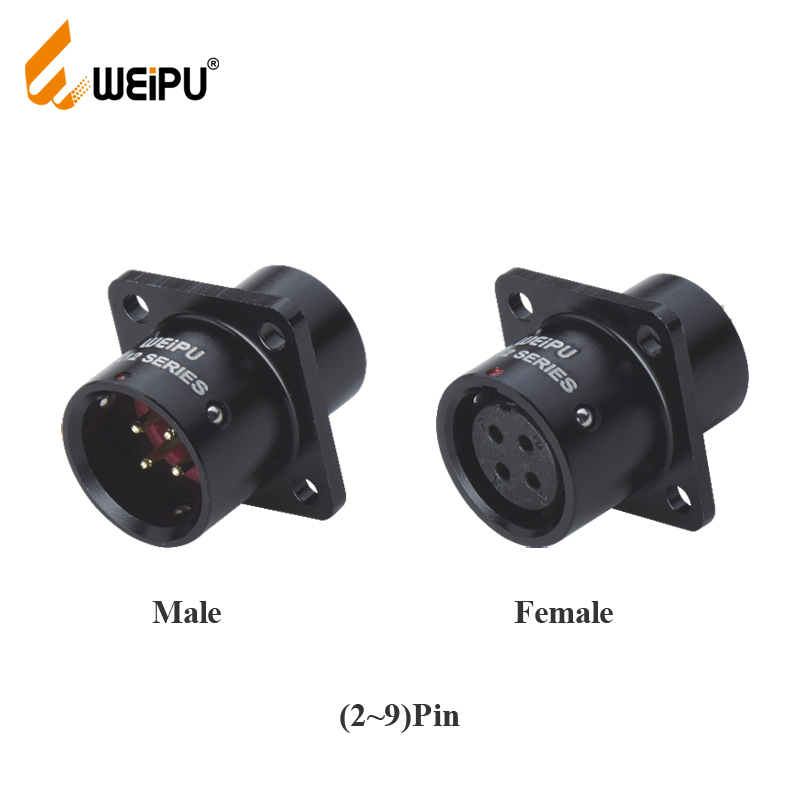

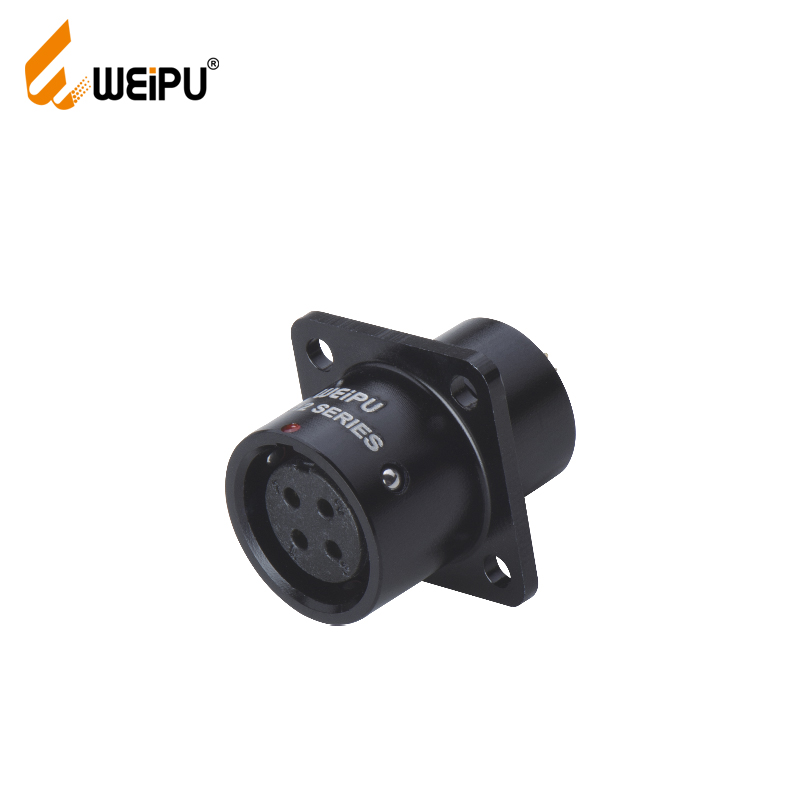

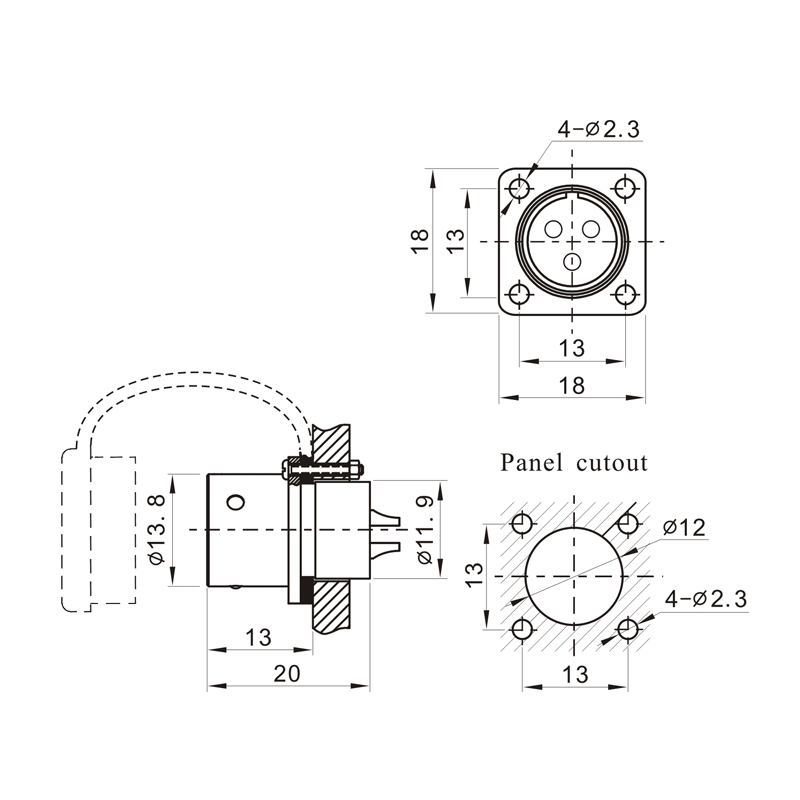

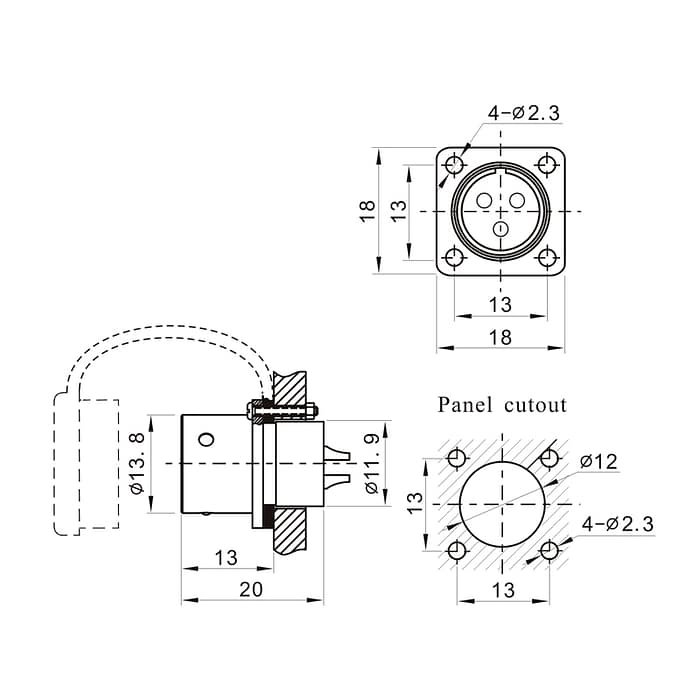

Square flange connector, Mate with SA1210


Coupling Push-pull
Shell material Anodized aluminium
Insert material PPS, max temperature 260 *C
Contact material Brass with gold plating
Termination Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
Crimp: SA16,SA20,SA28
Screw: SA20,SA28
Cable outer diameter range SA20: 13・16mm
SA6: 3.5-4mm     SA12: I: 4-6.5mm(default,no mark),II: 5-8mm
SA8: 4-5mm       SA16:1: 5-8mm (default,no mark),II: 8-l2mm
SA10:4-6.5mm    SA20: 8-12mm
IP rating IP67
Mating cycle 500
Temperature range – 40C~+85C
Insulation resistance 2000 MΩ


01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
★Each side can be male or female contact

SA12 IP67 Series configuration table(list)
01、Cable connector(>SA1210/P_ _ _    >SA1210/S_ _ _) a、Male contact
02、In-line cable connector(>SA1211/P_ _ _    >SA1211/S_ _ _) b、Fmale contact
03、Rear-nut mount(>SA1212/P_ _    >SA1212/S_ _) c、Number of contact
04、Square flange(>SA1213/P_ _    >SA1213/S_ _) d、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)
05、Front-nut mount(>SA1215/P_ _    >SA1215/S_ _) e、Cable outer diameter Ⅰ: 4-6.5mm(default, no mark),Ⅱ: 5-8mm
