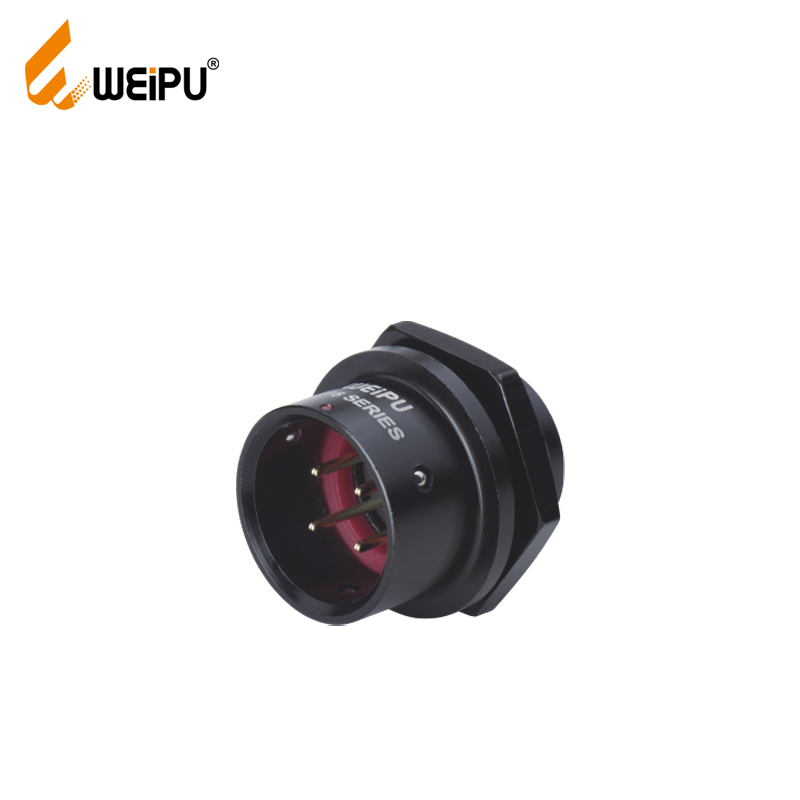

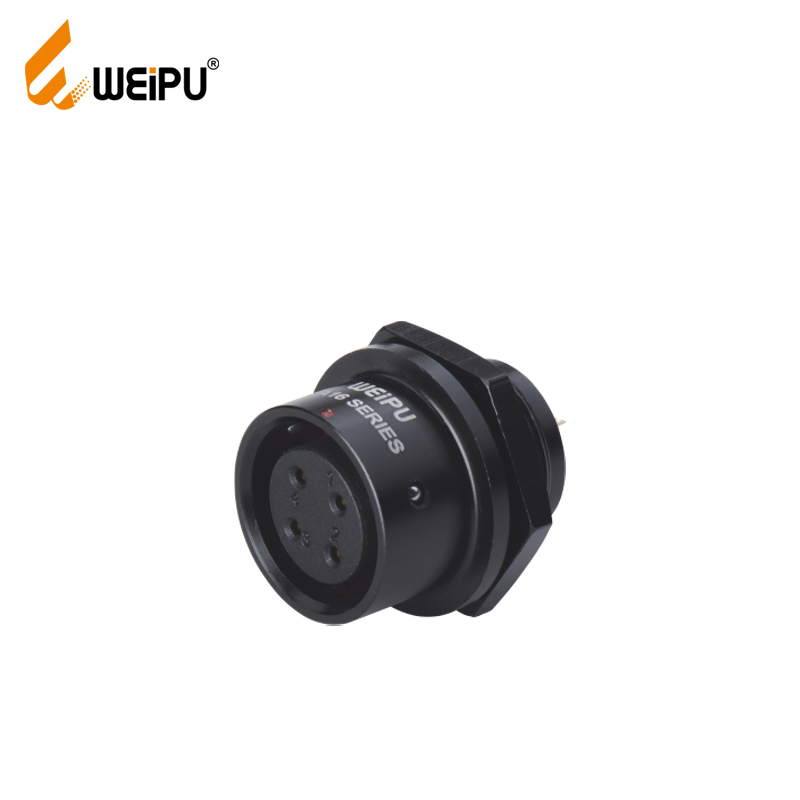

SA1612/P SA1612/S Rear-nut mount IP67

Weipu’s SA series connectors are meticulously crafted for demanding industrial applications. From marine to medical and automation industries, these connectors excel with their robust aluminum alloy construction and IP67 waterproof rating. With Weipu SA series connectors, you can count on reliable performance and seamless connectivity, ensuring uninterrupted operations in harsh environments. Mate with SA1610

Description

Coupling Push-pull
Shell material Anodized aluminium
Insert material PPS, max temperature 260 *C
Contact material Brass with gold plating
Termination Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
Crimp: SA16,SA20,SA28
Screw: SA20,SA28
Cable outer diameter range SA20: 13・16mm
SA6: 3.5-4mm     SA12: I: 4-6.5mm(default,no mark),II: 5-8mm
SA8: 4-5mm       SA16:1: 5-8mm (default,no mark),II: 8-l2mm
SA10:4-6.5mm    SA20: 8-12mm
IP rating IP67
Mating cycle 500
Temperature range – 40C~+85C
Insulation resistance 2000 MΩ



01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
07、Insert

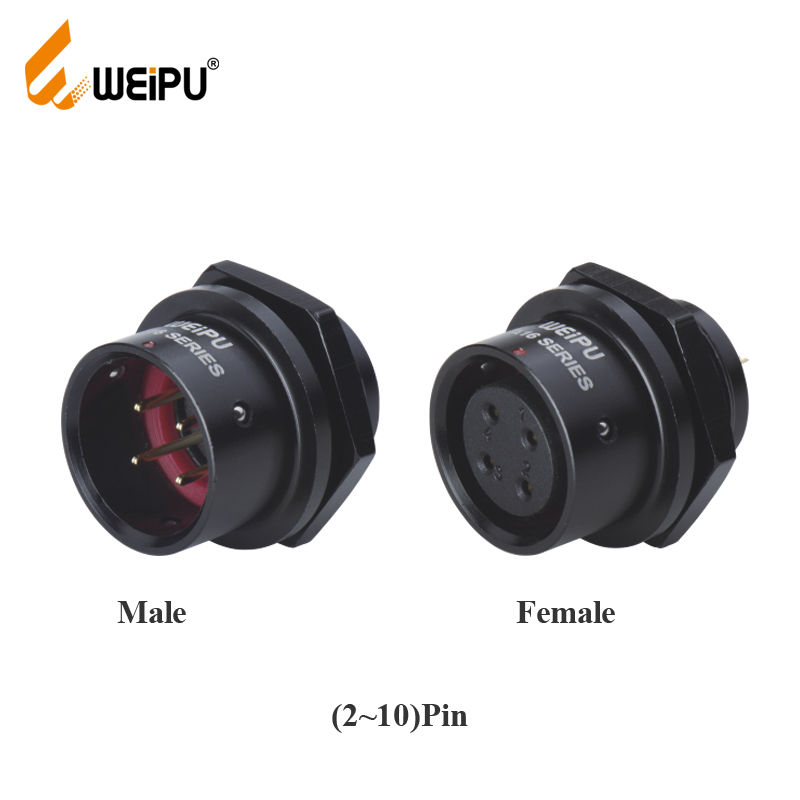

★Each side can be male or female contact

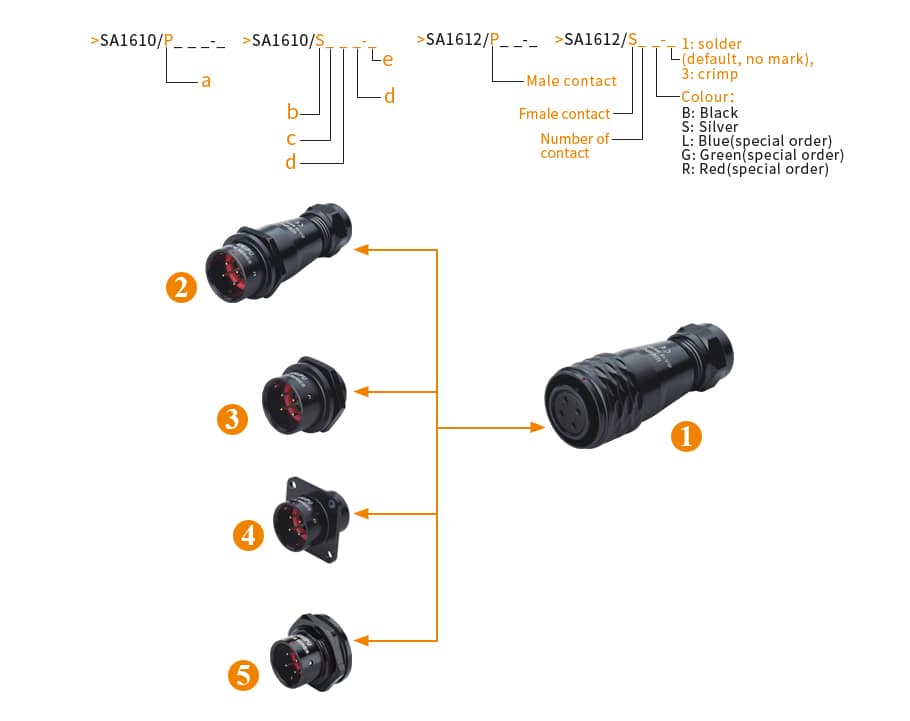

SA16 IP67 Series configuration table(list)
01、Cable connector(>SA1610/P_ _-_    >SA1610/S_ _-_) a、Male contact
02、In-line cable connector(>SA1611/P_ _ _-_    >SA1611/S_ _ _-_) b、Fmale contact
03、Rear-nut mount(>SA1612/P_ _-_    >SA1612/S_ _-_) c、Number of contact
04、Square flange(>SA1613/P_ _-_    >SA1613/S_ _-_) d、Cable outer diameter  I: 5-8mm(default, no mark), II: 8-12mm
05、Front-nut mount(>SA1615/P_ _-_    >SA1615/S_ _-_) e、1: solder(default, no mark), 3: crimp
f、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)
