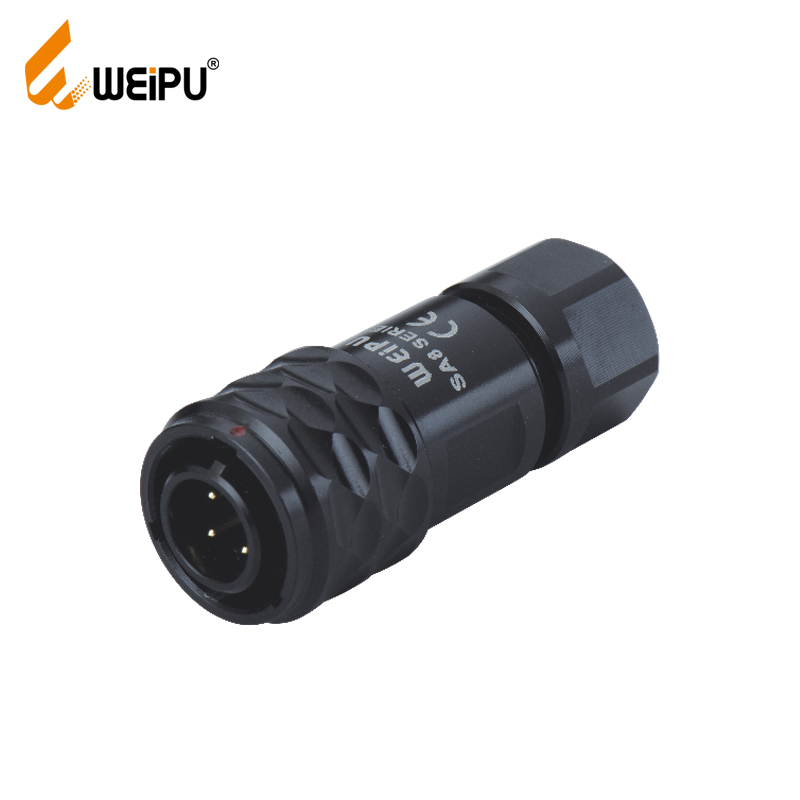

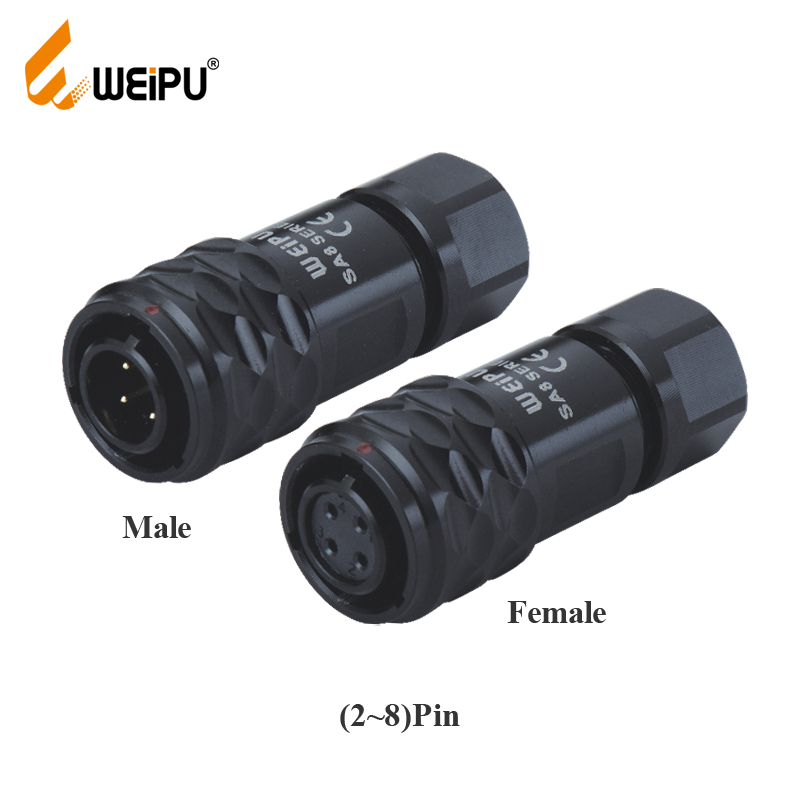

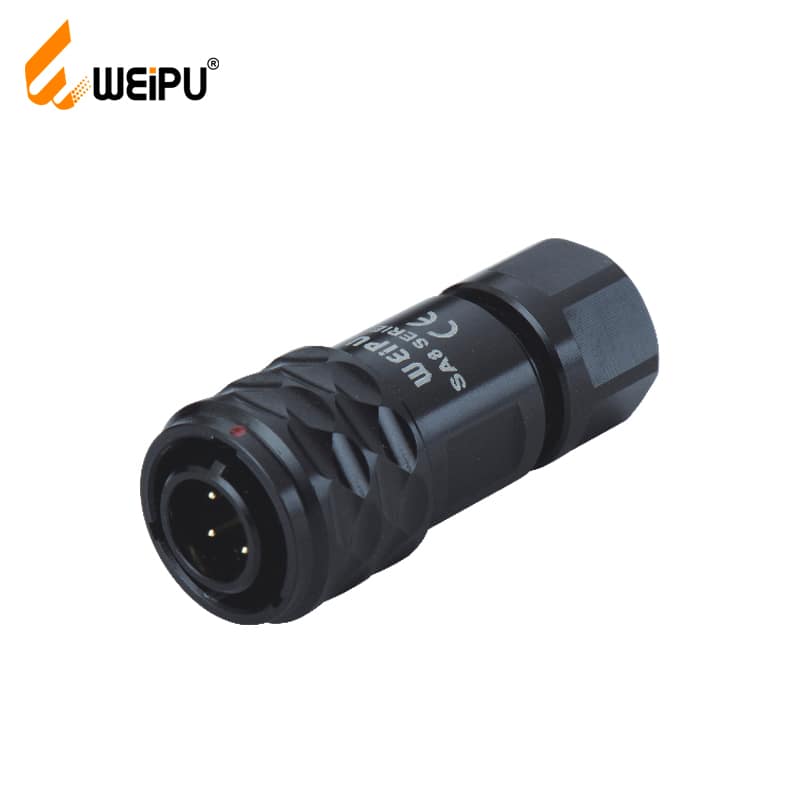

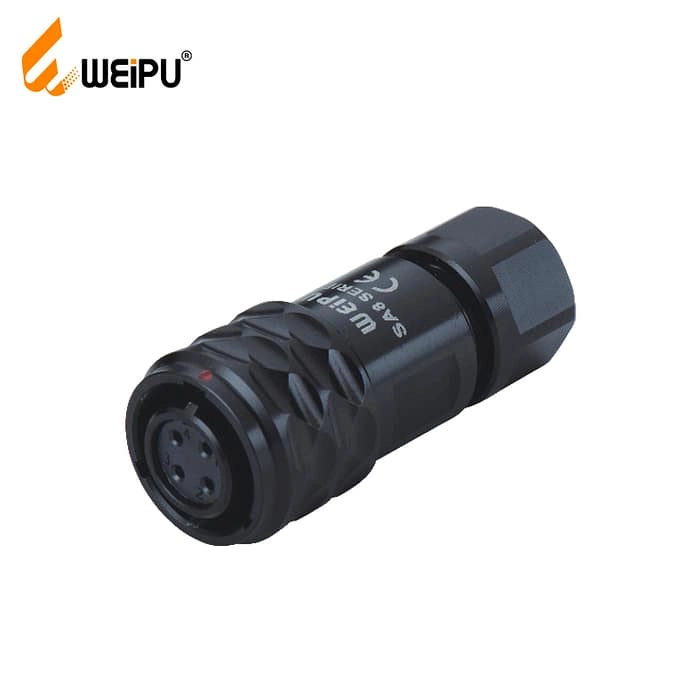

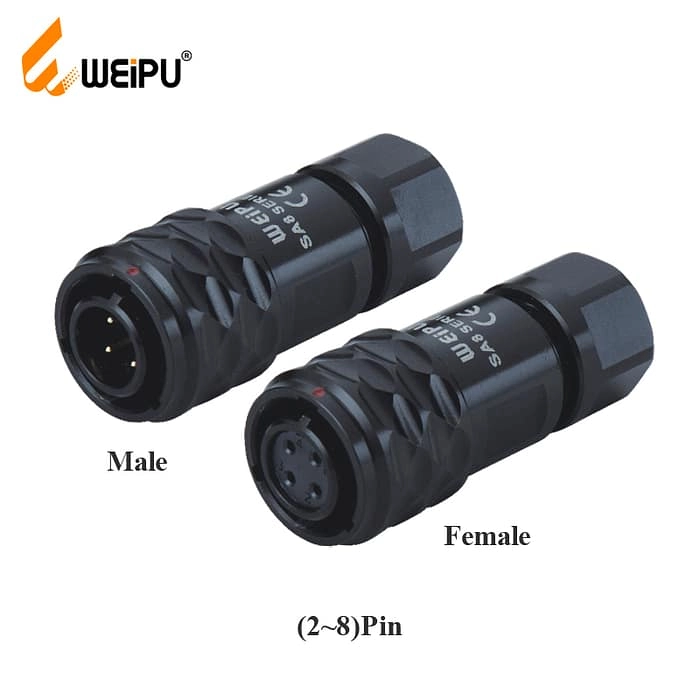

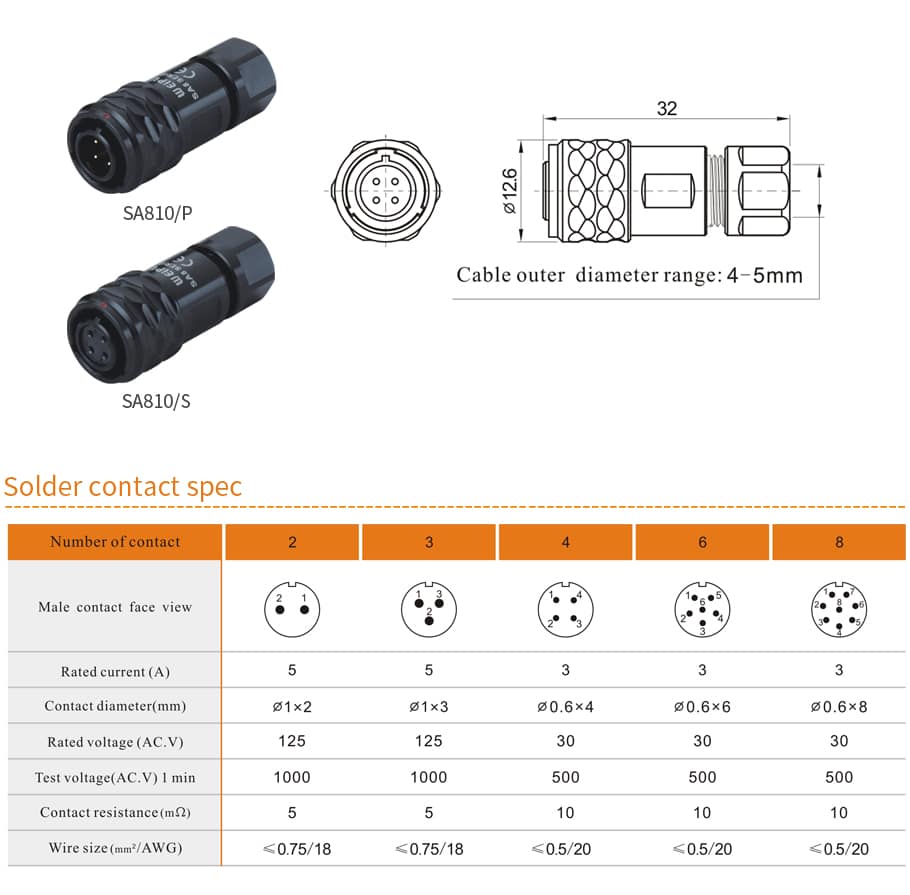

SA810/P SA810/S Cable connector IP67
Description
Coupling | Push-pull |
Shell material | Anodized aluminium |
Insert material | PPS, max temperature 260 *C |
Contact material | Brass with gold plating |
Termination | Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28 |
Crimp: SA16,SA20,SA28 | |
Screw: SA20,SA28 | |

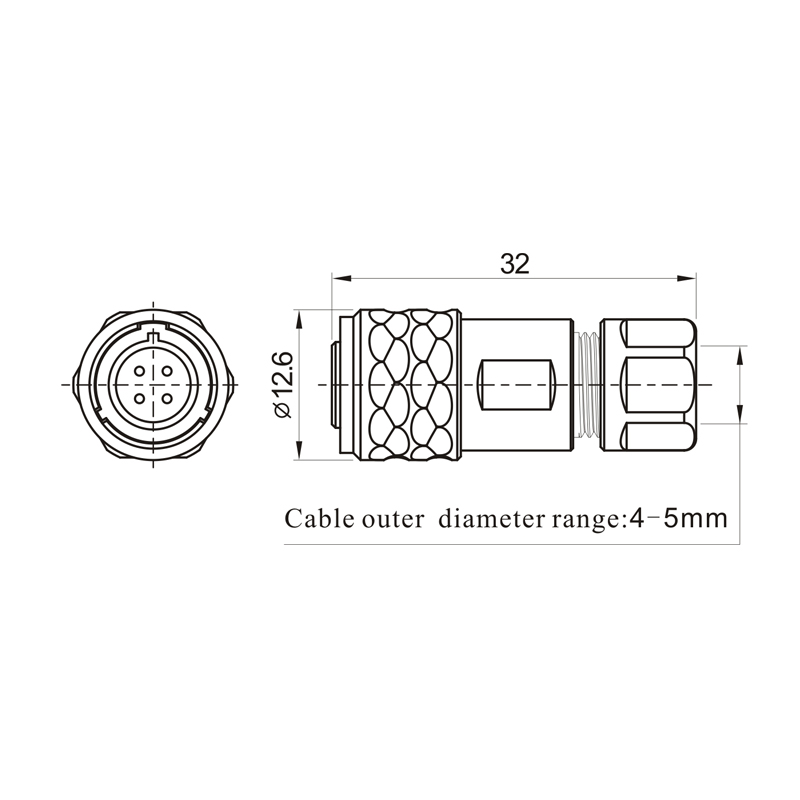

Cable outer diameter range | SA20: 13・16mm |
SA6: 3.5-4mm SA12: I: 4-6.5mm(default,no mark),II: 5-8mm | |
SA8: 4-5mm SA16:1: 5-8mm (default,no mark),II: 8-l2mm | |
SA10:4-6.5mm SA20: 8-12mm | |
IP rating | IP67 |
Mating cycle | 500 |
Temperature range | – 40C~+85C |
Insulation resistance | 2000 MΩ |
01、Insert retainer | ★08、Contact |
★02、Contact | 09、Clamping ring |
03、Panel connector shell | 10、O ring |
04、Inter facial seal | 11、Back shell |
05、Insert | 12、Compression nut |
06、Coupling spring | 13、Rubber ring |
07、Insert | |
★Each side can be male or female contact |
SA8 IP67 Series configuration table(list) | |
01、Cable connector(>SA810/P_ _ >SA810/S_ _) | a、Male contact |
02、In-line cable connector(>SA811/P_ _ >SA811/S_ _) | b、Colour:B: Black S: Silver L: Blue(special order) G: Green(special order) |
03、Rear-nut mount(>SA812/P_ _ >SA812/S_ _) | c、Number of contact |
04、Front-nut mount(>SA815/P_ _ >SA815/S_ _) | d、Fmale contact |
