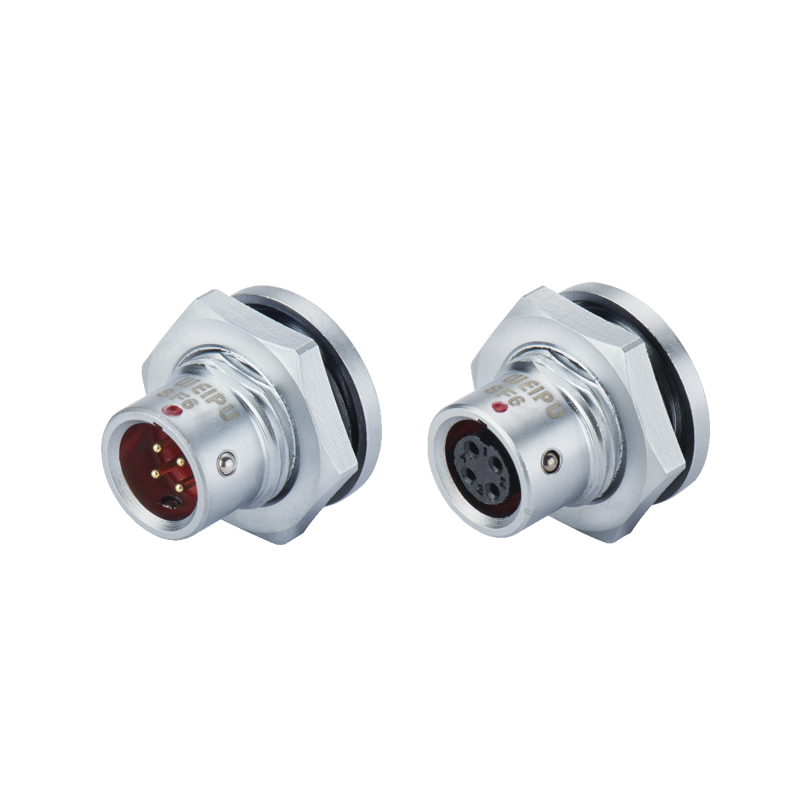

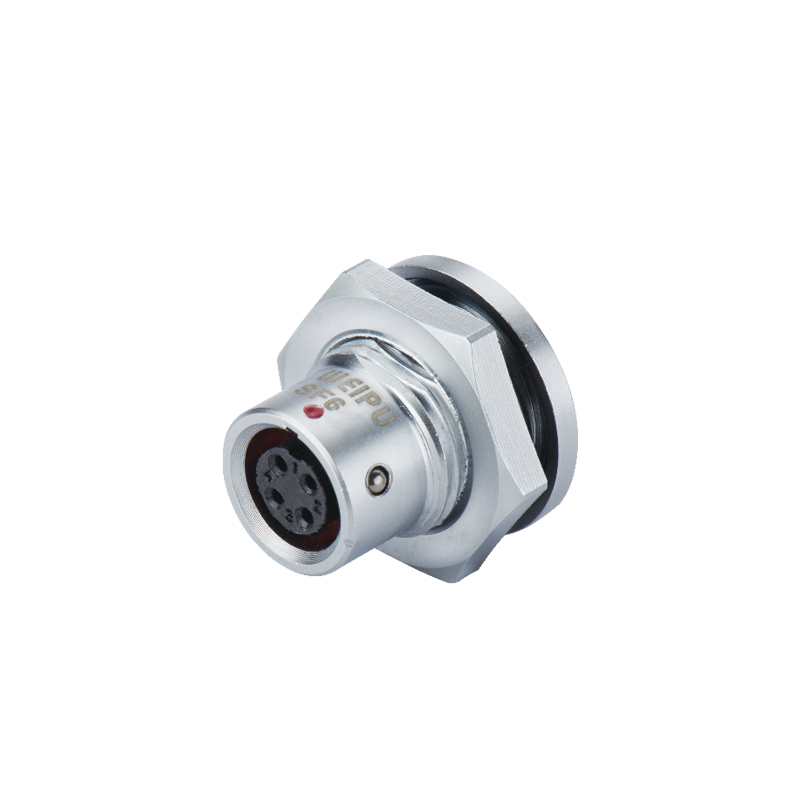

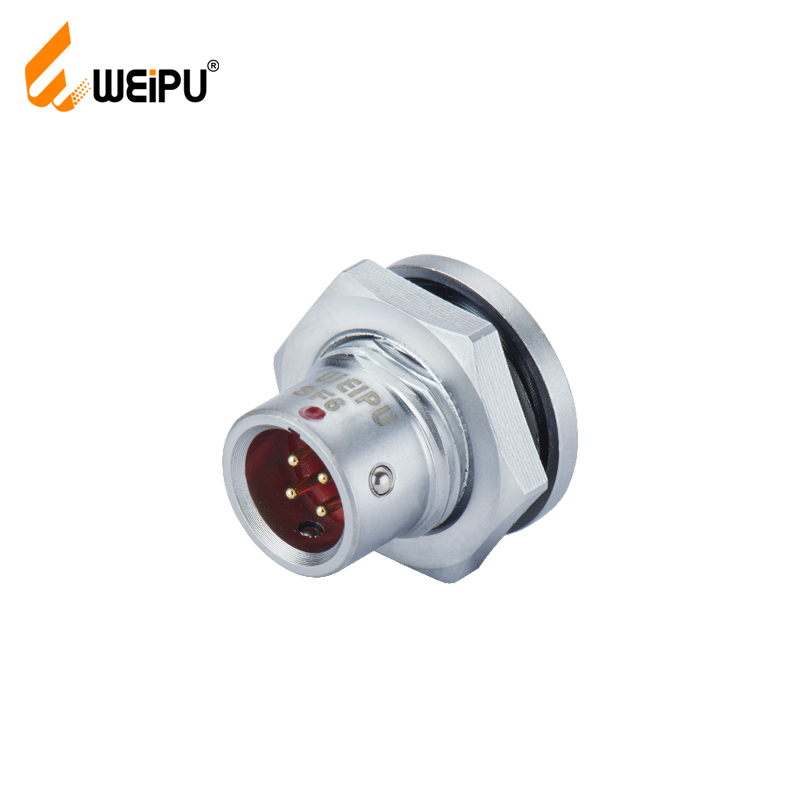

SF615B/P SF615B/S Front-nut mount IP67

Mate with SF610B

Get A Quote

Get Product Catalogs

Description

Specification

Video

Document

Coupling	Push-pull
Shell material	Brass with chrome plating
Insert material	PPS max temperature 260℃
Contact material	Brass with gold plating
Termination	Solder:SF6,SF8,SF10,SF12,SF16,SF20 Crimp:SF16,SF20 Screw:SF20(2.5mm contact)
Cable outer diameter range	SF6:3-4mm SF8:4-5mm SF10:4-6.5mm SF12:I:4-6.5mm，II:5-8mm SFl6 I:5-8mm II:8-12mm SF20 I:8-12mm
IP rating	IP67
Mating cycle	500
Temperature range	-40℃~+85℃
Insulation resistance	2000M(ohm)

SF6 IP67 Series configuration table(list)

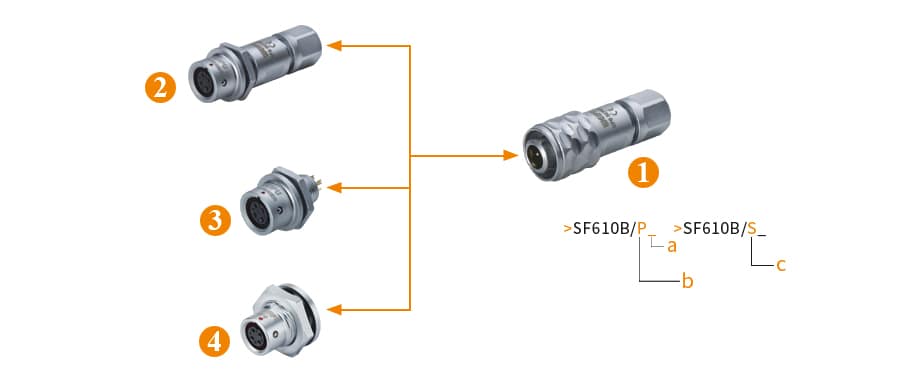

01、Cable connector（>SF610/P_ _ >SF610/S_ _）	a、Number of contact
02、In-line cable connector（>SF611/P_ _ >SF611/S_ _）	b、Male contact
03、Rear-nut mount（>SF612/P_ _ >SF612/S_ _）	c、Fmale contact
04、Front-nut mount（>SF615/P_ _ >SF615/S_ _）

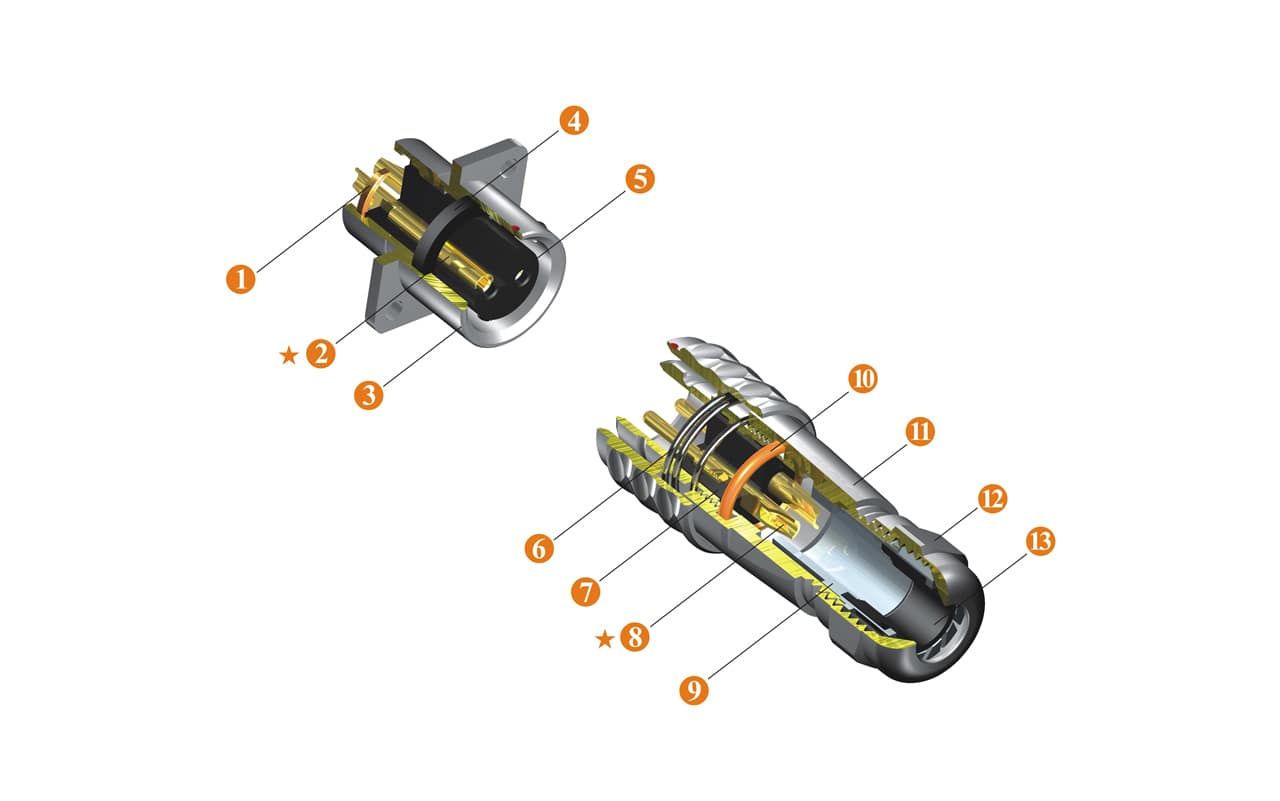

01、Insert retainer	★08、Contact
★02、Contact	09、Clamping ring
03、Panel connector shell	10、O ring
04、Inter facial seal	11、Back shell
05、Insert	12、Compression nut
06、Coupling spring	13、Rubber ring
07、Insert

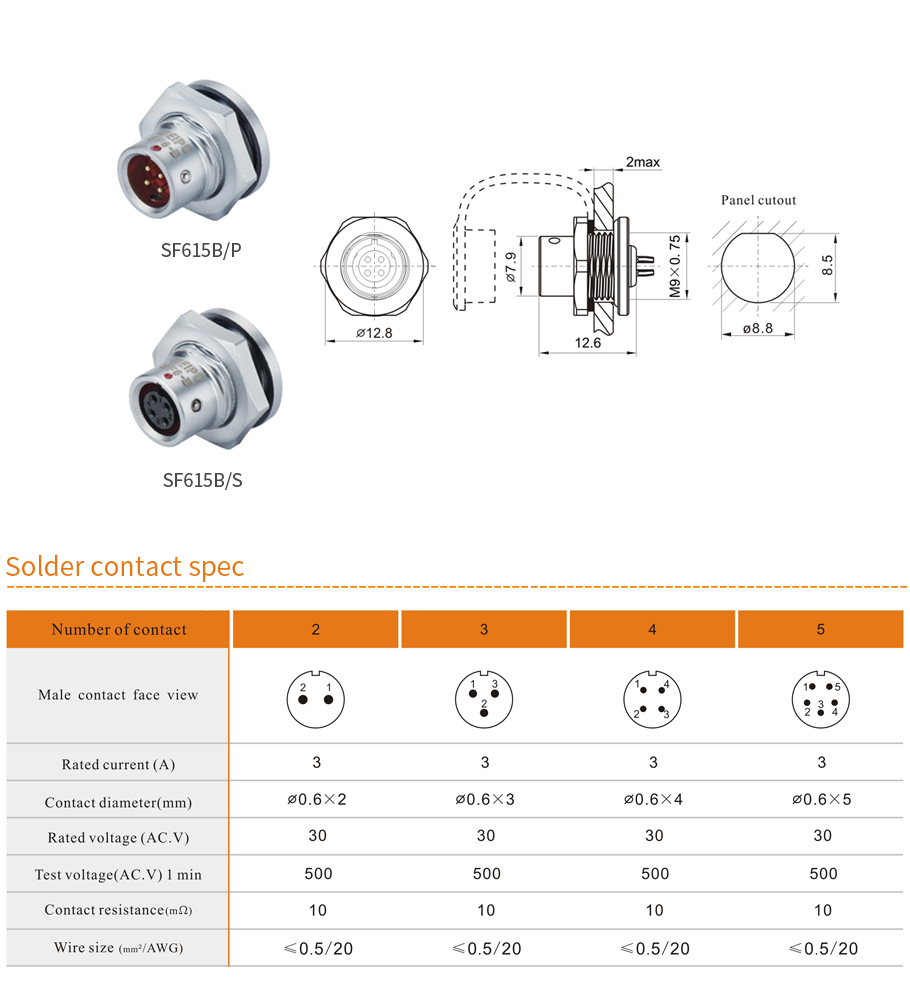

Solder contact spec
