Mate with SY1310

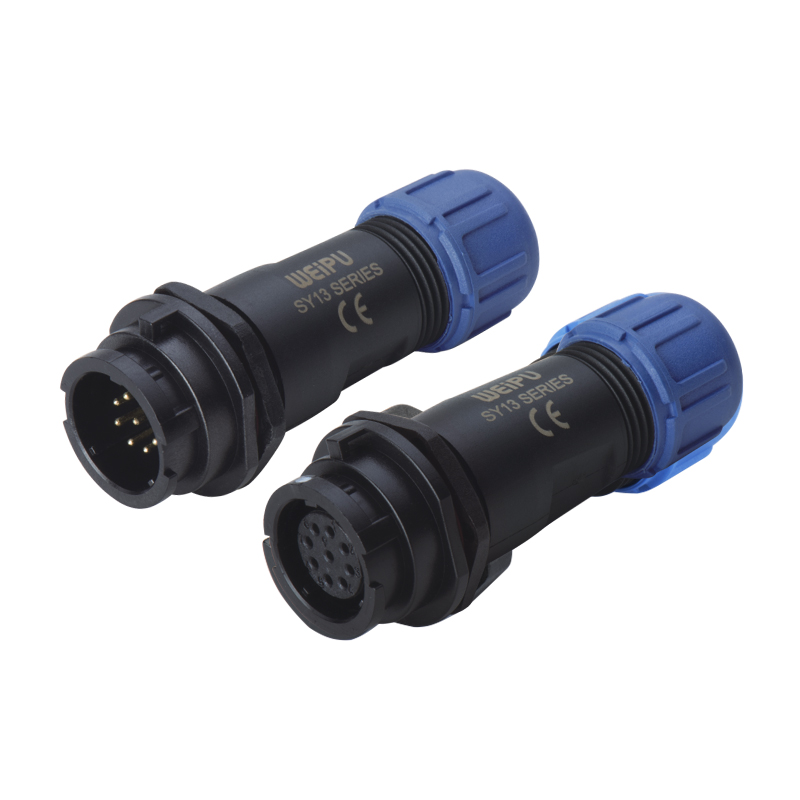

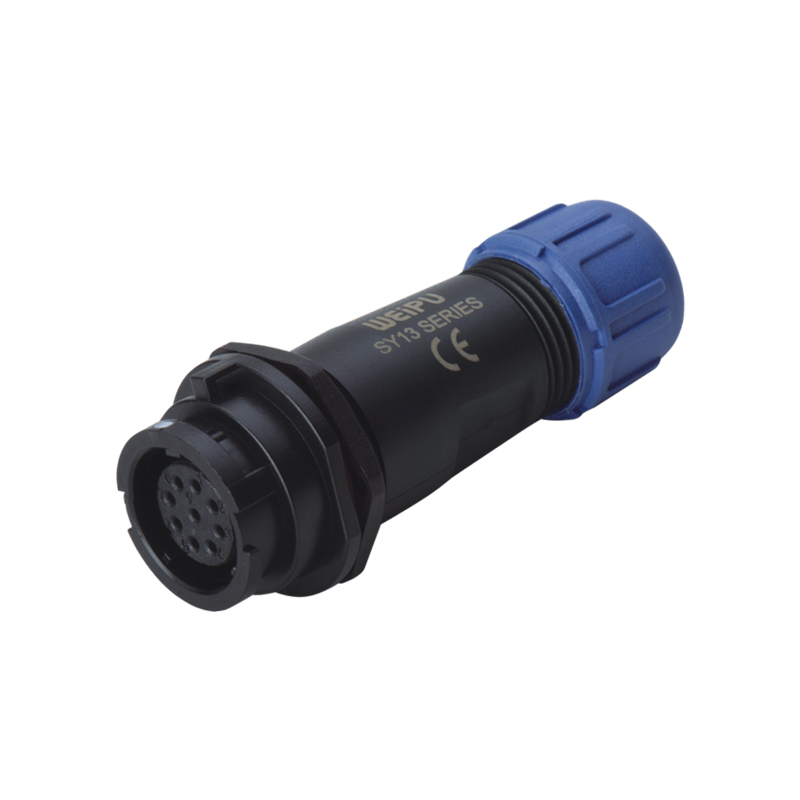

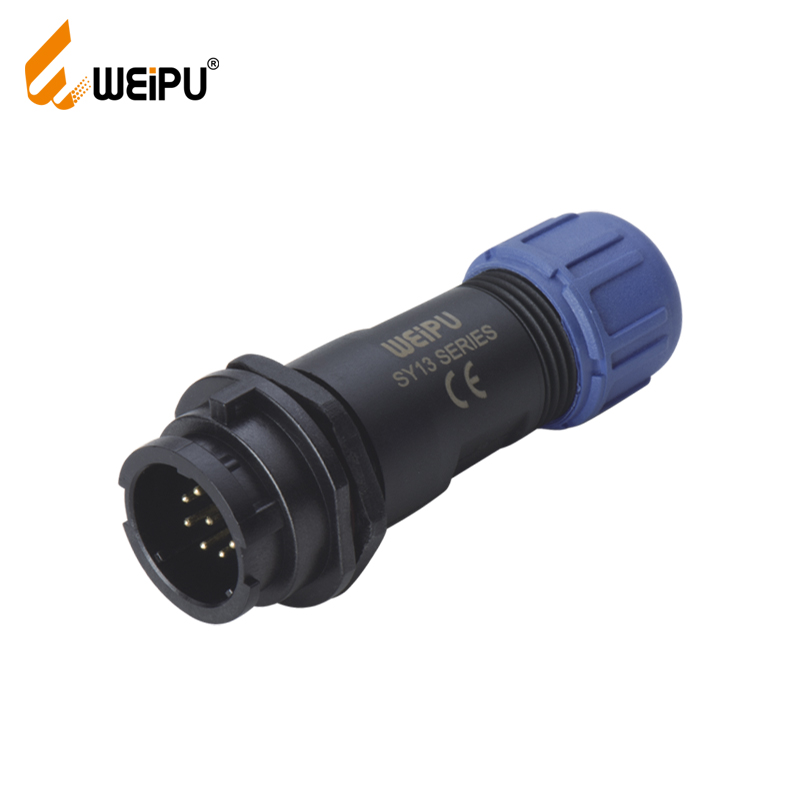

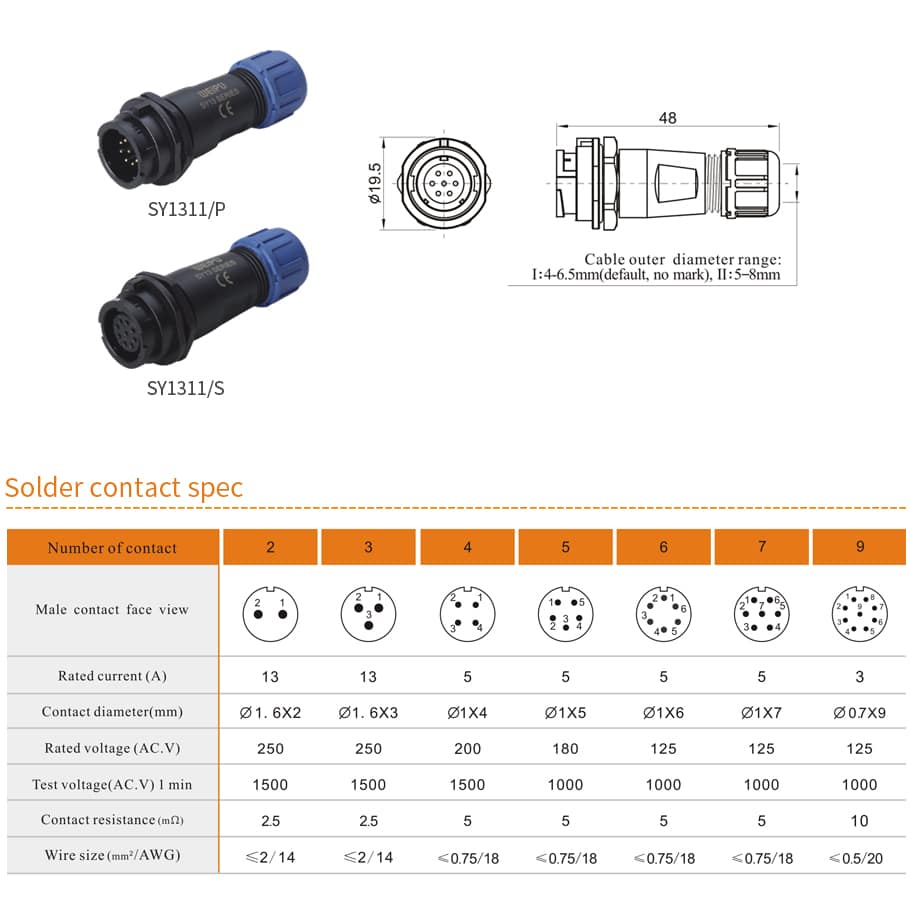

SY1311/P SY1311/S In-line cable connector IP67
Description
| Coupling | Bayonet |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder: SY13, SY17, SY21 Crimp: SY 17 Screw: SY21（φ3mm contact） |
| Cable outer diameter range | SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40°C~ + 85°C |
| Insulation resistance | 2000 MQ |
| 01、O ring | ★07、Contact |
| ★02、Contact | 08、Rubber ring |
| 03、Retaining nut | 09、Locking nut |
| 04、Insert | 10、Insert |
| 05、Panel connector shell | 11、Back shell |
| 06、O ring | 12、Compression nut |
| ★Each side can be male or female contact | |
| SY13 IP67 Series configuration table(list) | |
| 01、Cable connector（>SY1310/P_ _ >SY1310/S_ _） | a、Male contact |
| 02、In-line cable connector（>SY1311/P_ _ >SY1311/S_ _） | b、Fmale contact |
| 03、Rear-nut mount（>SY1312/P_ >SY1312/S_） | c、Cable outer diameter: I:4-6.5mm(default, no mark), II:5-8mm |
| d、Number of contact | |
