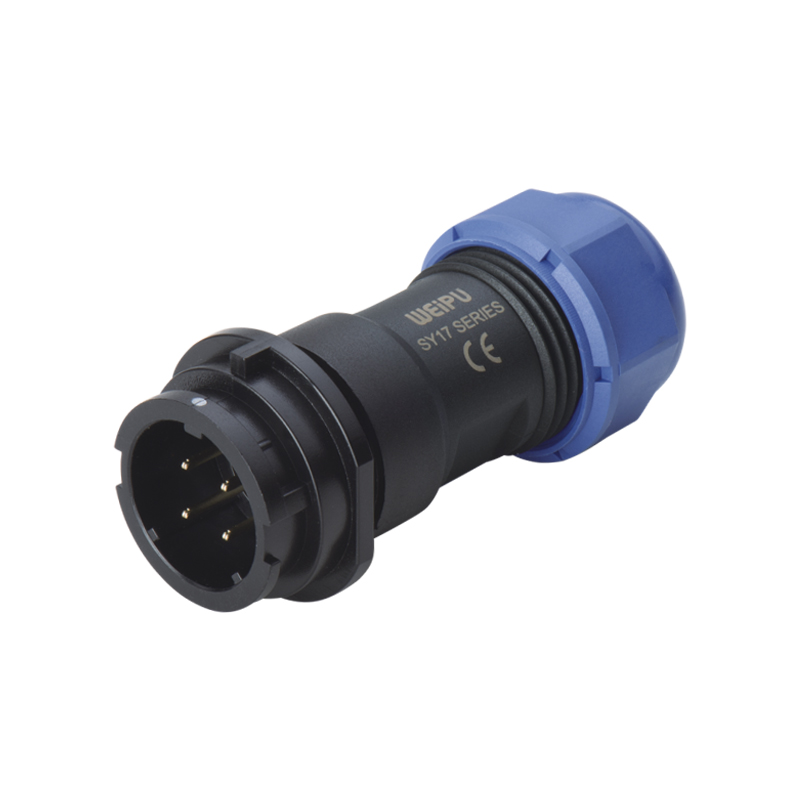

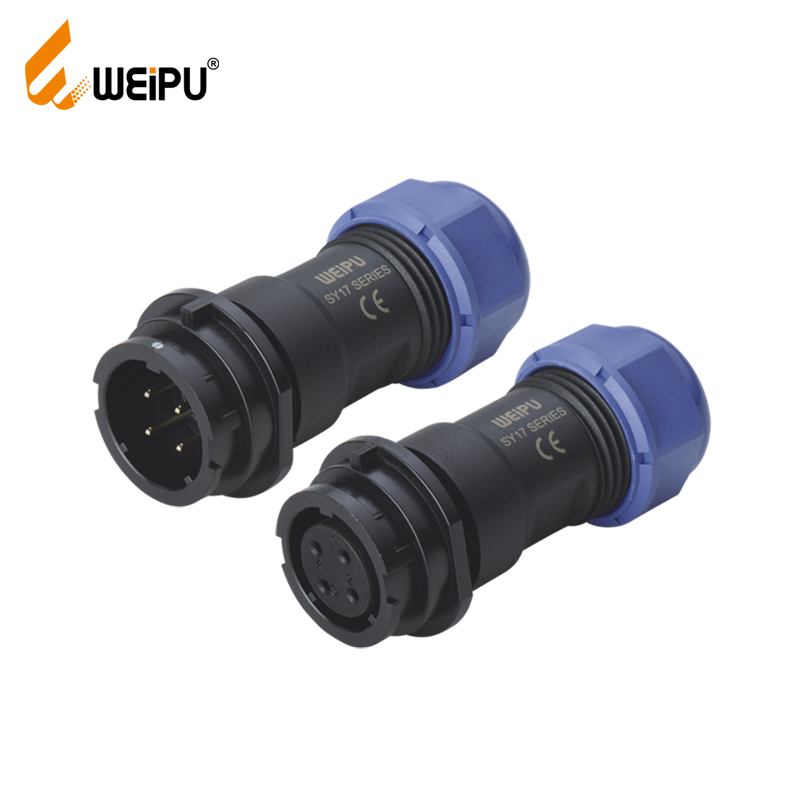

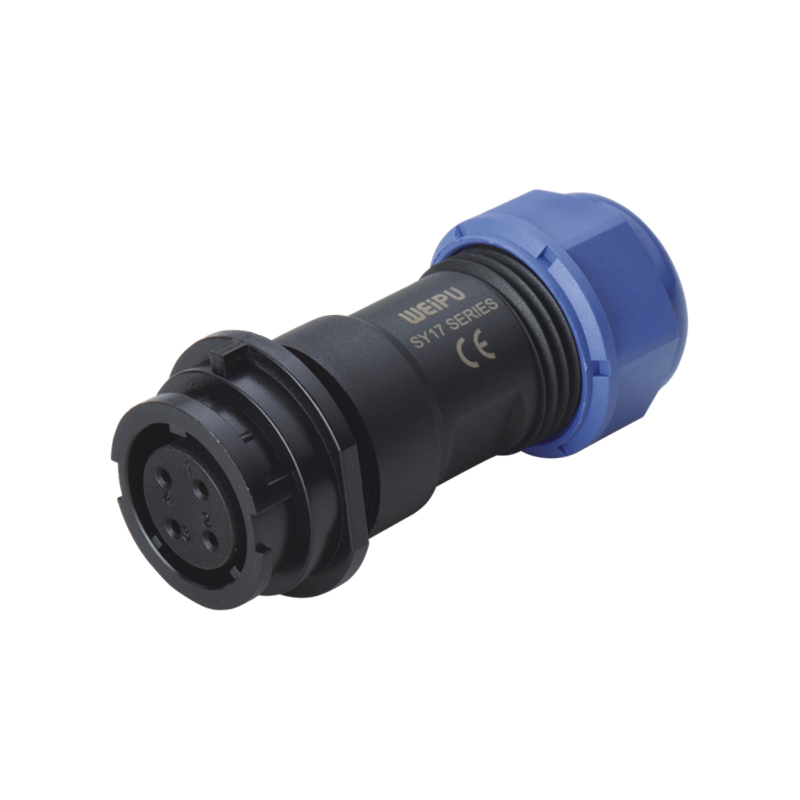

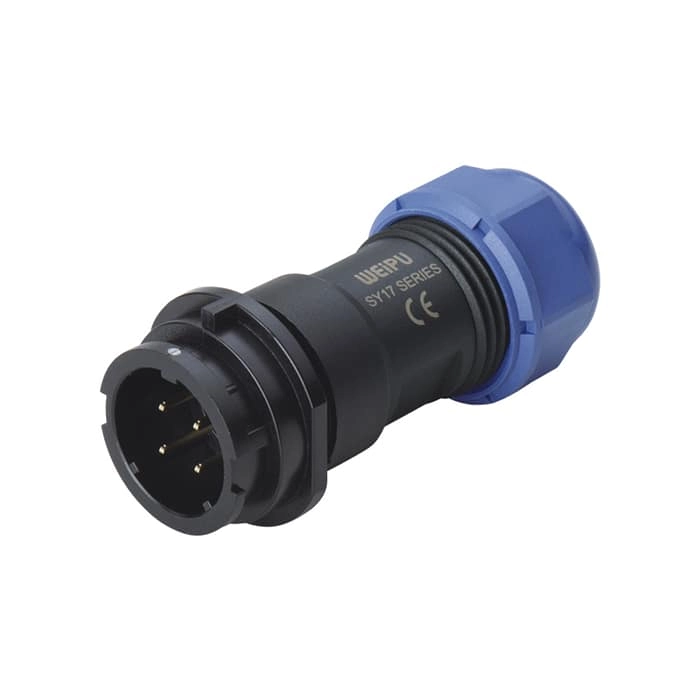

SY1711/P SY1711/S In-line cable connector IP67
Series model：10‑Pin IP67 Waterproof In‑line Cable Plug, Mates With SY1710
Mate with SY1710
Description
Specification
Video
Document
| Coupling | Bayonet |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination |
Solder: SY13, SY17, SY21 Crimp: SY 17
Screw: SY21（φ3mm contact） |

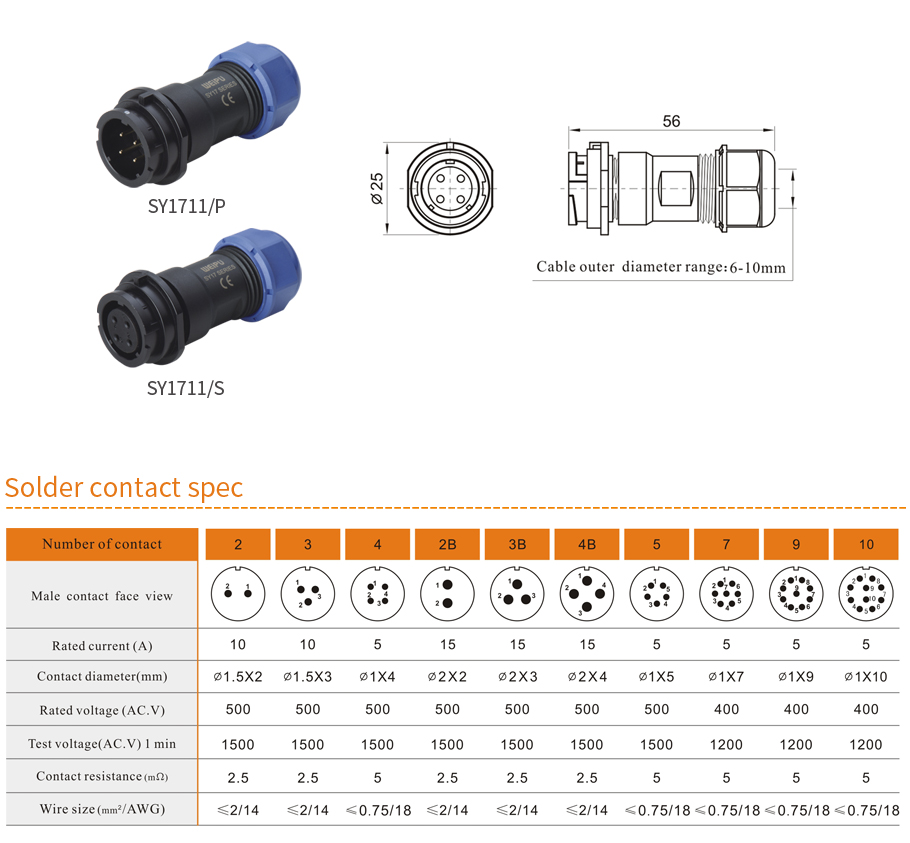

| Cable outer diameter range | SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40°C~ + 85°C |
| Insulation resistance | 2000 MQ |

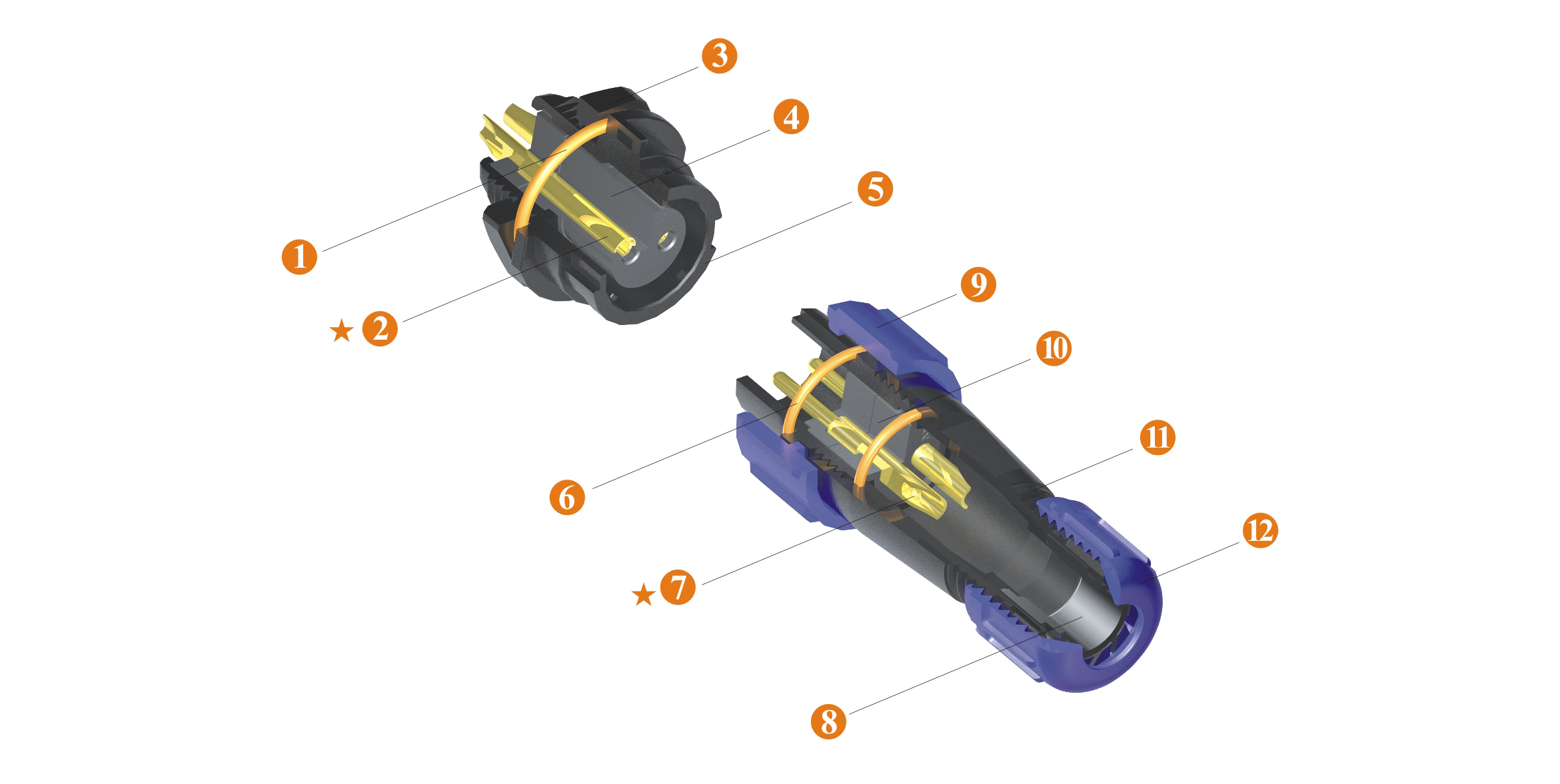

| 01、O ring | ★07、Contact |
| ★02、Contact | 08、Rubber ring |
| 03、Retaining nut | 09、Locking nut |
| 04、Insert | 10、Insert |
| 05、Panel connector shell | 11、Back shell |
| 06、O ring | 12、Compression nut |
| ★Each side can be male or female contact | |

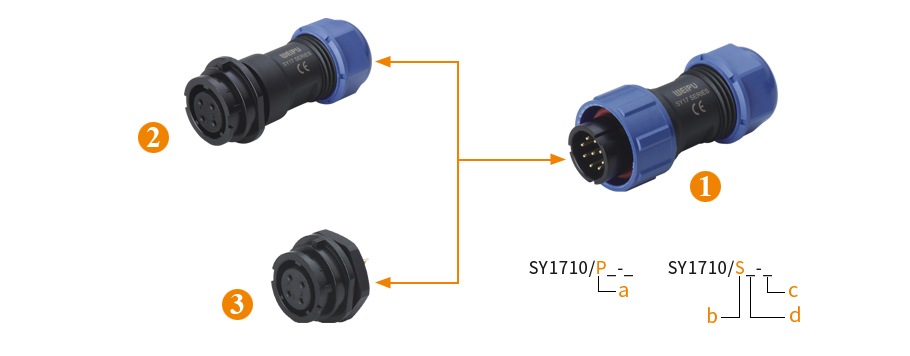

| SY17 IP67 Series configuration table(list) | |
| 01、Cable connector（>SY1710/P_-_ >SY1710/S_-_） | a、Male contact |
| 02、In-line cable connector（>SY1711/P_-_ >SY1711/S_-_） | b、Fmale contact |
| 03、Rear-nut mount（>SY1712/P_ >SY1712/S_） | c、1: solder(default, no mark), 3: crimp |
| d、Number of contact | |
