Mate with WA22K4TK2,,WA22K4Z2,WA22K4ZE2,WA224JZ2

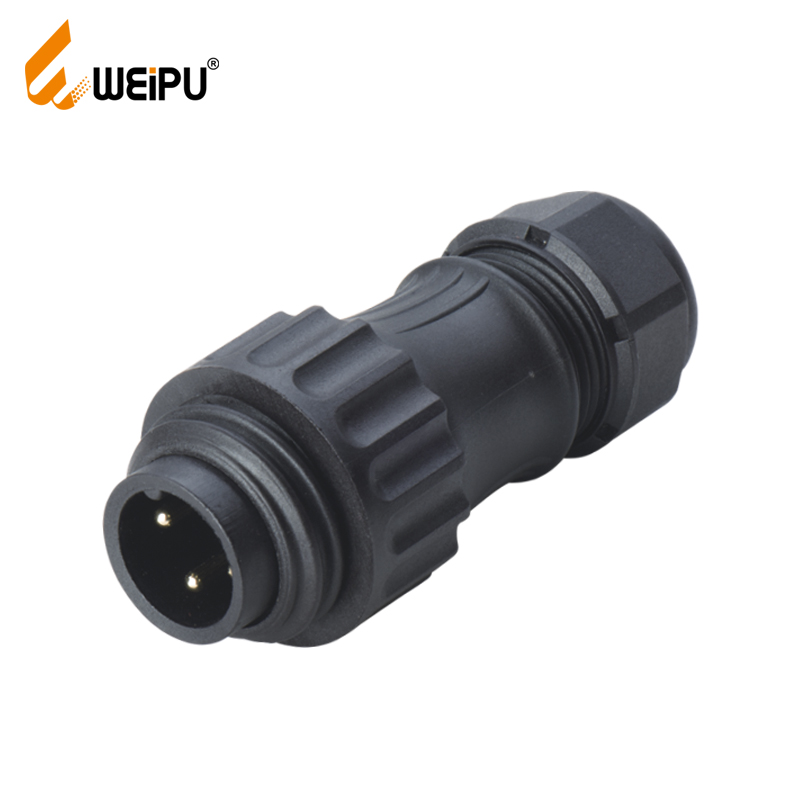

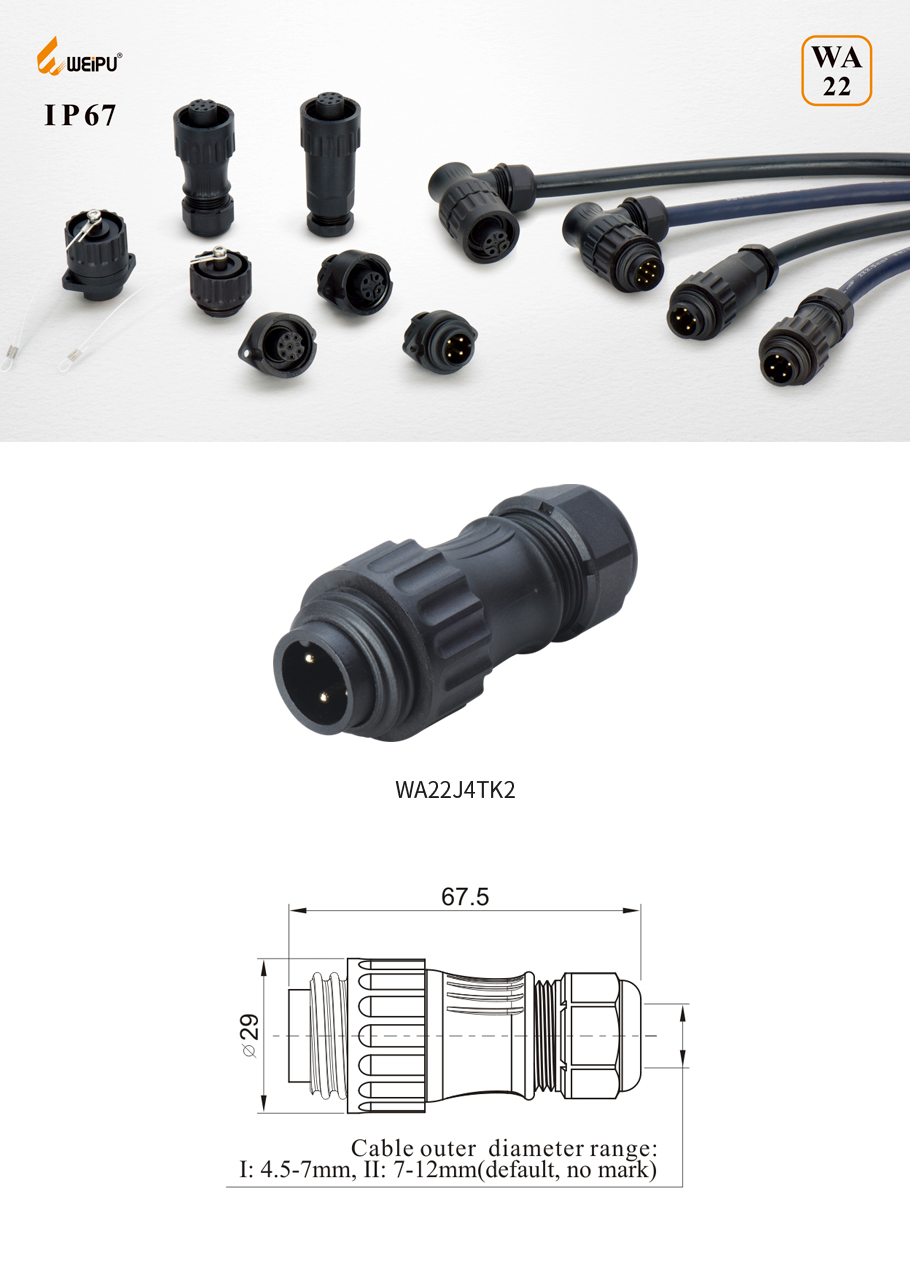

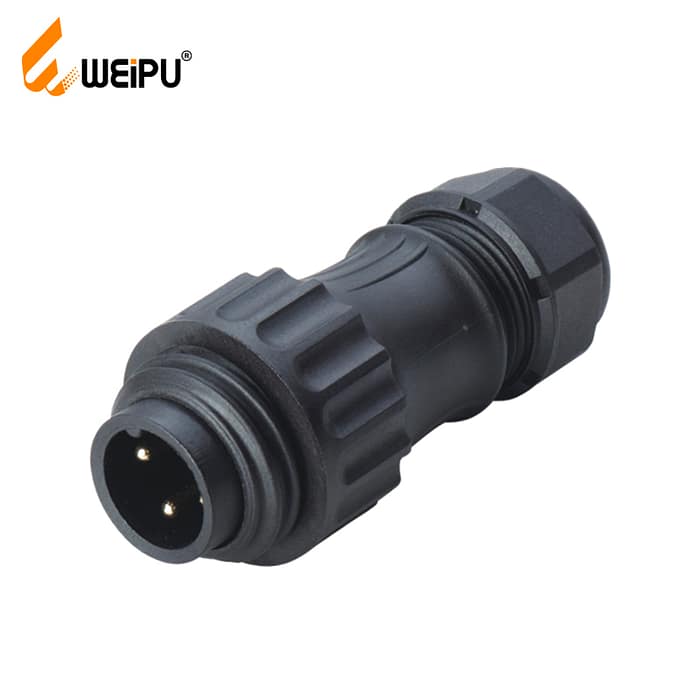

WA22J4TK2 3+PE male cable connector with short back shell IP67

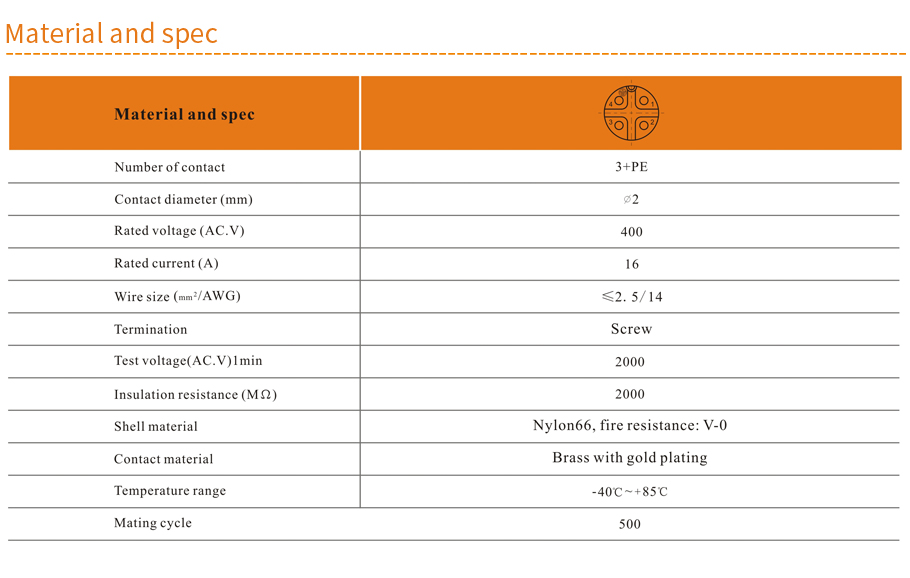

Description
| Number of contact | 3+PE | 6+PE |
| Contact diameter (mm) | φ2 | φ1.5 |
| Rated voltage (AC.V) | 400 | 250 |
| Rated current (A) | 16 | 10 |
| Wire size (mm2/AWG) | ≤2.5/14 | ≤0.75/18 |
| Termination | Screw | Solder |
| Test voltage(AC.V)1min | 2000 | |
| Insulation resistance (MΩ) | 2000 | |
| Shell material | Nylon66, fire resistance: V-0 | |
| Contact material | Brass with gold plating | |
| Temperature range | -40°C〜 + 85°C | |
| Mating cycle | 500 | |

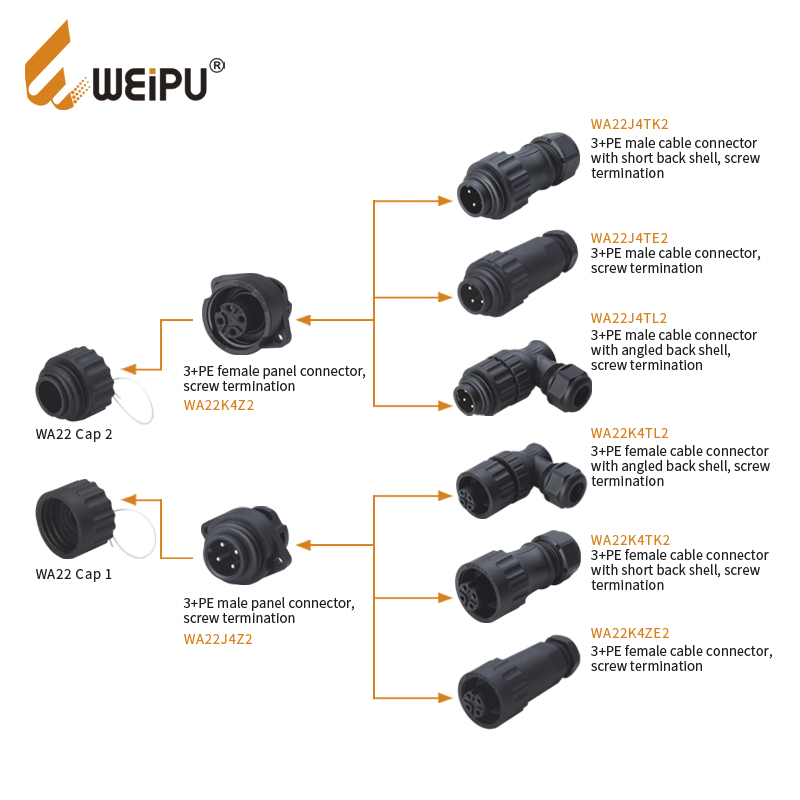

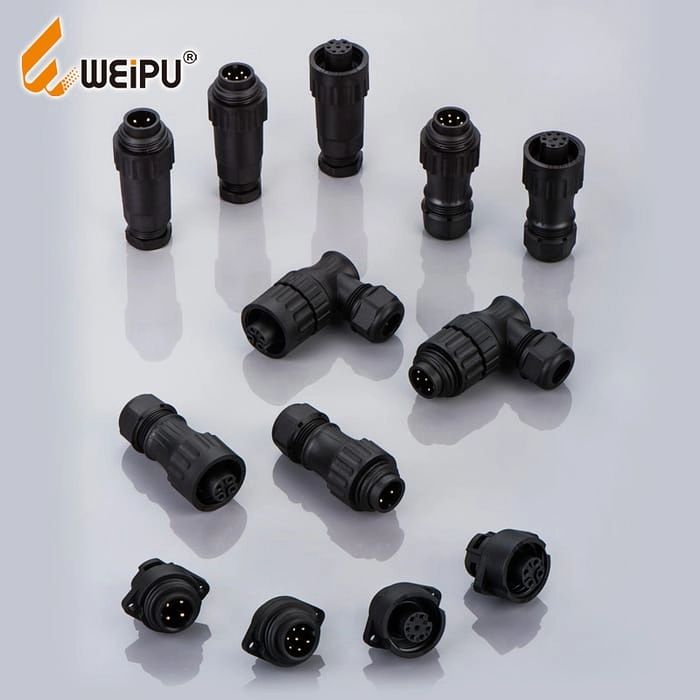

| WA22 (3+PEseries) IP67 [Screw]configuration table(list) |
| 01、WA22J4TK2（3+PE male cable connector with short back shell, screw termination） |
| 02、WA22J4TE2（3+PE male cable connector, screw termination） |
| 03、WA22J4TL2 （3+PE male cable connector with angled back shell, screw termination） |
| 04、WA22K4TL2（3+PE female cable connector with angled back shell, screw termination） |
| 05、WA22K4TK2（3+PE female cable connector with short back shell, screw termination） |
| 06、WA22K4ZE2（3+PE female cable connector, screw termination） |
| 07、WA22K4Z2 （3+PE male panel connector, screw termination） |
| 08、WA22J4Z2（3+PE male panel connector, screw termination） |
| 09、WA22 Cap 2 |
| 10、WA22 Cap 1 |
