Mate with WB30-Z

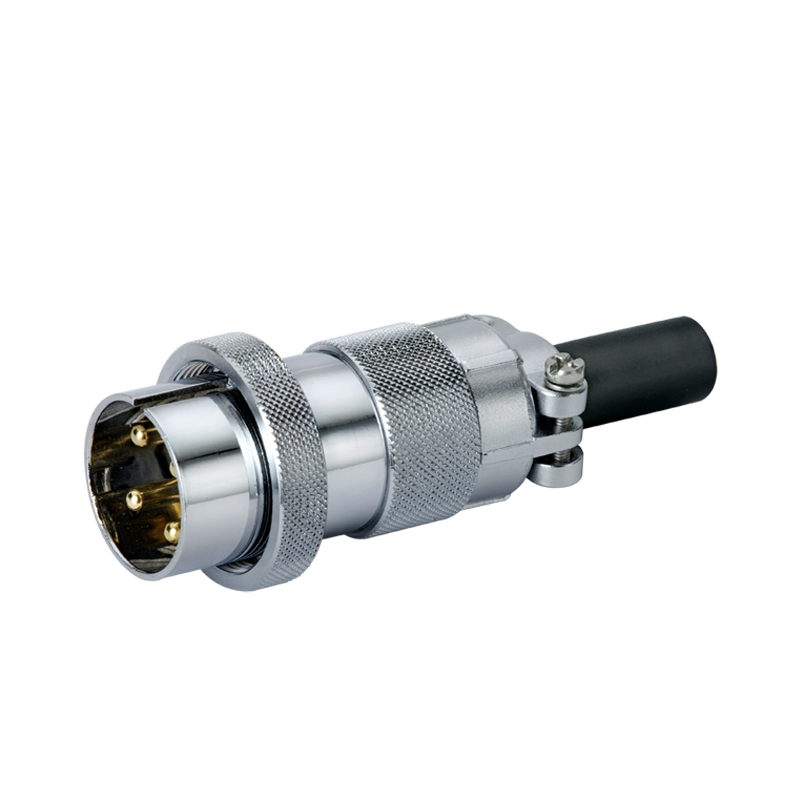

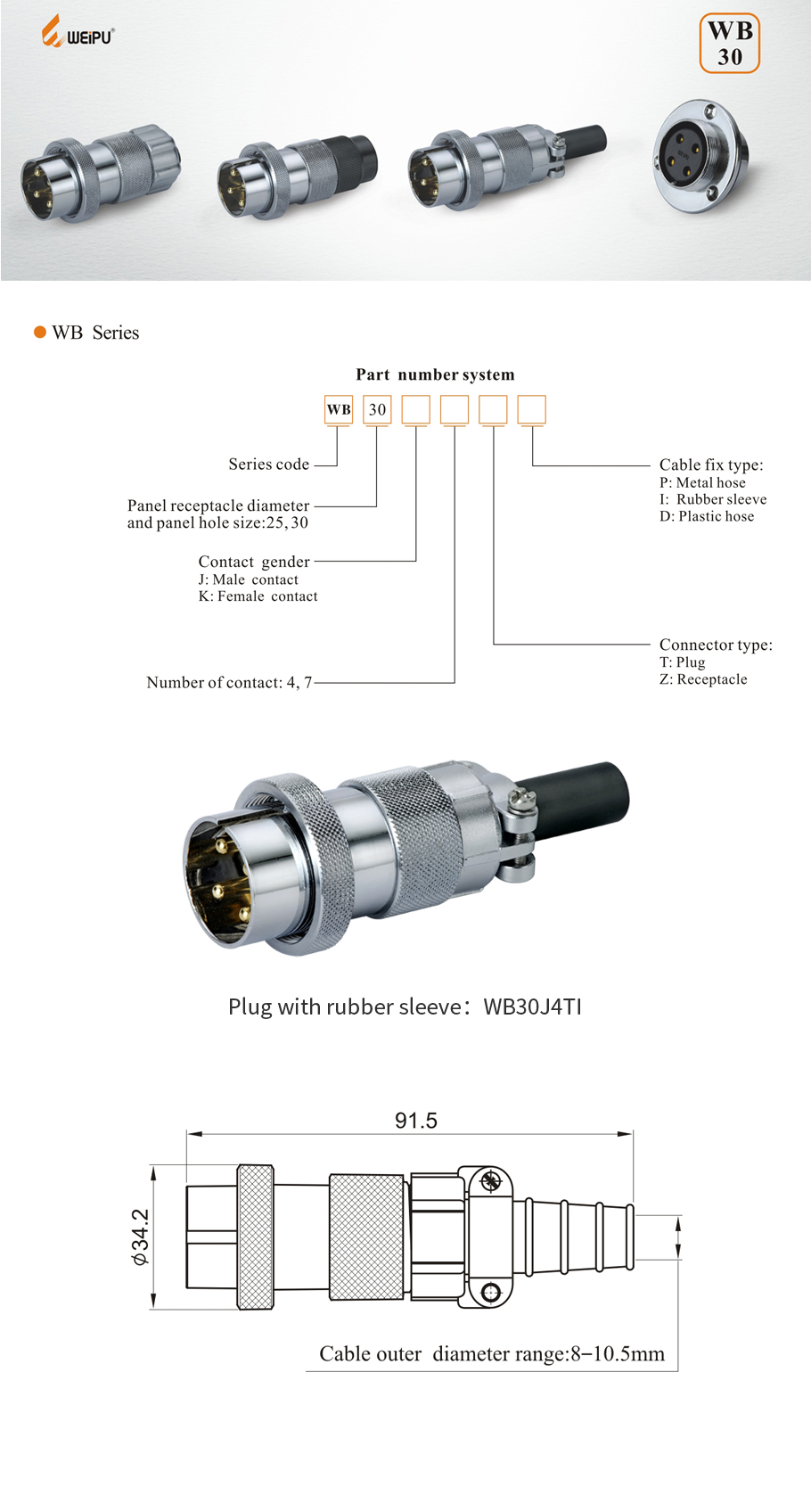

WB30-TI Plug for rubber sleeve
Description
| Coupling | Threaded |
| Shell material | Zinc alloy with chrome plating |
| Insert material | PPS, max temperature 260°C |
| Contact material | Brass with gold plating |
| Termination | Solder |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |
| Insulation resistance | 2000 MQ |

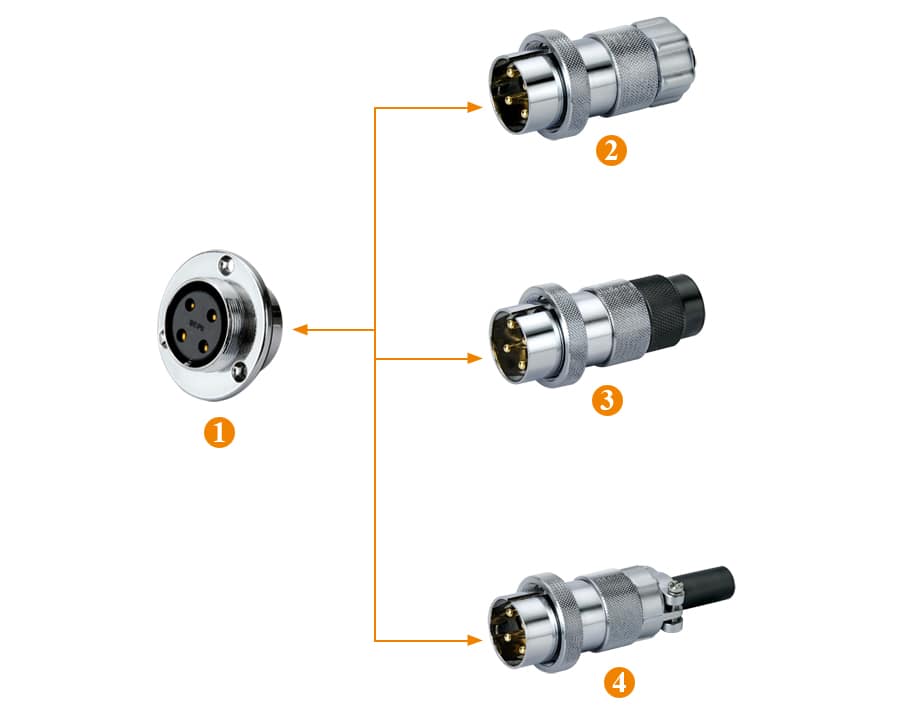

| WB Series Configuration table(list) |
| 01、Receptacle: Z |
| 02、Plug for metal-hose: TP |
| 03、Plug for plastic hose: TD |
| 04、Plug with rubber sleeve: TI |
