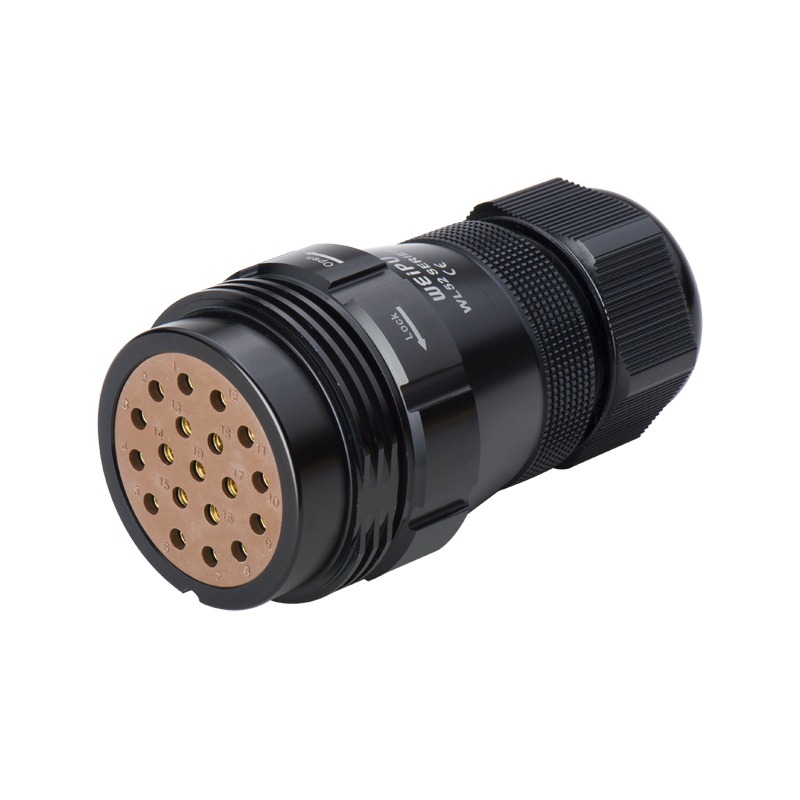

WL52K19T Female-contact connector with clamping-nut IP67

Home|WL52 series, WT series, Circular Connector|WL52K19T Female-contact connector with clamping-nut IP67

WL52K19T Female-contact connector with clamping-nut IP67

Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ

Description

Coupling Threaded
Shell Anodized aluminium
Insert material PPS, fire resistance: V-0, max temperature 260°C
Contact material Brass with gold plating
IP rating IP66/67
Termination Solder
Mating cycle 500
Temperature range -40°C 〜+ 85°C
Insulation resistance 2000 MQ

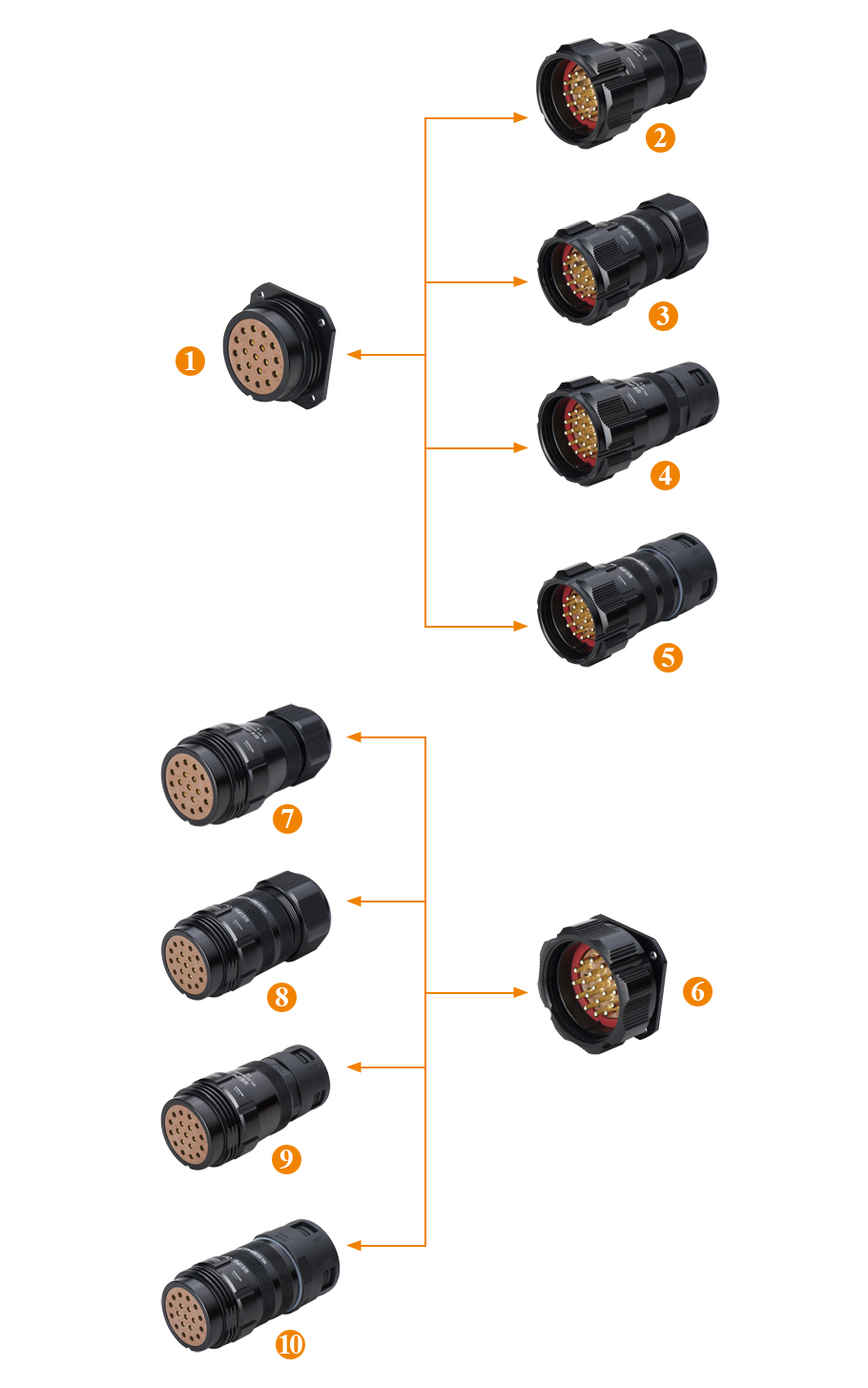

WL52 Series configuration table(list)

01、Square flange female contact receptacle: WL52K19Z   IP67
02、Male-contact plug with clamping-nut: WL52J19T    IP67
03、Male-contact plug with clamping-nut 2: WL52J19TII    IP67
04、Male-contact plug for PG29 Plastic hose adapter: WL52J19TAD I    IP66
05、Male-contact plug for M40 ×1.5 plastic hose adapter: WL52J19TAD II    IP66
06、Square flange male contact receptacle: WL52J19Z  IP67

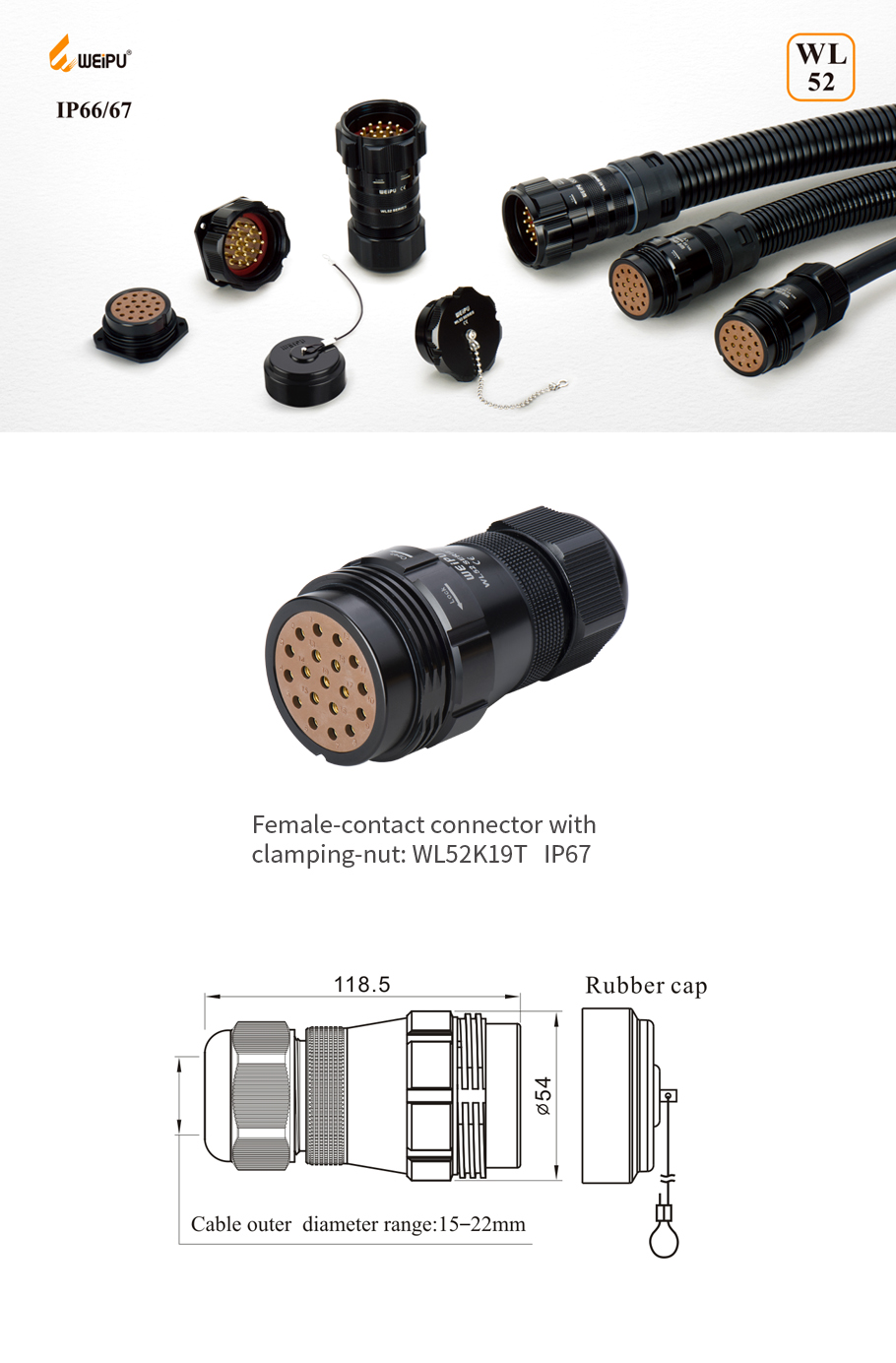

07、Female-contact connector with clamping-nut: WL52K19T  IP67
08、Female-contact connector with clamping-nut 2: WL52K19TII  IP67
09、Female-contact connector for PG29 Plastic hose adapter: WL52K19TAD I  IP66
10、Female-contact connector for M40 ×1.5 Plastic hose adapter:WL52K19TAD II  IP66
