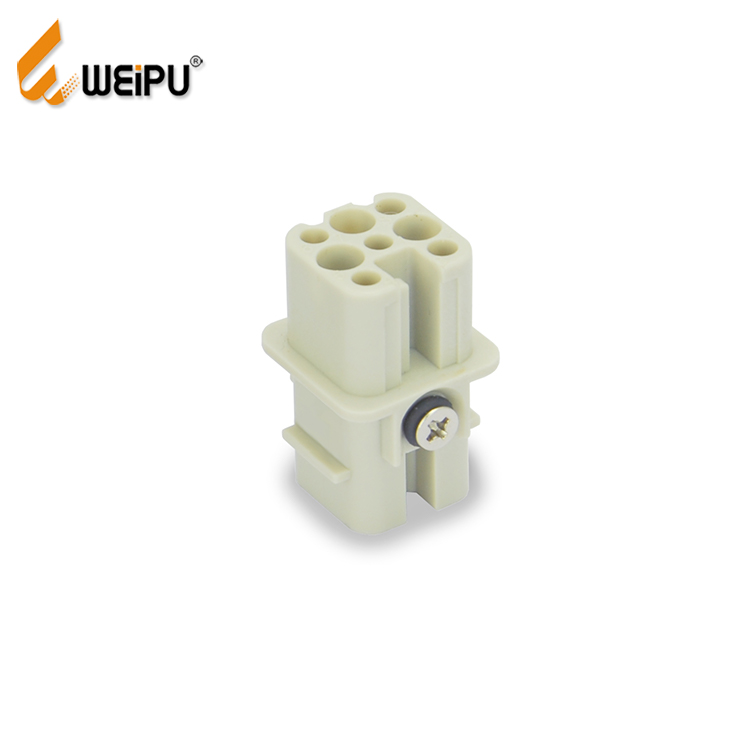

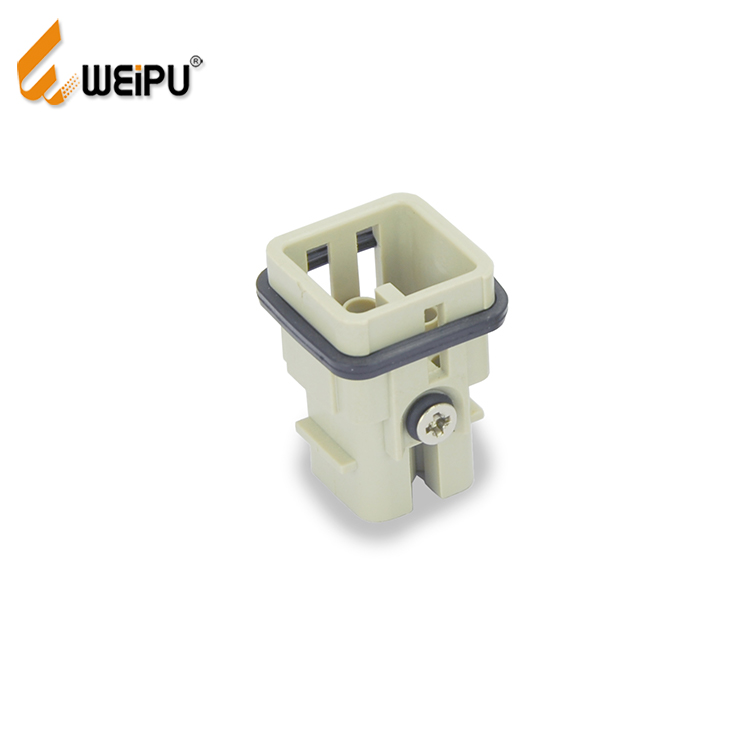

HD-008-MC/FC Crimp termination Connector 16A 500V 8+PE

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.

Applied Range:
◆ Wind Energy
◆ Power Systems
◆ Photovoltaic Industry
◆ Engineering Equipment
◆Other Industry Application

Description

Rated current 10A
Rated voltage 250V
Rated impulse voltage 4kV
Pollution degree 3
Insulation resistance ≥10^10 Ω
Material(insert) Polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V-0
Rated voltage acc.to UL/CSA: 600V
Mating cycles ≥500次
Material Copper Alloy
Surface Silver or Gold Plated
Contact resisance ≤3mΩ

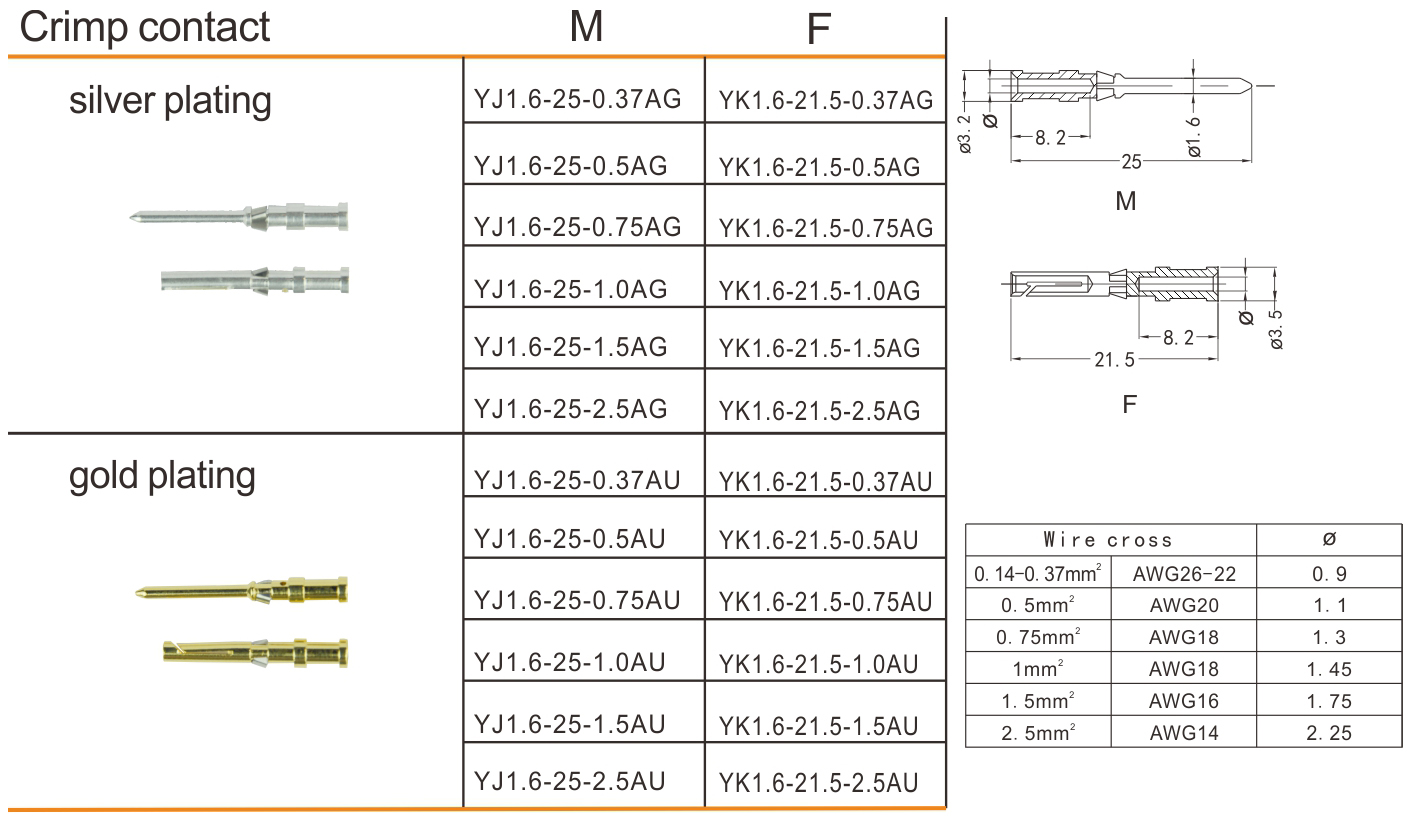

Terminal Crimp
Wire gauge 0.14-2.5 mm^2
26-14AWG
Stripping length 0.14-1.5 mm^2  : 8mm
2.5 mm^2 : 6mm
Rated current 10A
Rated voltage 50V
Rated impulse voltage 0.8kV
Pollution degree 3
Insulation resistance ≥10^10 Ω
Material(insert) Polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V-0
Rated voltage acc.to UL/CSA: 600V
Mating cycles ≥500次
