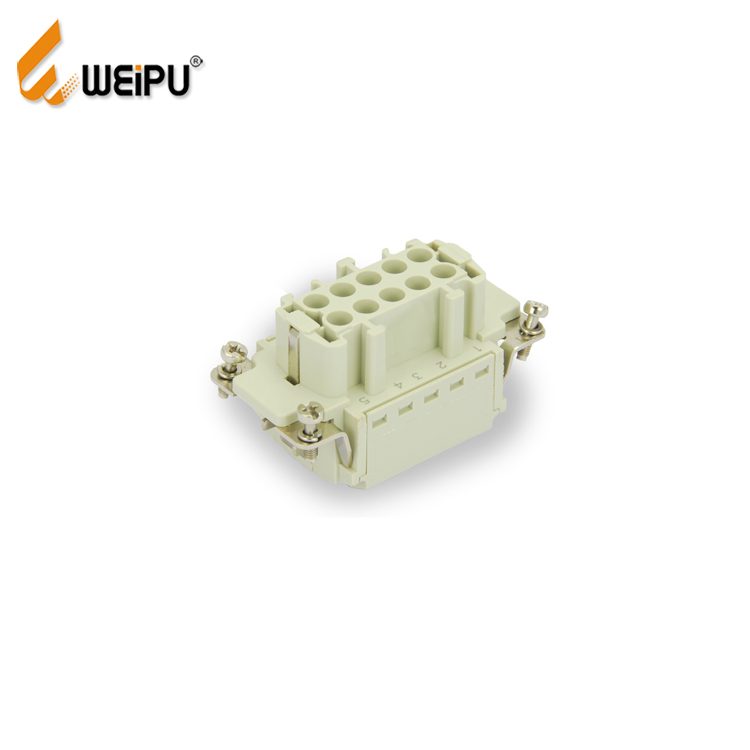

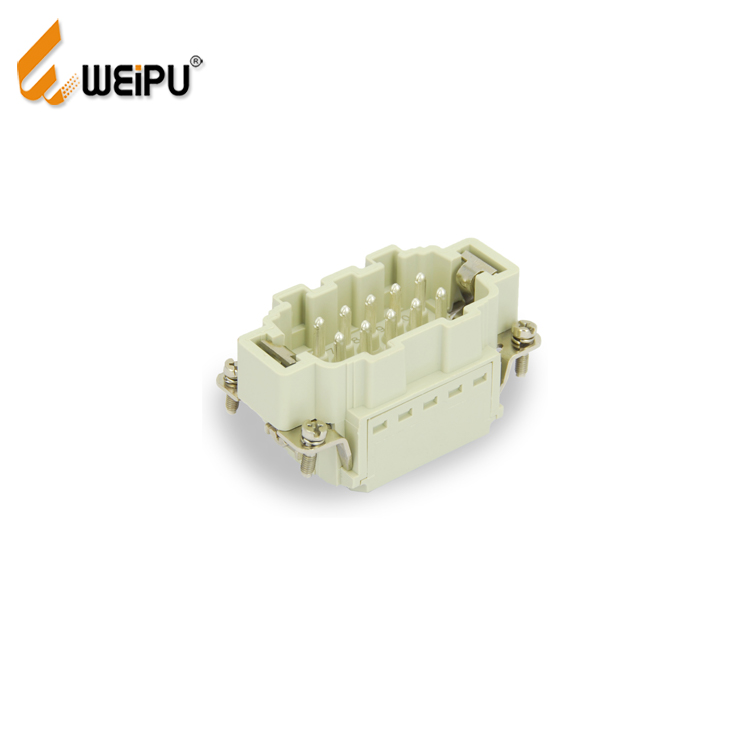

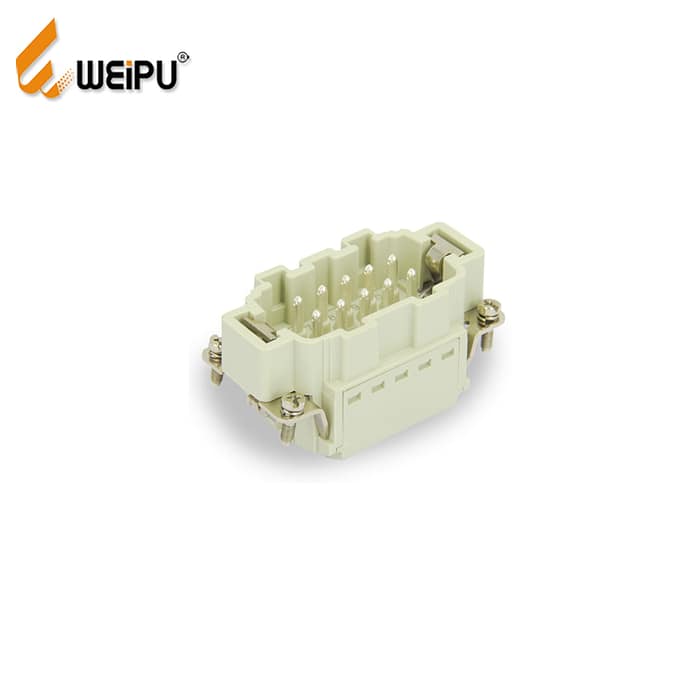

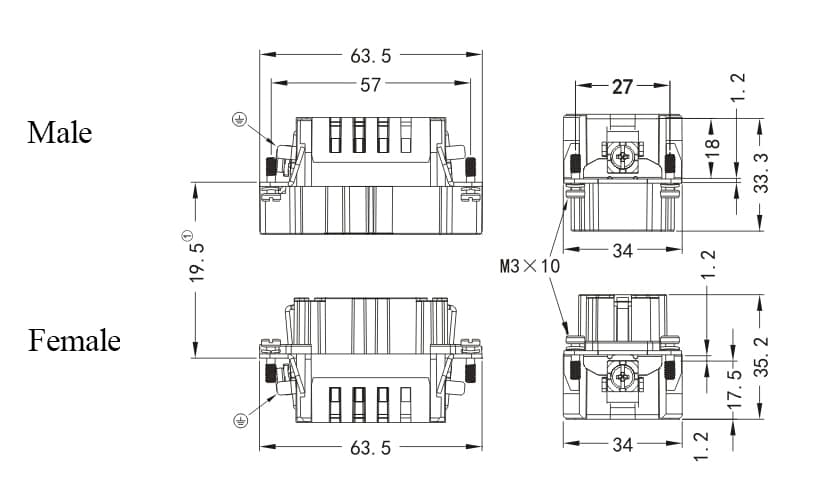

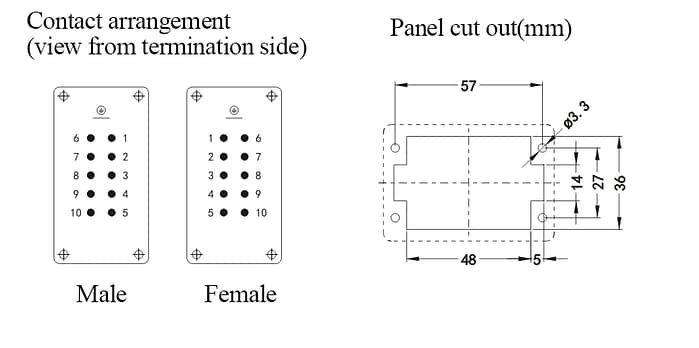

HE-010-MS HA-010-FS Male and Female 16A 500V 10+PE Cage clamp termination Connector

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.

Applied Range:
◆ Wind Energy
◆ Power Systems
◆ Photovoltaic Industry
◆ Engineering Equipment
◆Other Industry Application

Description

Technical characteristics
Specifications and approvals IEC 60664-1、IEC61984
6+PE、10+PE. 1G+PE24+PEv 32(2X16)+PE, 48(2X24)+PE
Insert
Rated current 16A
Rated voltage 500V
Rated impulse voltage 6kV
Pollution degree 3
Insulation resistance ≥10^10Ω
Material(insert) Polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V0
Rated voltage acc.to UL/CSA: 600V
Mating cycles ≥500次

Contact pin
Material Copper Alloy
Surface Silver or Gold Plated
Contact resisance ≤1mΩ
Terminal Screw
Wire gauge 0.75-2.5mm^2
18-14AWG
Stripping length 7.5mm
Terminal Crimp
Wire gauge 0/14*4 mm^2
26-12AWG
Stripping length 7.5mm
Terminal Cage clamp
Wire gauge 0.14-2.5mm^2
26-14AWG
Stripping length 7-9mm
