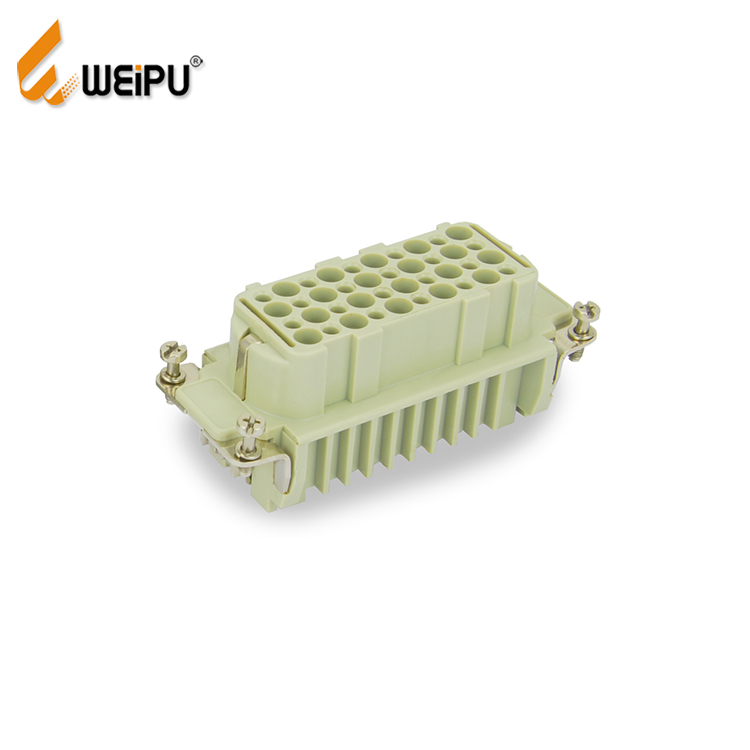

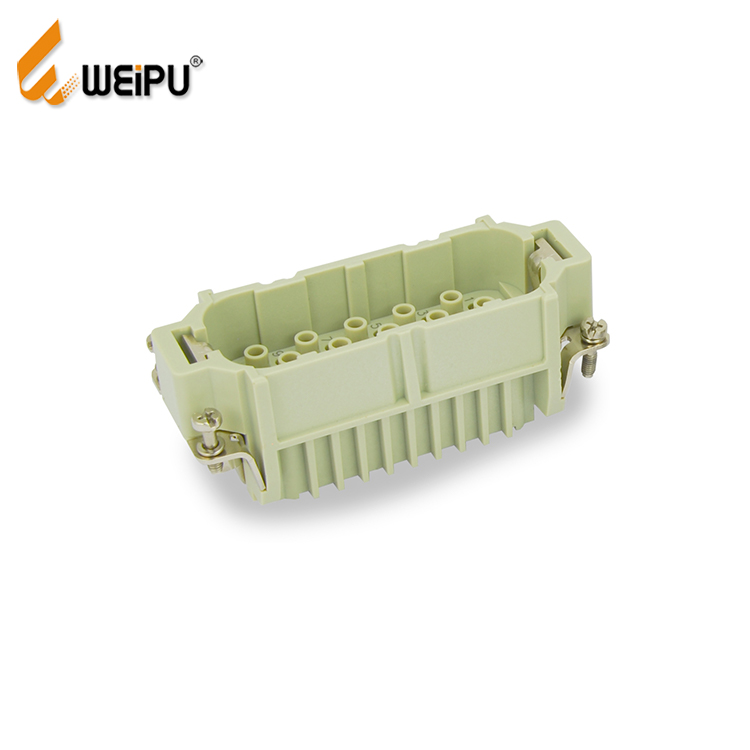

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated impulse voltage | 4kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10 Ω |
| Material(insert) | Polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA: | 600V |
| Mating cycles | ≥500次 |
| Material | Copper Alloy |
| Surface | Silver or Gold Plated |
| Contact resisance | ≤3mΩ |
| Terminal | Crimp |
| Wire gauge | 0.14-2.5 mm^2 26-14AWG |
| Stripping length | 0.14-1.5 mm^2 : 8mm 2.5 mm^2 : 6mm |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated impulse voltage | 0.8kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10 Ω |
| Material(insert) | Polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA: | 600V |
| Mating cycles | ≥500次 |
