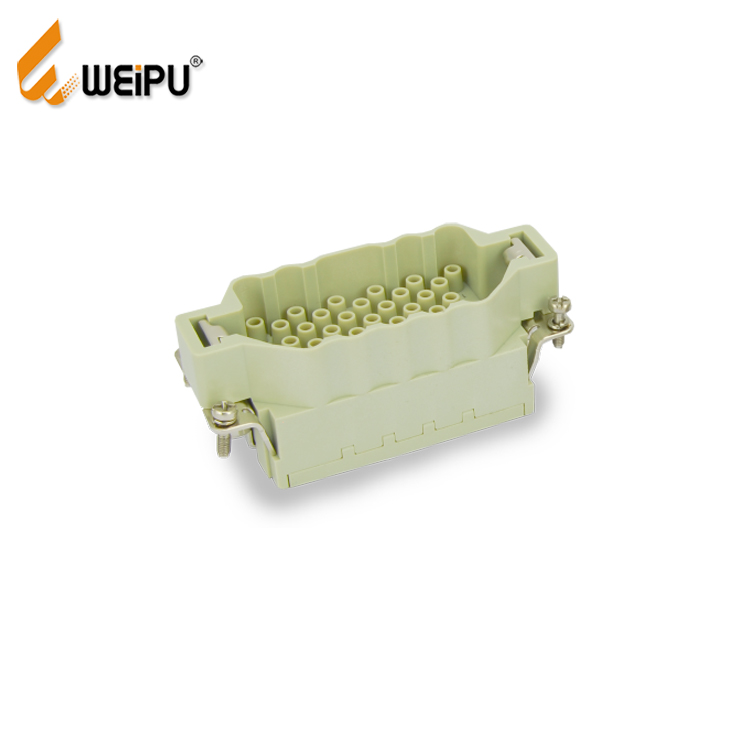

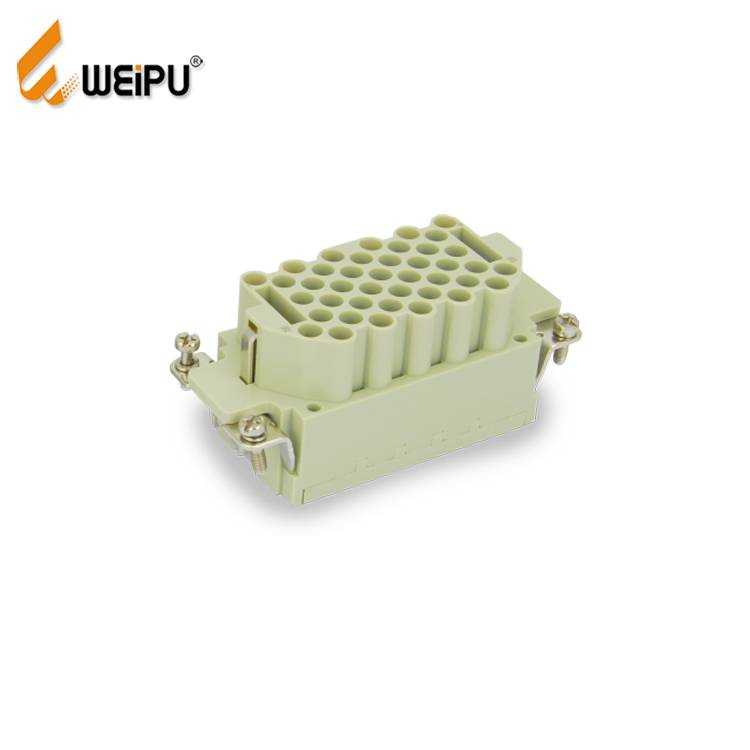

HEEE-040-MC/FC Crimp termination Connector 16A 500V 40+PE

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.

Applied Range:
◆ Wind Energy
◆ Power Systems
◆ Photovoltaic Industry
◆ Engineering Equipment
◆Other Industry Application

Description

Specifications and approvals
  IEC60664-1, IEC61984
40+PE、64+PE、80(2X40)+PE, 128(2X64)+PE

Rated current 16A
Rated voltage 500V
Rated impulse voltage 6kV
Pollution degree 3
Insulation resistance ≥10^10Ω
Material(insert) Polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V-0
Mating cycles ≥500次

Material Copper Alloy
Surface Silver or Gold Plated
Contact resisance ≤1mΩ

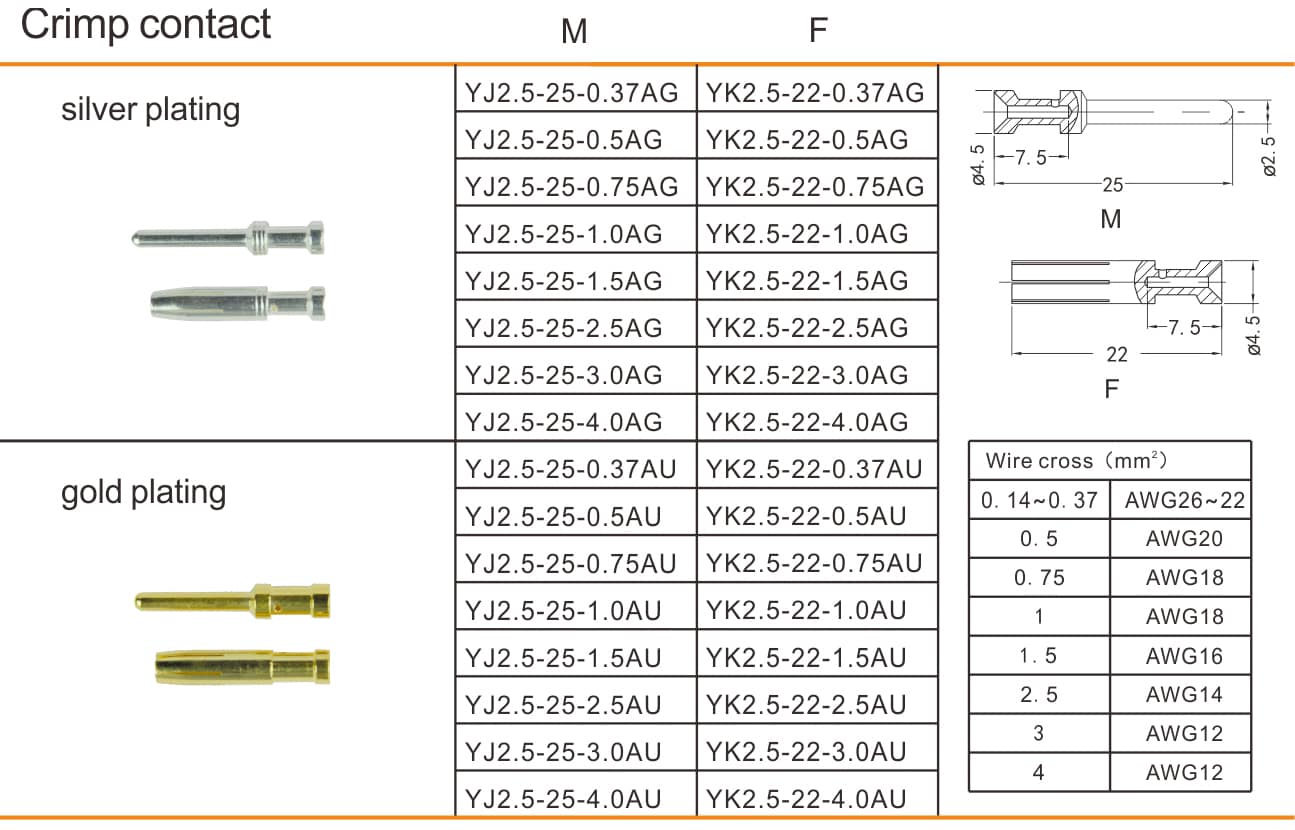

Terminal Crimp
Wire gauge 0.14-4 mm^2;
26-12AWG
Stripping length 7.5mm
