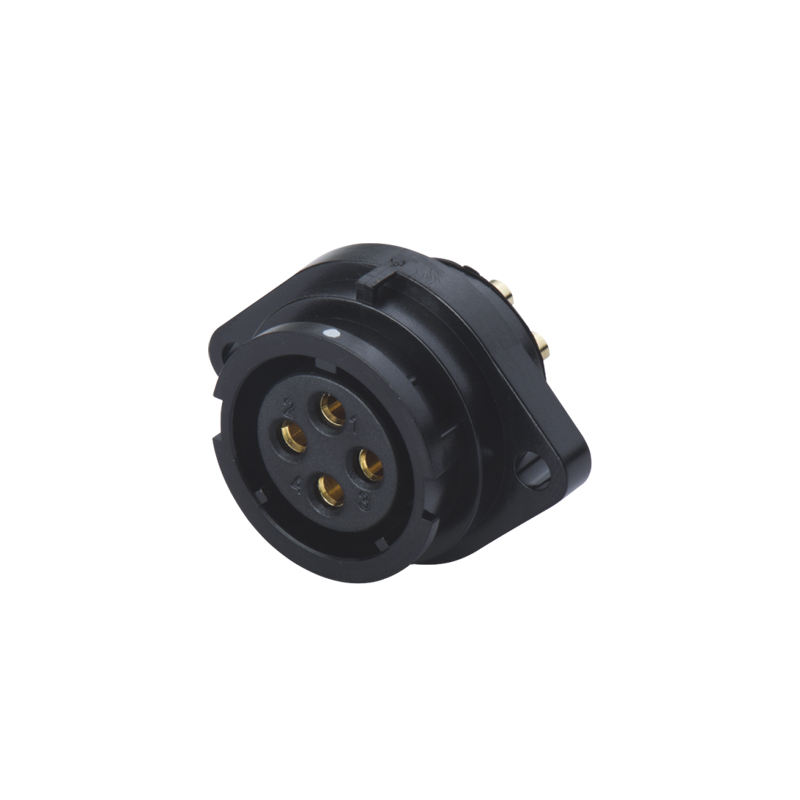

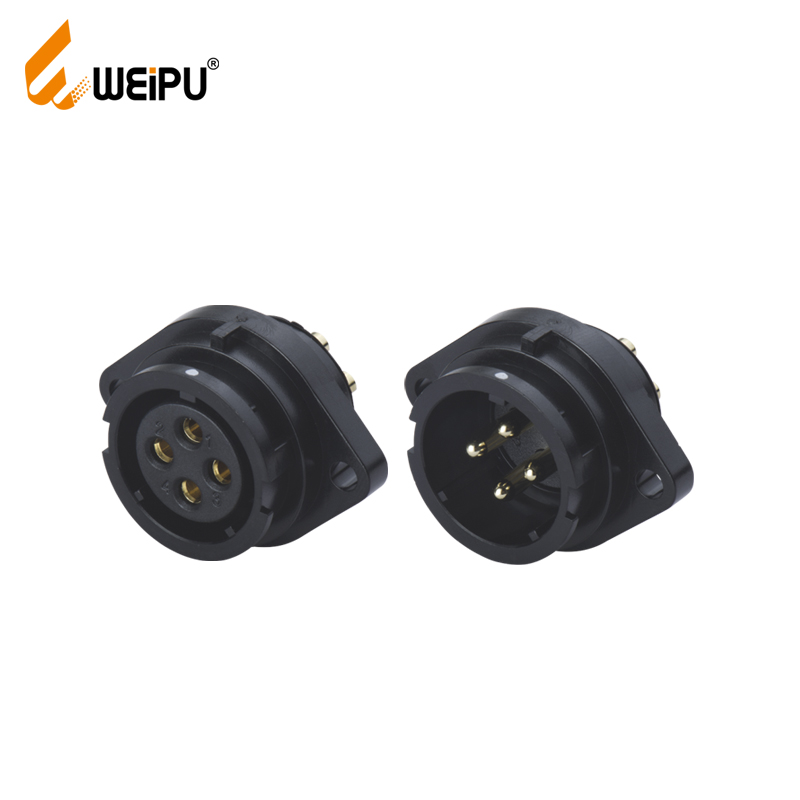

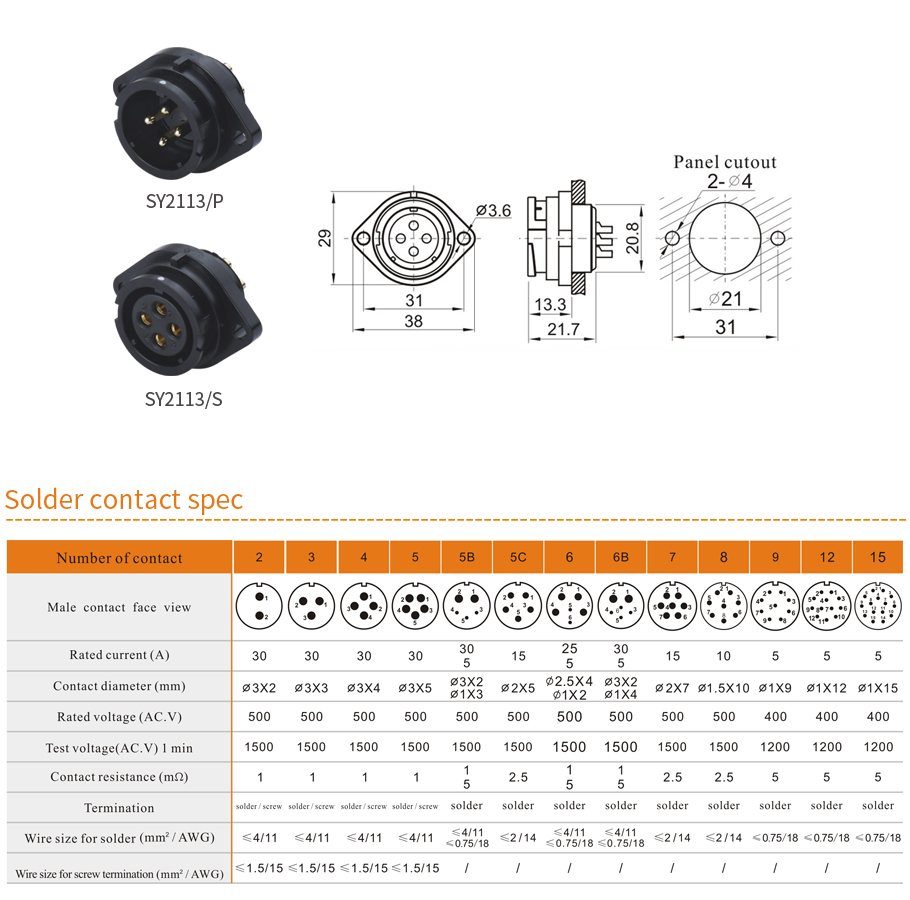

SY2113/P SY2113/S 2-hole flange IP67

Mate with SY2110, SY2116

Description

Coupling Bayonet
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder: SY13, SY17, SY21               Crimp: SY 17
Screw: SY21(φ3mm contact)
Cable outer diameter range SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm
IP rating IP67
Mating cycle 500
Temperature range -40°C~ + 85°C
Insulation resistance 2000 MQ

01、O ring ★07、Contact
★02、Contact 08、Rubber ring
03、Retaining nut 09、Locking nut
04、Insert 10、Insert
05、Panel connector shell 11、Back shell
06、O ring 12、Compression nut

★Each side can be male or female contact

SY21 IP67 Series configuration table(list)
01、Cable connector(>SY2110/P_ _-_     >SY2110/S_ _-_) a、Male contact
02、Angled cable connector(>SY2116/P_ _-_     >SY2116/S_ _-_) b、Fmale contact
03、In-line cable connector (>SY2111/P_ _-_    >SY2111/S_ _-_) c、Number of contact
04、Rear-nut mount(>SY2112/P_-_     >SY2112/S_-_) d、1: solder(default,no mark), 2: screw, 3: crimp
05、2-hole flange(>SY2113/P_-_    >SY2113/S_-_) e、Cable outer diameter:I:4.5-7mm,II:7-12mm(default,no mark)
