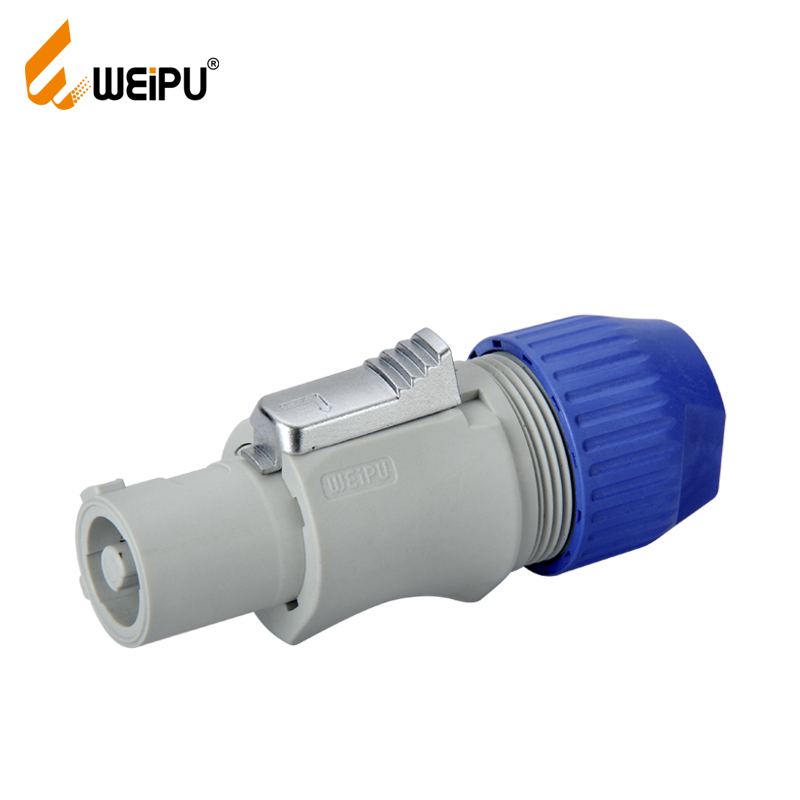

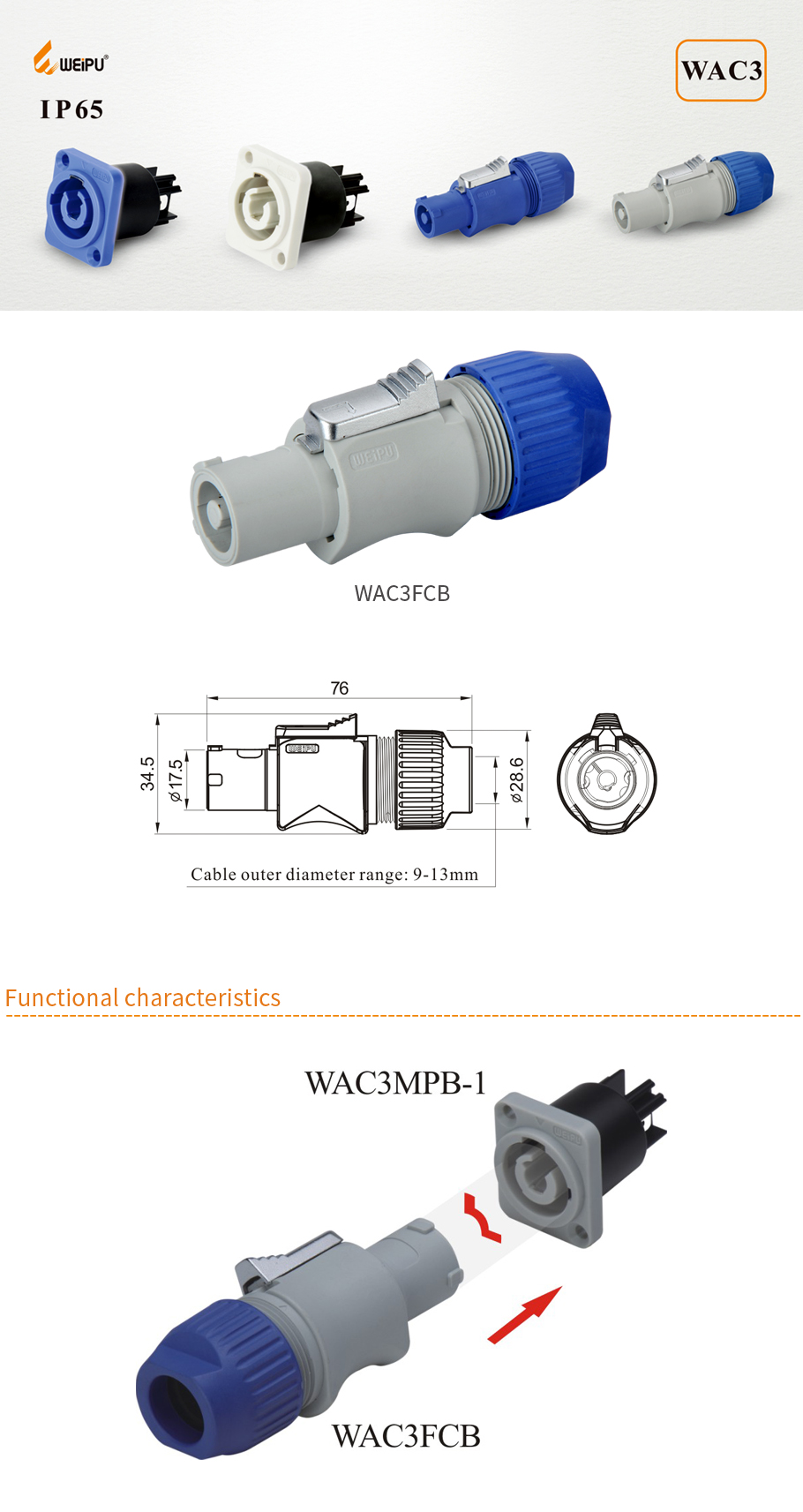

WAC3FCB Receptacle Bayonet IP65

Mate with WAC3MPB-1

Description

Coupling Bayonet
Shell Plug: Nylon66 Socket: PC
Contact material Brass with silver plating
Rated current (A) 20
Rated voltage (AC .V) 250
Test voltage (AC.V) 1 min 2500
Insulation resistance (MΩ) 2000
Mating cycle 1000
Temperature range -40°C~ + 85°C
IP range IP65
Termination Plug: screw, Rceptacle: 3/16″ flat tab terminals

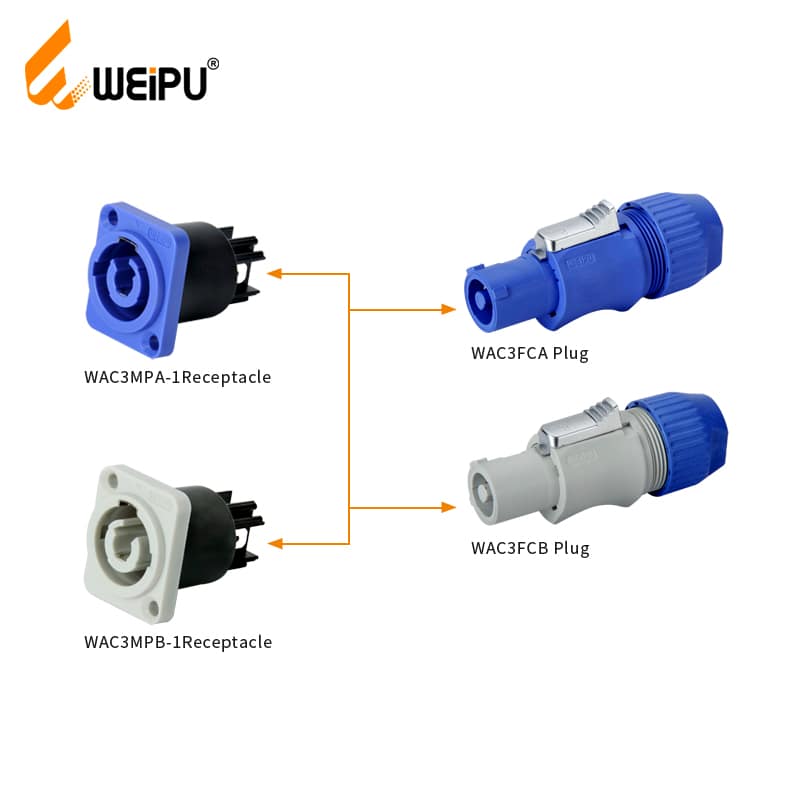

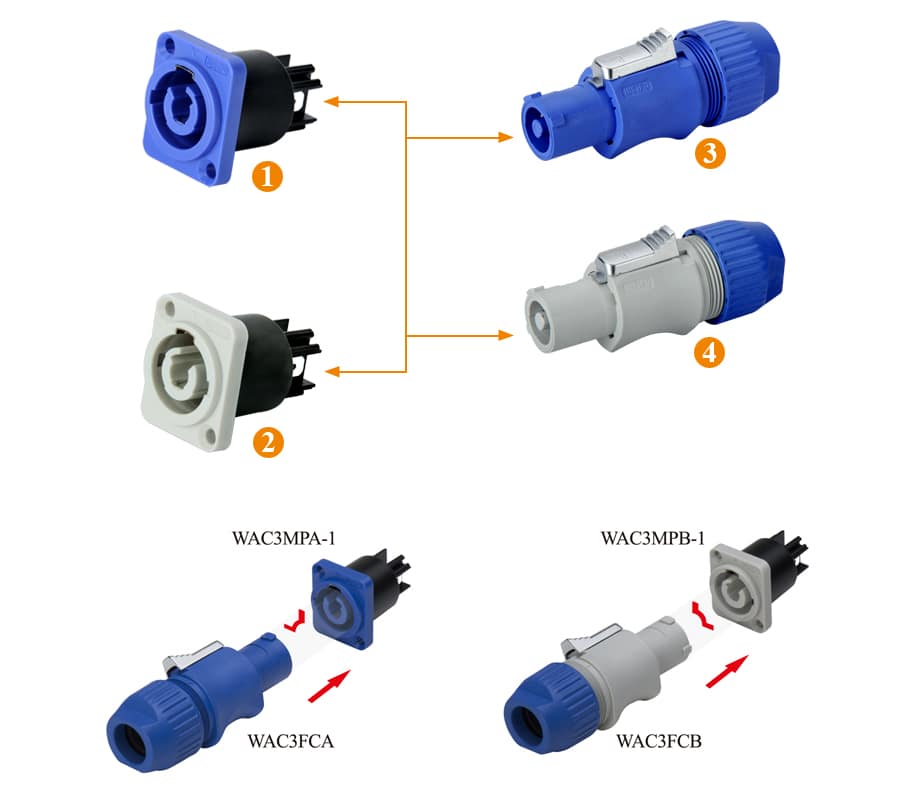

WAC3 Series configuration table(list)
01、WAC3MPA-1Receptacle
02、WAC3FCA Plug
03、WAC3MPB-1Receptacle
04、WAC3FCB Plug
