WEIPU WY-ZMQ Series Panel Receptacle

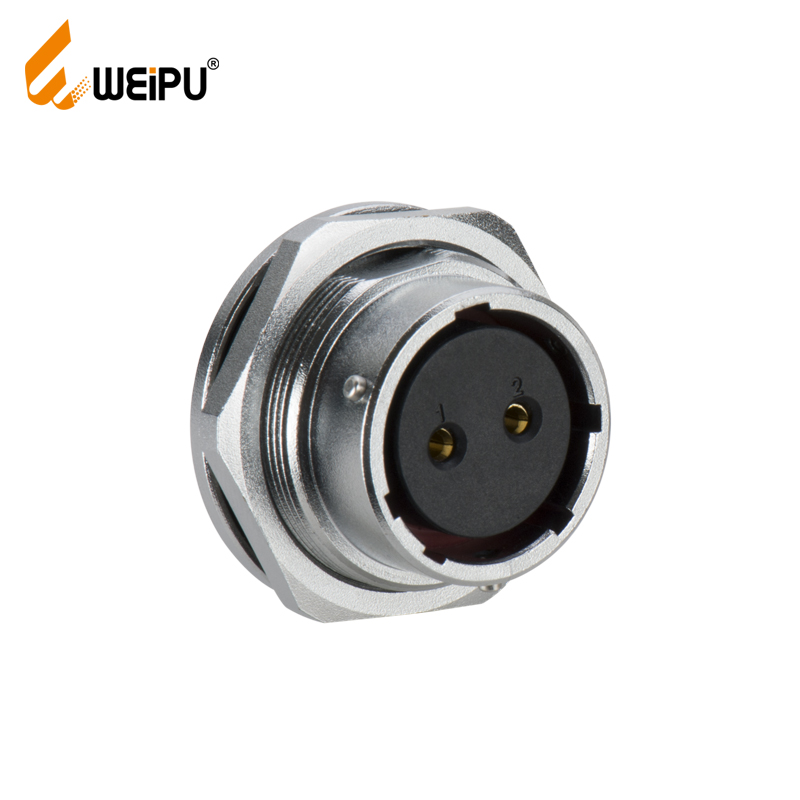

Front flange panel receptacle IP67, Threaded, Zinc alloy with chrome plating, PPS

Description

Coupling Threaded
Shell material Zinc alloy with chrome plating
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder:φ1、φ1.5、φ2.5、φ3.5、φ5,5mm;
Screw: φ2.5、φ3、φ3.5mm;
Crimp: φ1、φ1.5、φ2.5、φ3.5、φ5.5、φ10mm
Mating cycle 500
Temperature range -40°C 〜+ 85°C

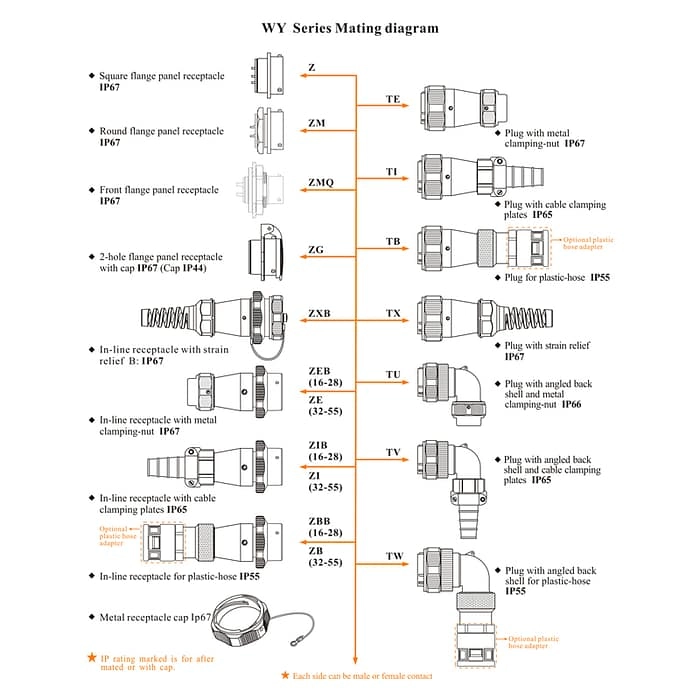

WY Series configuration table(list)
01、Plug with metal clamping-nut IP67 09、Round flange panel receptacle  IP67

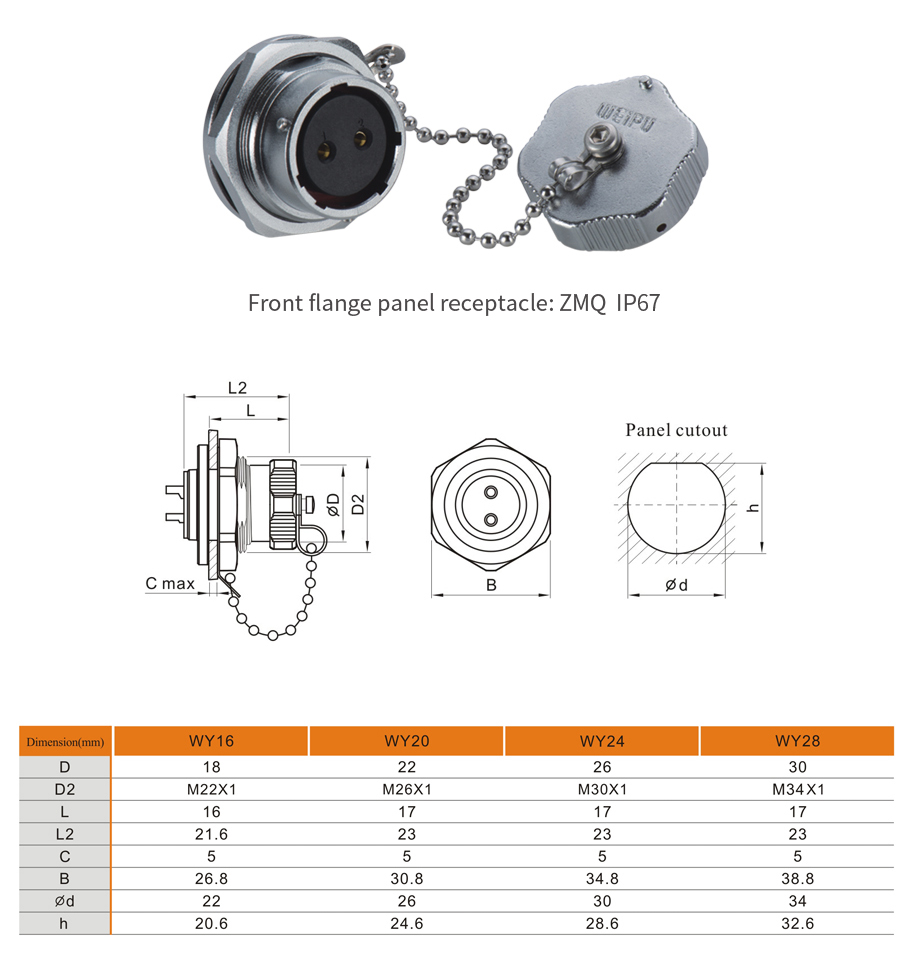

02、Plug with cable clamping plates  IP65 10、Front flange panel receptacle  IP67

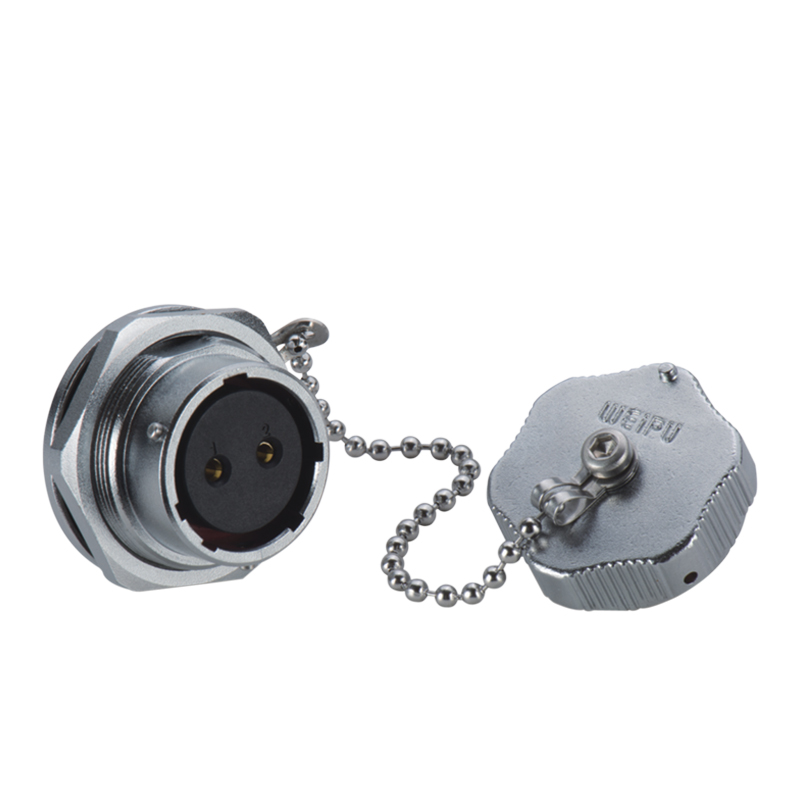

03、Plug with cable clamping plates  IP65 11、2-hole flange panel receptacle with cap IP67 (Cap IP44)
04、Plug with strain relief IP67 12、In-line receptacle with metal clamping-nut  IP67
05、Plug with angled back shell and metal clamping-nut IP66 13、In-line receptacle with cable clamping plates IP65
06、Plug with angled back shell and cable clamping plates IP65 14、In-line receptacle for plastic-hose IP55
06、Plug with angled back shell and cable clamping plates IP65 15、In-line receptacle with anti-bending sleeve IP67
07、Plug with angled back shell for plastic-hose IP55
08、Square flange panel receptacle  IP67

Solder contact specCrimp contact spec

In the realm of industrial connectivity, Weipu’s WY Series emerges as a pinnacle of reliability, seamlessly combining precision engineering with waterproof excellence. Similar to its counterparts, the WS Series, the WY Series stands as a testament to Weipu’s commitment to setting new standards in industrial connectivity.

Precision in Design:
The WY Series shares the robust casing design of the WS Series, ensuring durability and resilience in challenging industrial environments. This shared casing not only underscores Weipu’s dedication to maintaining consistency in quality but also reinforces the brand’s commitment to providing connectors that can endure the rigors of diverse applications.

Bayonet Locking and Waterproof Mastery – IP67 Rating:
What distinguishes the WY Series is its mastery in waterproofing combined with bayonet locking. With an impressive IP67 rating, these connectors ensure protection against dust and immersion in water up to a meter deep. The addition of bayonet locking provides a secure, quick, and tool-free connection, enhancing the overall efficiency of the system.

Versatility and Adaptability:
Weipu’s WY Series goes beyond robustness; it’s about adaptability. These connectors offer versatility in application, making them suitable for various industries such as marine, medical, and automation. The adaptability of the WY Series makes it a go-to choice for engineers and project managers seeking a connector solution that can meet the demands of their unique environments.

Global Trust and Recognition:
Weipu’s reputation for delivering high-performance connectors is globally recognized. The WY Series continues this legacy, earning the trust of industries worldwide. Whether it’s ensuring secure connections in marine applications or maintaining precision in medical equipment, the WY Series is the dependable choice.

Click for Details:
For a deeper understanding of the WY Series and to explore the full range of Weipu connectors, click here for details. Weipu remains dedicated to providing not just connectors but solutions that empower industries to connect with confidence.

In conclusion, the Weipu WY Series stands as a symbol of Weipu’s commitment to innovation, precision, and reliability. Combining bayonet locking for quick connections with waterproof and secure features, these connectors are engineered to navigate the challenges of modern industrial connectivity. Explore the WY Series and discover a new era in connecting with confidence.
