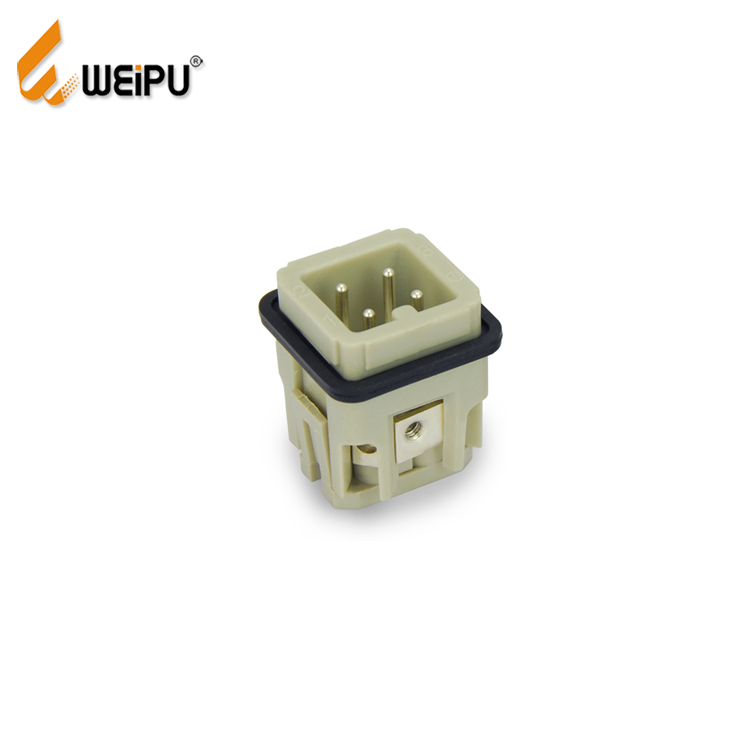

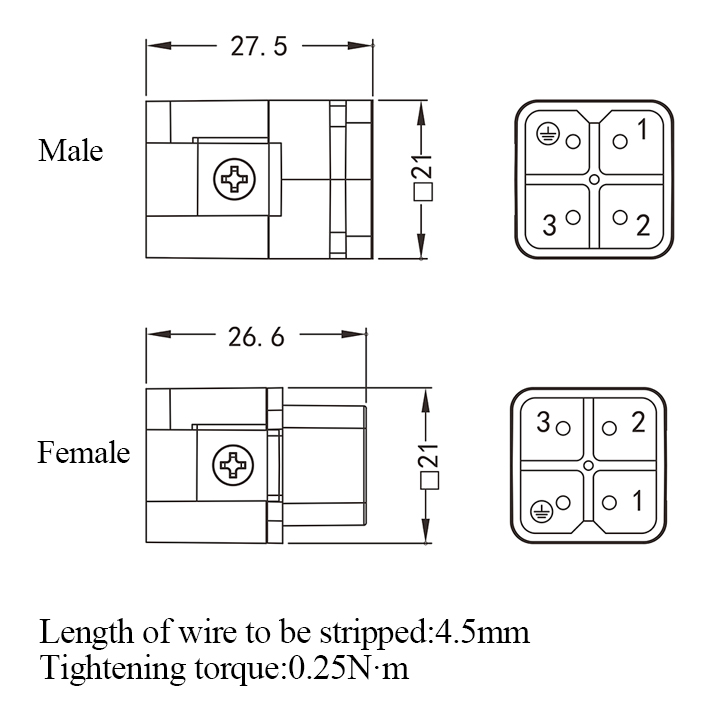

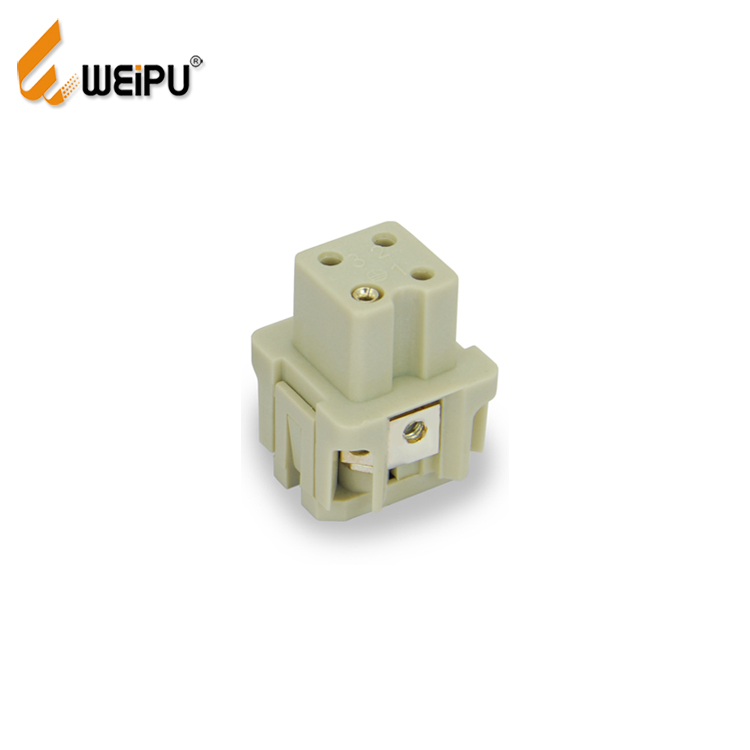

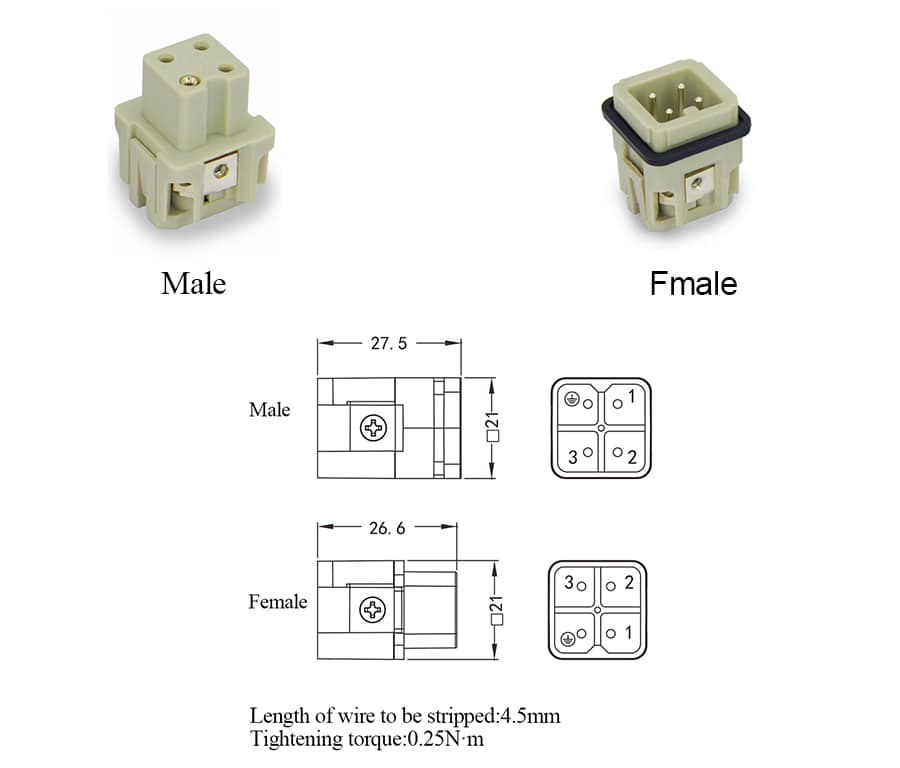

HA-003- HA-003-F Male and Female 10A 230/400v 3+PE Screw Contact Connector
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
| Specifications and approvals | |
| international standard： | IEC60664-1、IEC61984 |
| Number of contacts： | 3+PE、4+PE、10+pe、16+pe、32+PE |
| Rated current |
HA-003,HA-004:10A
HA-010,HA-016,HA-032:16A |
| Rated voltage |
HA-003,HA-004:250V/400V
HA-010,HA-016,HA-032:250V |
| Rated impulse voltage | 4kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10 Ohm |
| Material(insert) | polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA | 600V |
| Mating cycles | ≥500 |
| Material(contact) | Copper Alloy |
| Surface | Silver or Gold Plated |
| Contact resisance | ≤1mΩ |
| Terminal | Screw |
| Wire gauge |
0.75-2.5mm^2
18-14AWG |
| Stripping length | 7.5mm^2 |
| Terminal | Crimp |
| Wire gauge |
0.14-4mm^2
26-12AWG |
| Stripping length | 7.5mm^2 |
