WEIPU SP11 IP68 Cable Waterproof Connector

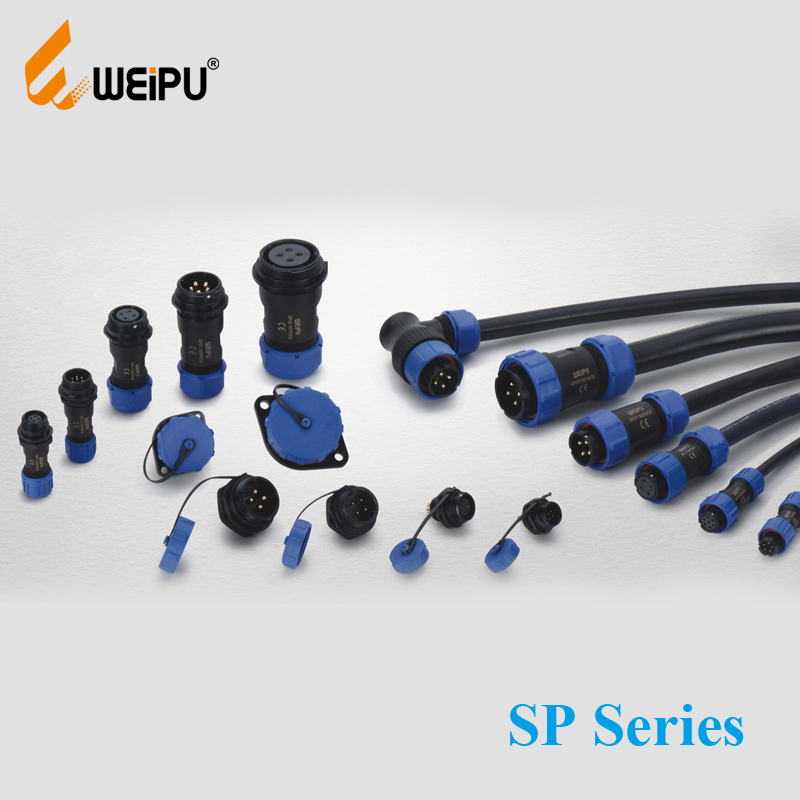

The SP Series connectors are all IP68 connectors, threaded coupling. SP11 is the smallest plastic shell IP68 waterproof connector, and this miniature connector is one of our most popular outdoor watertight connector.

◆ IP rating IP68

◆ Salt Spray Exposure

◆ Temperature range:-40°C 〜+ 85°C

◆ Rated Current And V:13A-3A ,250V-125V

Get A Quote

Get Product Catalogs

Description

Specification

Solution

Video

Document

Coupling	Threaded
Shell material	PC, Nylon66, fire resistance: V-0
Insert material	PPS, max temperature 260 °C
Contact material	Brass with gold plating
Termination	Solder: SP13, SP17, SP21, SP29 Crimp: SP17,SP21,SP29 Screw: SP21, SP29 （02.5,03,03.5mm contact）
Cable outer diameter range	SP11:4-6.5 SP13 I: 4-6.5mm,Ⅱ：5-8mm SP17: 6-10mm SP21: I: 4.5-7mm,II: 7-12mm SP29: 13-16mm
IP rating	IP68
Mating cycle	500
Temperature range	-40°C 〜+ 85°C
Insulation resistance	2000 MG

——————————————————————————————————————————————————————————————–

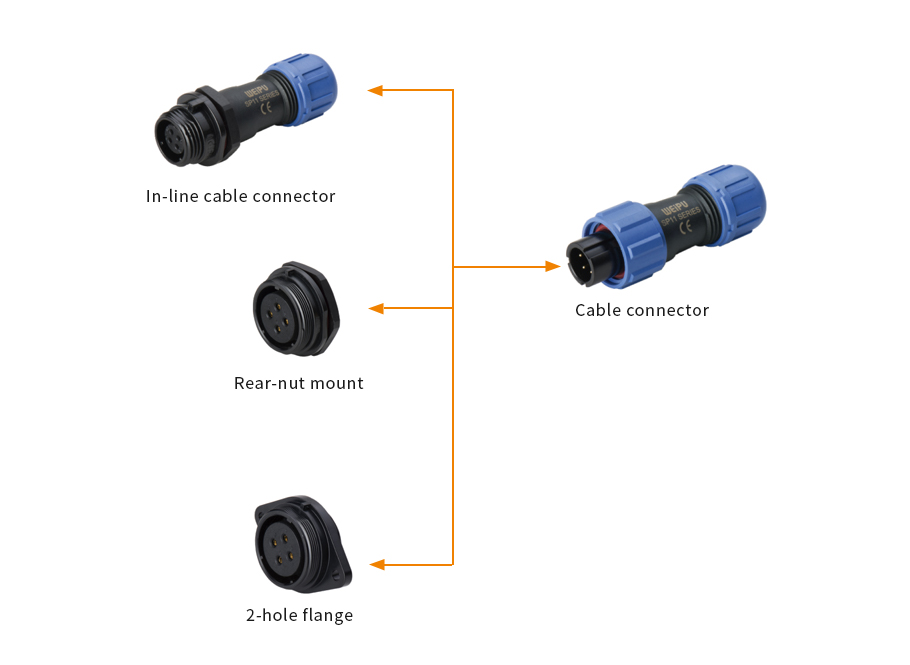

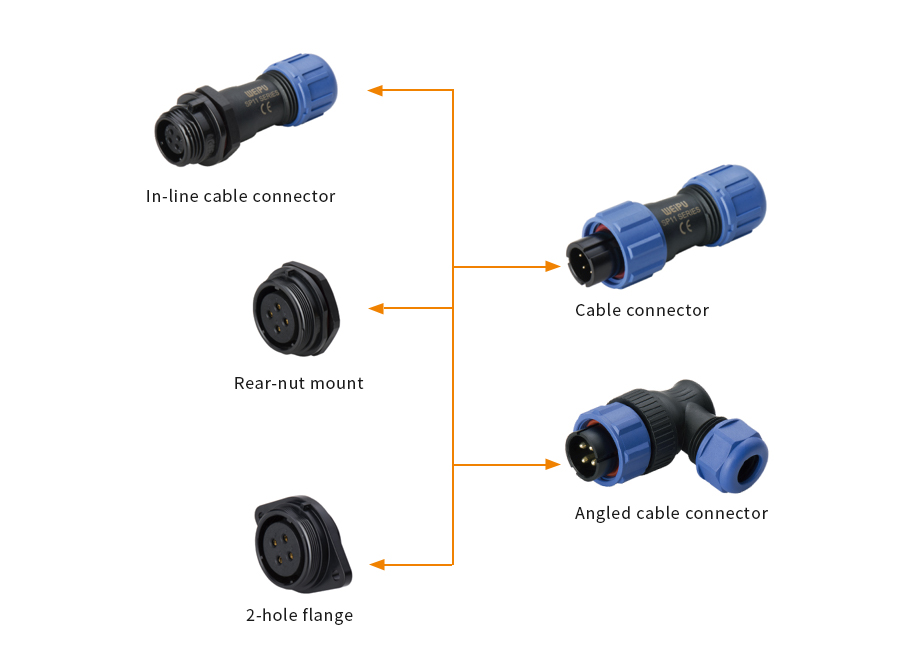

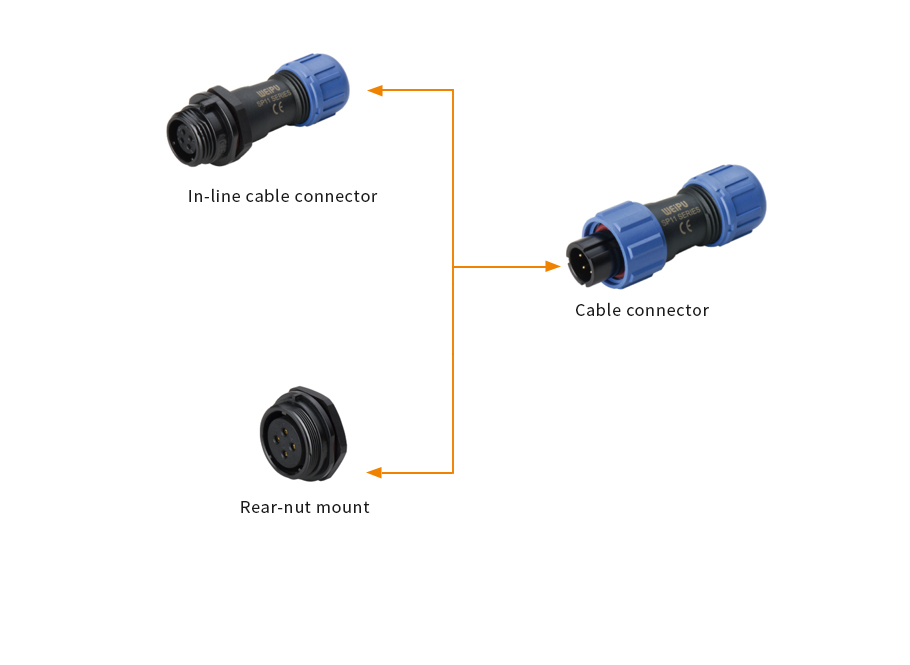

SP11 IP68 Series configuration table(list)

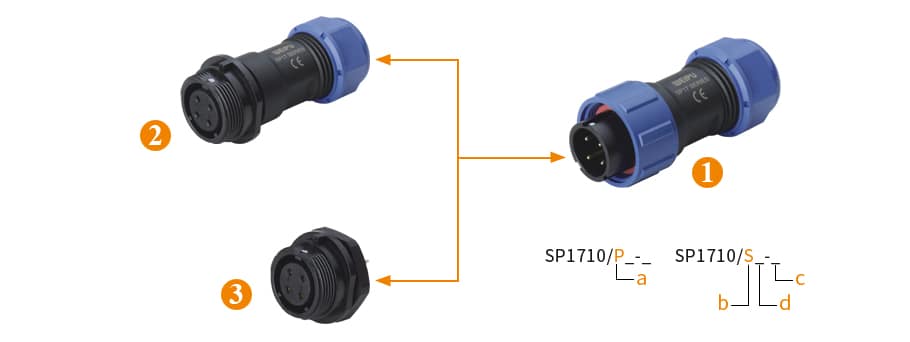

01、 Cable connector（>SP1110/P_ >SP1110/S_ ）	a、Male contact
02、 In-line cable connector（>SP1111/P_ >SP1111/S_ ）	b、Number of contact
03、 Rear-nut mount（>SP1112/P_ >SP1112/S_ ）	c、Fmale contact

——————————————————————————————————————————————————————————————–

SP13 IP68 Series configuration table(list)

01、 Cable connector（>SP1310/P_ _ _ >SP1310/S_ _ _ ）	a、Male contact
02、 In-line cable connector（>SP1311/P_ _ _ >SP1311/S_ _ _ ）	b、Cable outer diameter: I: 4-6.5mm(default, no mark), II: 5-8mm
03、 Rear-nut mount（>SP1312/P_ _ >SP1312/S_ _ ）	c、Number of contact
	d、Fmale contact

——————————————————————————————————————————————————————————————–

SP17 IP68 Series configuration table(list)

01、 Cable connector（>SP1710/P_-_ >SP1710/S_-_ ）	a、Male contact
02、 In-line cable connector（>SP1711/P_-_ >SP1711/S_-_ ）	b、Fmale contact
03、 Rear-nut mount（>SP1712/P_-_ >SP1712/S_-_ ）	c、1: solder(default, no mark), 3: crimp
	d、Number of contact

——————————————————————————————————————————————————————————————–

SP21 IP68 Series configuration table(list)

01、 Cable connector（>SP2110/P_ _-_ _ >SP2110/S_ _-_ _）	a、Male contact
02、 Angled cable connector（>SP2116/P_ _-_ >SP2116/S_ _-_ ）	b、Fmale contact
03、 In-line cable connector（>SP2111/P_ _-_ _ >SP2111/S_ _-_ _ ）	c、1: solder(default, no mark), 2: screw, 3: crimp
04、 Rear-nut mount（>SP2112/P_-_ _ >SP2112/S_-_ _ ）	d、Cable outer diameter: I: 4.5-7mm, II: 7-12mm(default, no mark)
05、 2-hole flange（>SP2113/P_-_ _ >SP2113/S_-_ _ ）	e、Number of contact

——————————————————————————————————————————————————————————————–

SP29 IP68 Series configuration table(list)

01、 Cable connector（>SP2910/P_-_ >SP2910/S_-_）	a、Male contact
02、 In-line cable connector（>SP2911/P_-_ >SP2911/S_-_）	b、Fmale contact
03、 Rear-nut mount（>SP2912/P_-_ >SP2912/S_-_ ）	c、1: solder(default, no mark), 2: screw, 3: crimp
04、 2-hole flange（>SP2913/P_-_ >SP2913/S_-_ ）	d、Number of contact

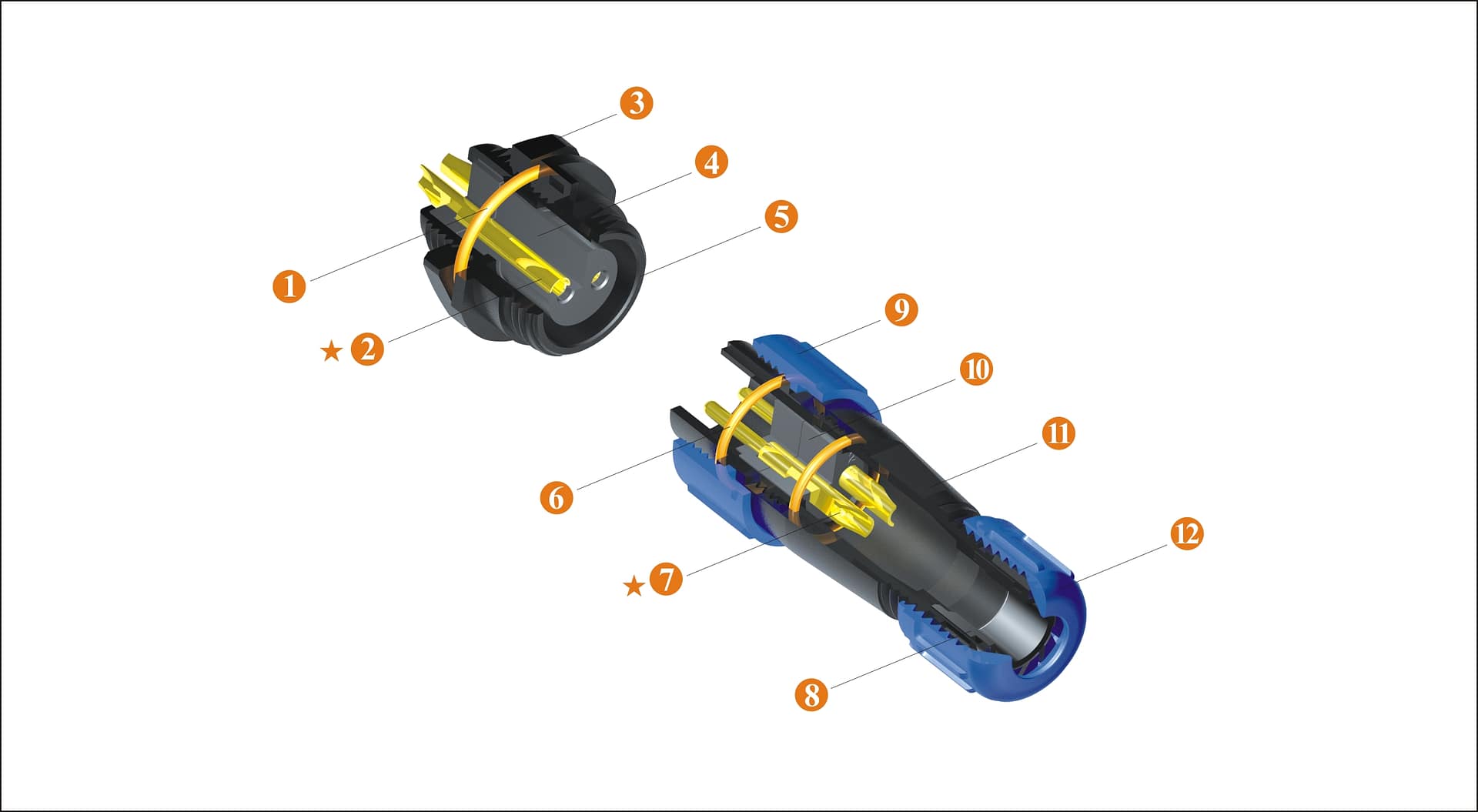

01、O ring	★07、Contact
★02、Contact	08、Rubber ring
03、Retaining nut	09、Locking nut
04、Insert	10、Insert
05、Panel connector shell	11、Back shell
06、O ring	12、Compression nut

★Each side can be male or female contact

——————————————————————————————————————————————————————————————–

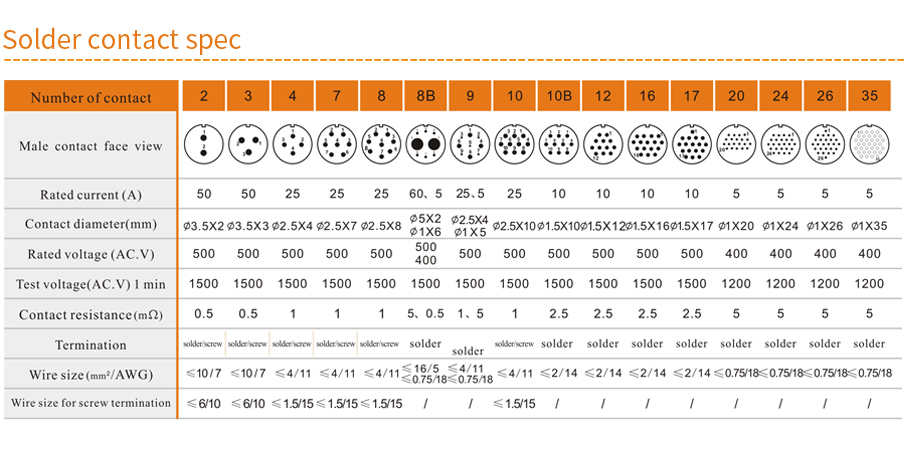

sp11 Solder contact spec

——————————————————————————————————————————————————————————————–

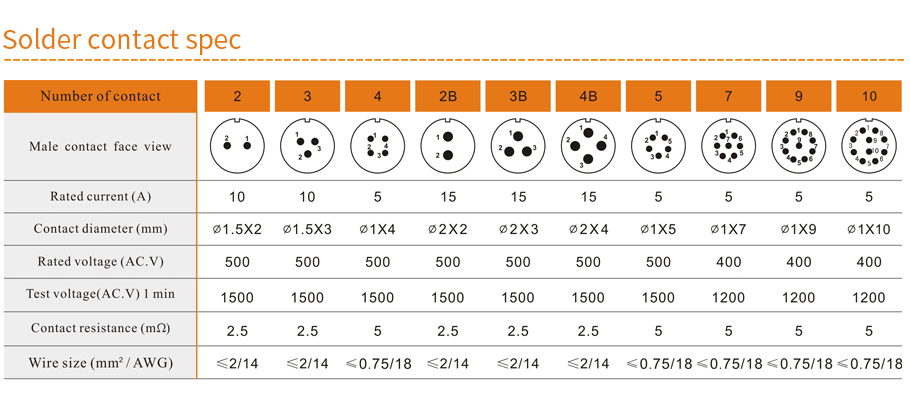

sp13 Solder contact spec

——————————————————————————————————————————————————————————————–

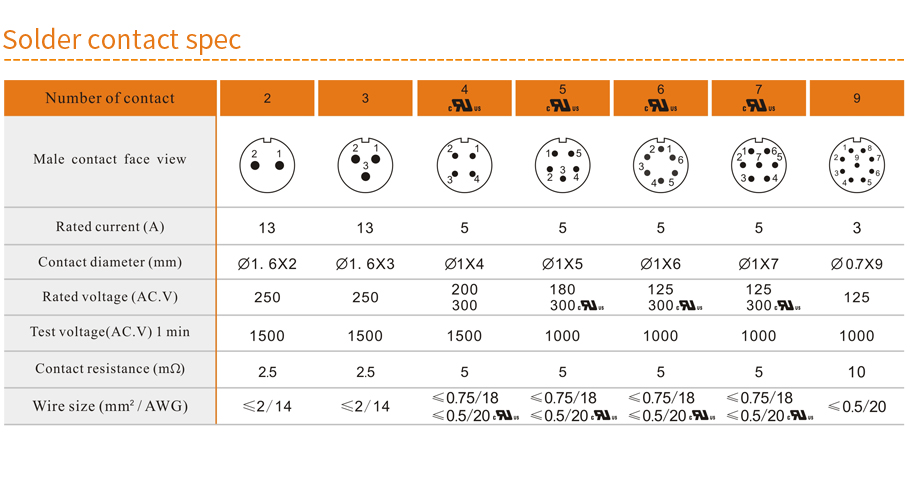

sp17 Solder contact spec

——————————————————————————————————————————————————————————————–

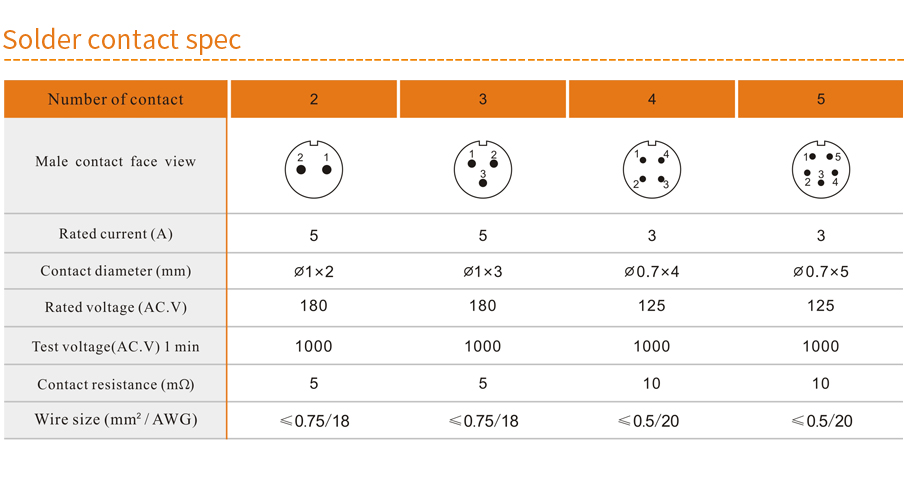

sp21 Solder contact spec

——————————————————————————————————————————————————————————————–

sp29 Solder contact spec

In the dynamic landscape of outdoor environments, connectivity demands a level of reliability that withstands the elements. Weipu’s SP Series emerges as a beacon of innovation, providing a robust solution for seamless connectivity in various harsh outdoor settings.

Key Features of Weipu SP Series :

Durable Shell Material:
The SP Series boasts a shell crafted from PC and PA66, exhibiting exceptional durability. The materials used meet the V-0 fire protection grade, ensuring safety and reliability even in challenging conditions.

Threaded Connection:
With a threaded connection mechanism, the SP Series ensures a secure and stable linkage. This feature is particularly valuable in outdoor scenarios where vibrations and movement are prevalent.

Waterproof Excellence – IP68 Rating:
One of the standout features of the SP Series is its waterproof capability. With an impressive IP68 rating, these connectors provide an impermeable barrier against water and dust, making them ideal for deployment in outdoor environments where exposure to the elements is inevitable.

Versatile Applications:
The SP Series finds its application across various industries requiring reliable connectivity in outdoor conditions. From outdoor lighting systems to agricultural machinery and beyond, the SP Series excels in delivering consistent performance.

Engineering for Reliability:
Weipu’s commitment to quality is evident in the SP Series. The connectors are engineered to meet the highest standards, ensuring they perform optimally in diverse environmental challenges.

Explore the SP Series for Yourself:
For a detailed understanding of the different models within the SP Series and how they cater to specific requirements, click for details. Weipu invites you to discover a new level of reliability in outdoor connectivity.

Conclusion:
Weipu SP Series stands as a testament to the brand’s dedication to innovation and quality. With a focus on durability, threaded connection, and waterproof excellence, these connectors redefine what’s possible in outdoor connectivity.
