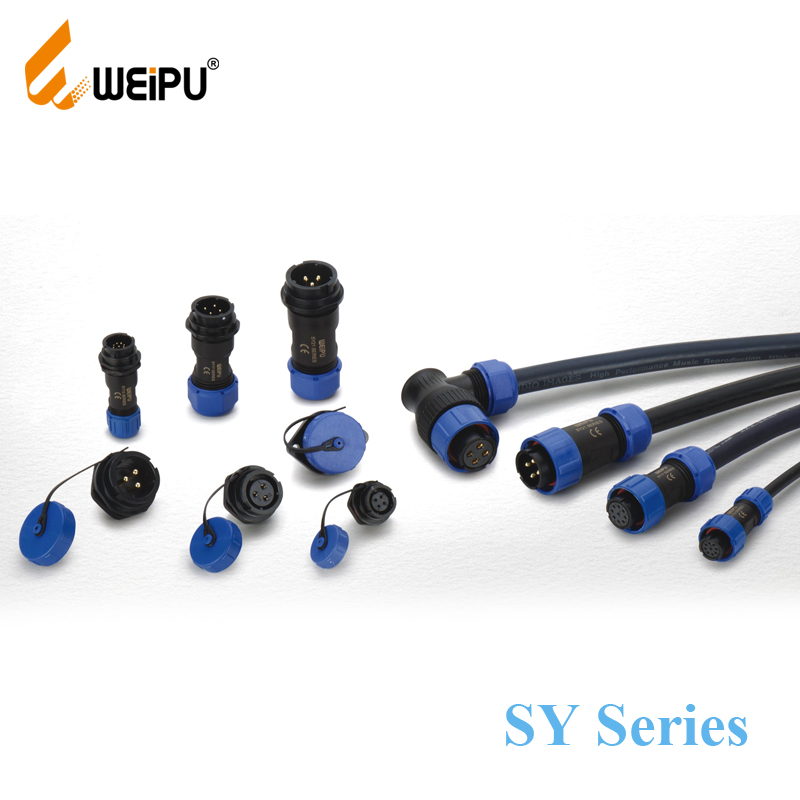

WEIPU SY Series Waterproof Connector

WEIPU SY series is an IP55-67 waterproof connector with bayonet coupling. SY Series are very robust connectors, designed for indoor and outdoor, any harsh environment. The bayonet coupling features quick locking and anti-vibration, and is a high-end connector compared to WF and WS.

Description

Coupling Bayonet
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder: SY13, SY17, SY21               Crimp: SY 17
Screw: SY21(φ3mm contact)
Cable outer diameter range SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm
IP rating IP67
Mating cycle 500
Temperature range -40°C~ + 85°C
Insulation resistance 2000 MQ

——————————————————————————————————————————————————————————————–

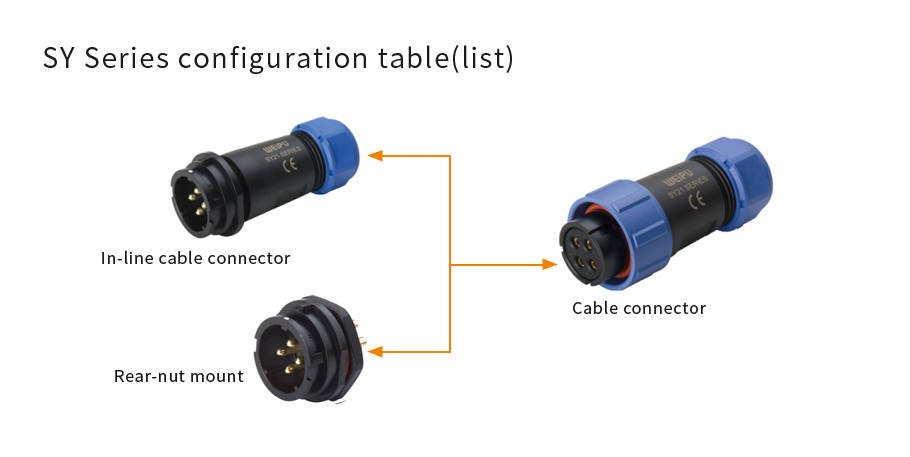

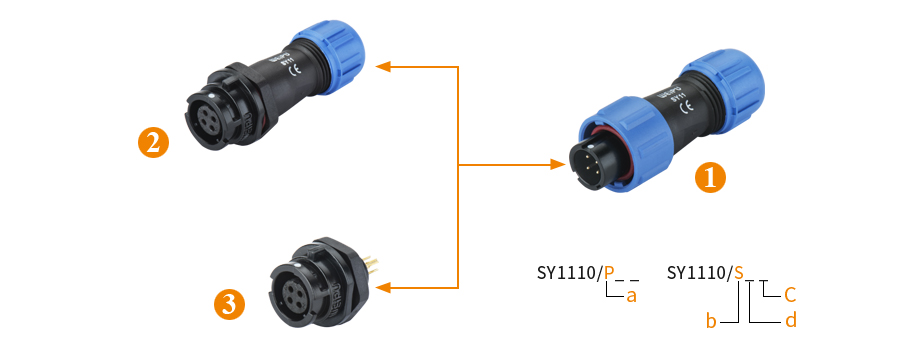

SY11 IP67 Series configuration table(list)
01、Cable connector(>SY1110/P_ _     >SY1110/S_ _ ) a、Male contact
02、In-line cable connector(>SY1111/P_ _    >SY1111/S_ _ ) b、Fmale contact
03、Rear-nut mount(>SY1112/P_     >SY1112/S_ ) c、Cable outer diameter: 4-6.5mm
b、Number of contact

——————————————————————————————————————————————————————————————–

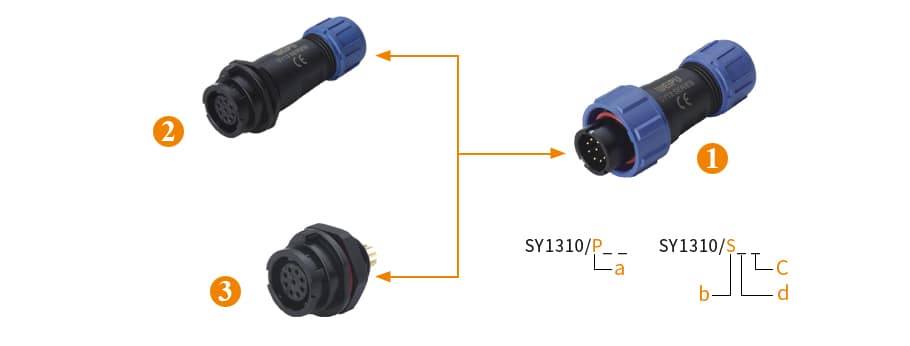

SY13 IP67 Series configuration table(list)
01、Cable connector(>SY1310/P_ _     >SY1310/S_ _ ) a、Male contact
02、In-line cable connector(>SY1311/P_ _    >SY1311/S_ _ ) b、Fmale contact
03、Rear-nut mount(>SY1312/P_     >SY1312/S_ ) c、Cable outer diameter: I:4-6.5mm(default, no mark), II:5-8mm
b、Number of contact

——————————————————————————————————————————————————————————————–

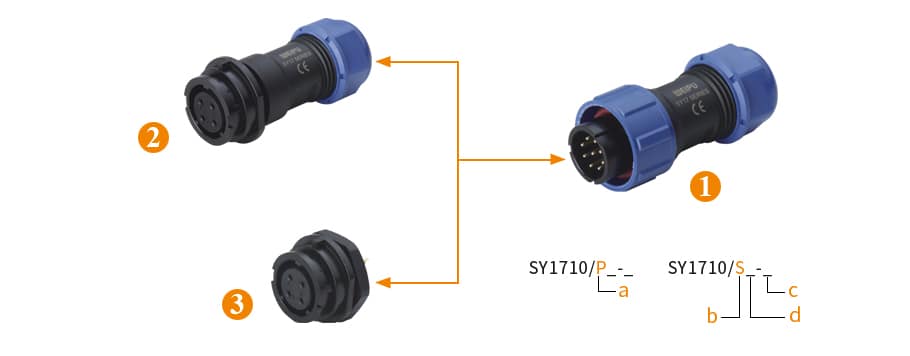

SY17 IP67 Series configuration table(list)
01、Cable connector(>SY1710/P_-_     >SY1710/S_-_ ) a、Male contact
02、In-line cable connector(>SY1711/P_-_    >SY1711/S_-_ ) b、Fmale contact
03、Rear-nut mount(>SY1712/P_     >SY1712/S_ ) c、1: solder(default, no mark), 3: crimp
b、Number of contact

——————————————————————————————————————————————————————————————–

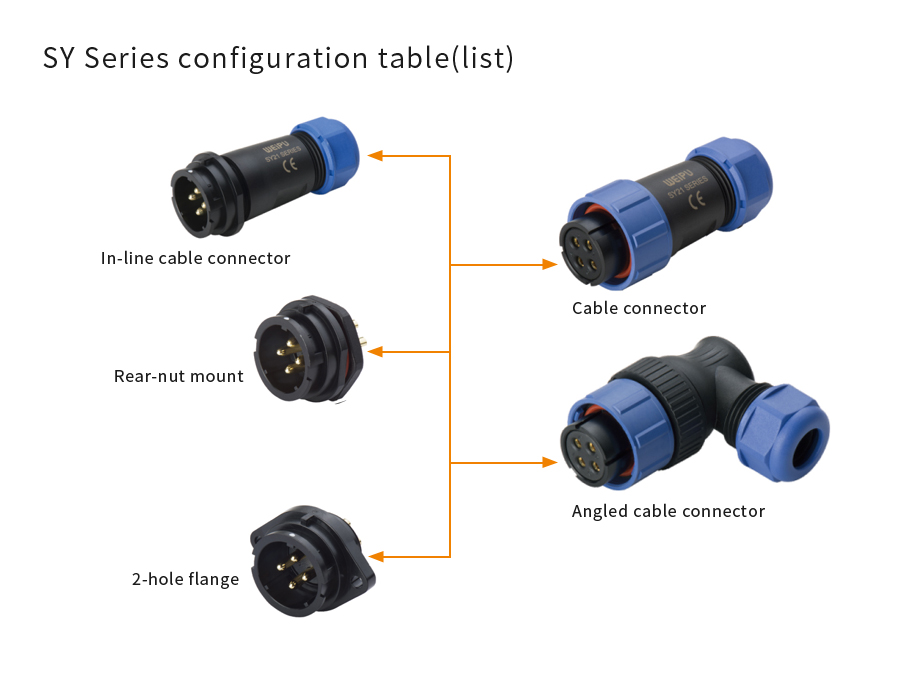

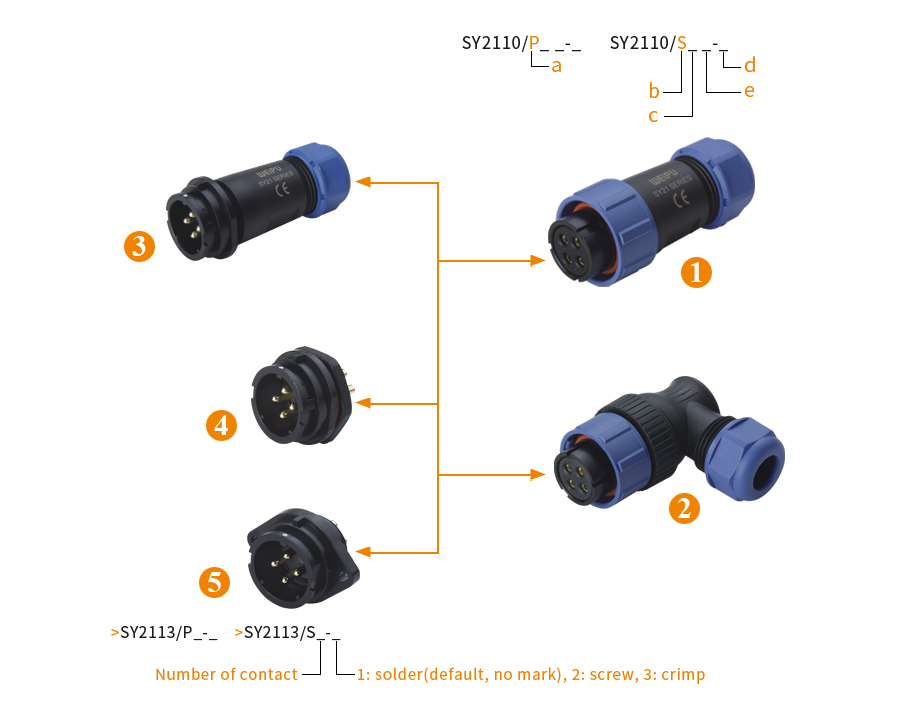

SY21 IP67 Series configuration table(list)
01、Cable connector(>SY2110/P_ _-_     >SY2110/S_ _-_ ) a、Male contact
02、Angled cable connector(>SY2116/P_ _-_     >SY2116/S_ _-_ ) b、Fmale contact
03、In-line cable connector (>SY2111/P_ _-_    >SY2111/S_ _-_ ) c、Number of contact
04、Rear-nut mount(>SY2112/P_-_     >SY2112/S_-_ ) d、1: solder(default, no mark), 2: screw, 3: crimp
05、2-hole flange(>SY2113/P_-_    >SY2113/S_-_ ) e、Cable outer diameter:  I: 4.5-7mm, II: 7-12mm(default, no mark)

——————————————————————————————————————————————————————————————–

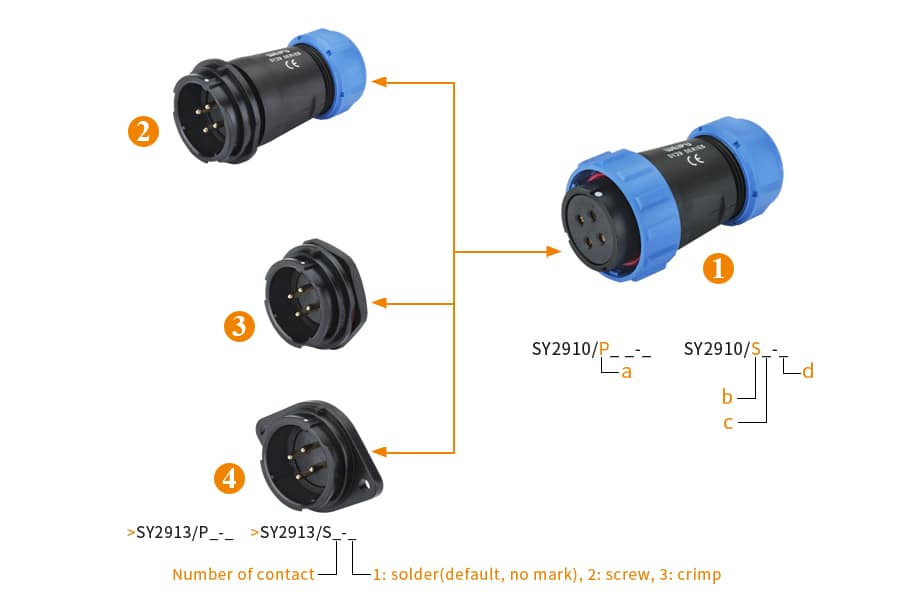

SY29 IP67 Series configuration table(list)
01、Cable connector(>SY2910/P_ _-_     >SY2910/S_-_ ) a、Male contact
02、In-line cable connector(>SY2911/P_ _-_    >SY2911/S_-_ ) b、Fmale contact
03、Rear-nut mount (>SY2912/P_-_     >SY2912/S_-_ ) c、Number of contact
04、2-hole flange(>SY2913/P_-_    >SY2913/S_-_ ) d、1: solder(default, no mark), 2: screw, 3: crimp

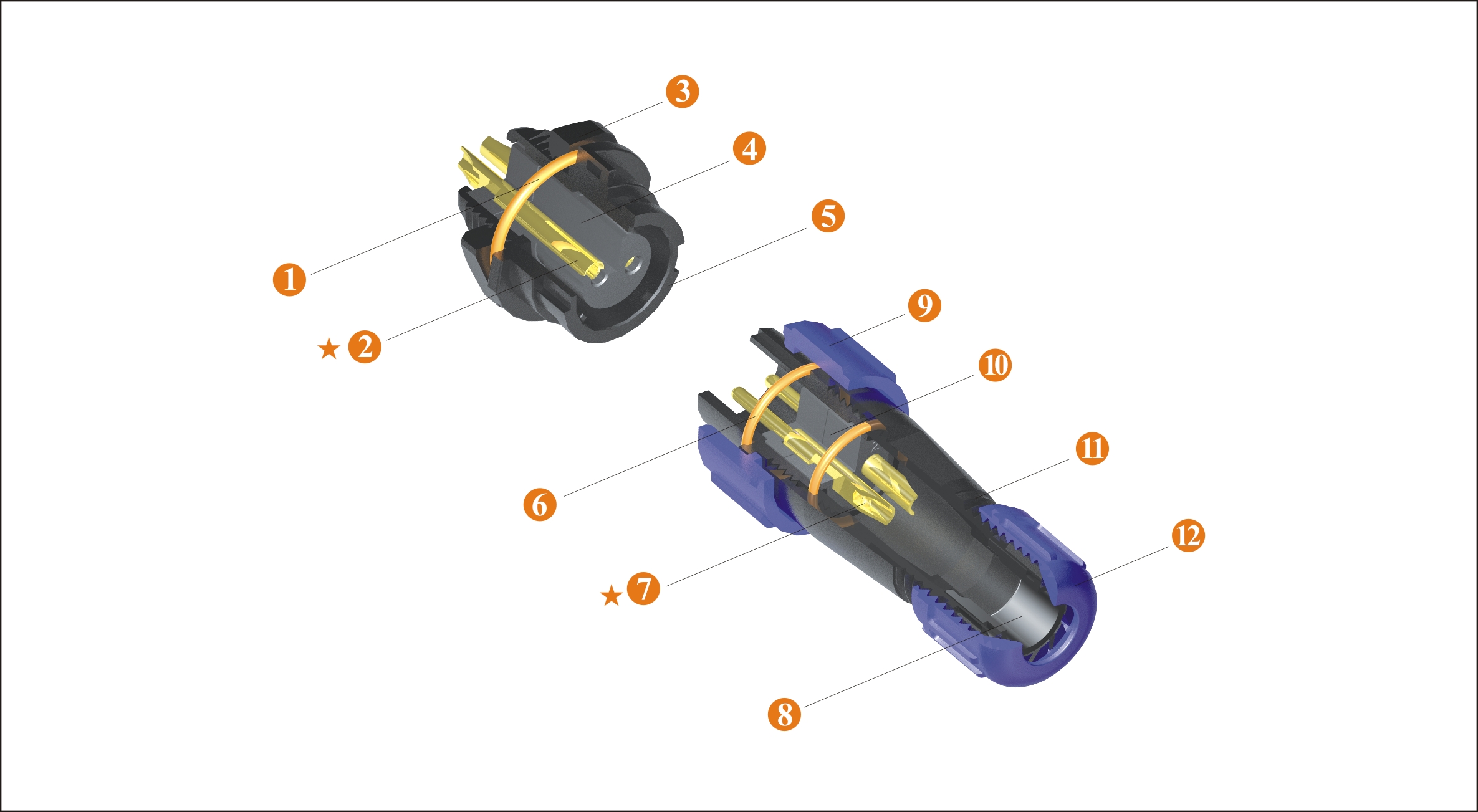

01、O ring ★07、Contact
★02、Contact 08、Rubber ring
03、Retaining nut 09、Locking nut
04、Insert 10、Insert
05、Panel connector shell 11、Back shell
06、O ring 12、Compression nut

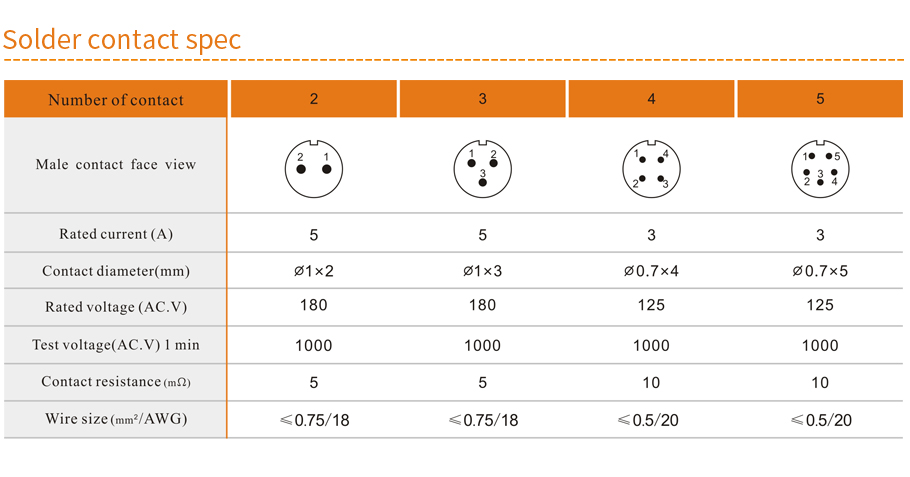

sy11 Solder contact spec

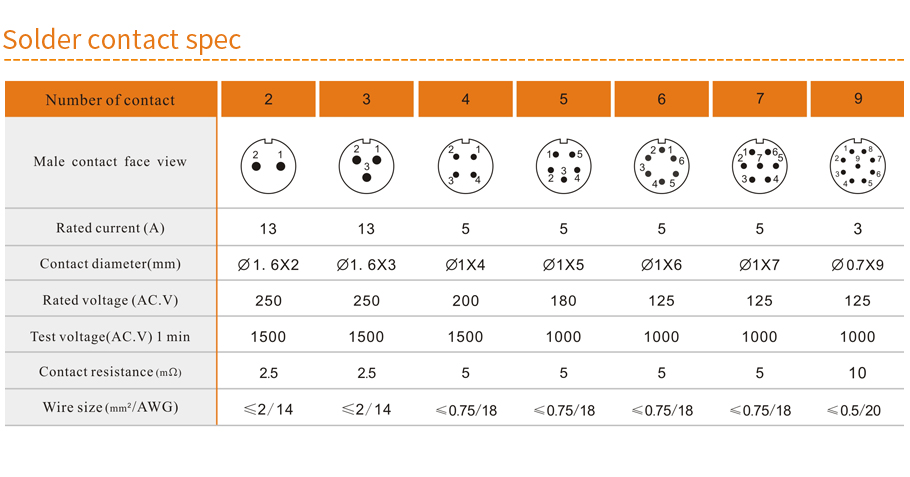

sy13 Solder contact spec

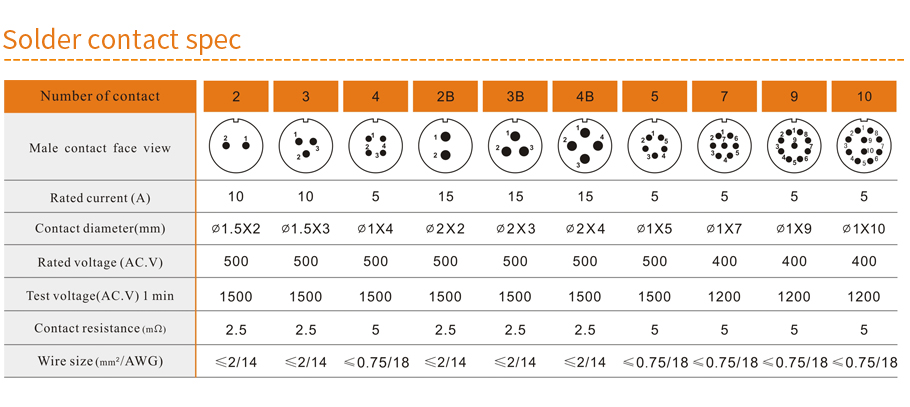

sy17 Solder contact spec

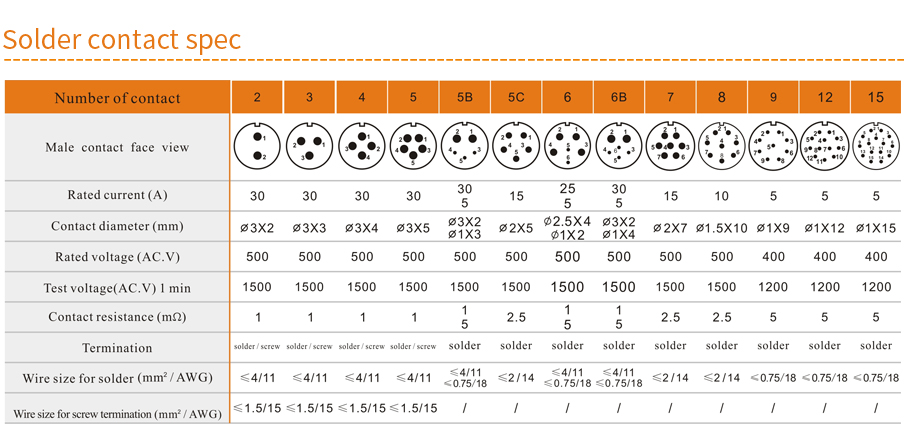

sy21 Solder contact spec

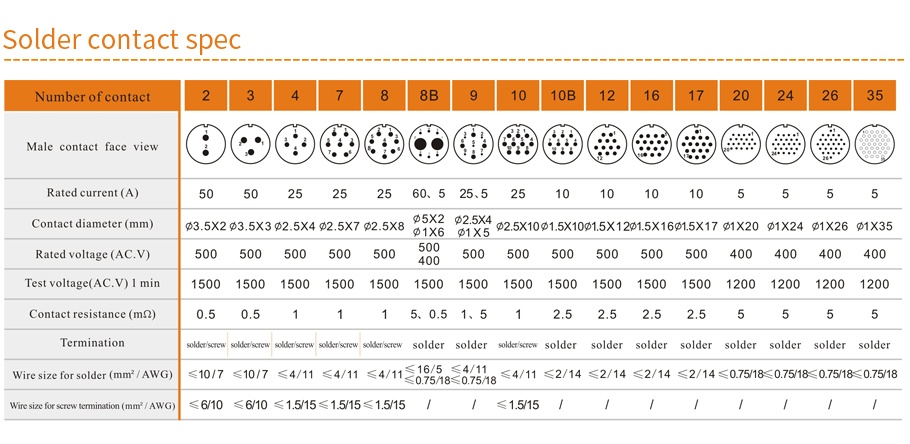

sy29 Solder contact spec
