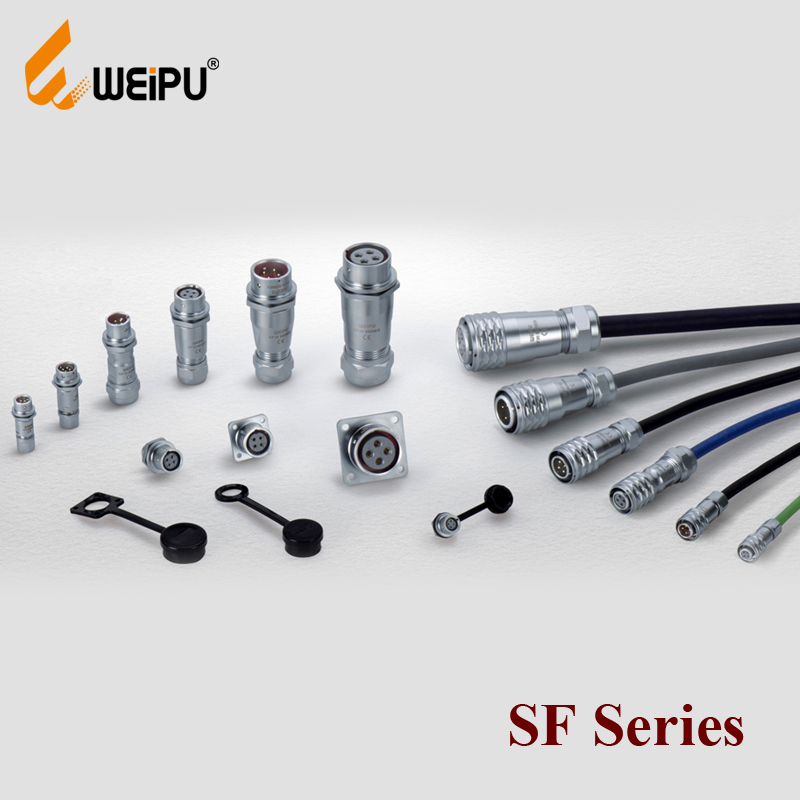

SF series push-pull coupling,High precision,brass with chrome plating IP44,IP67
SF20 series is IP67 connector made of brass with cChrome plating, especially designed for the high-end market. With push and pull coupling, it is one of our most popular waterproof connectors.
This series is available for cable to cable (in-line) and cable to panel connection. Each side can choose from male or female contact.
| Coupling | Push-pull |
| Shell material | Brass with chrome plating |
| Insert material | PPS max temperature 260℃ |
| Contact material | Brass with gold plating |
| Termination |
Solder:SF6,SF8,SF10,SF12,SF16,SF20
Crimp:SF16,SF20 Screw:SF20(2.5mm contact) |
| Cable outer diameter range |
SF6:3-4mm SF8:4-5mm
SF10:4-6.5mm SF12:I:4-6.5mm，II:5-8mm SFl6 I:5-8mm II:8-12mm SF20 I:8-12mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | 40℃~+85℃ |
| Insulation resistance | 2000M(ohm) |
——————————————————————————————————————————————————————————————–

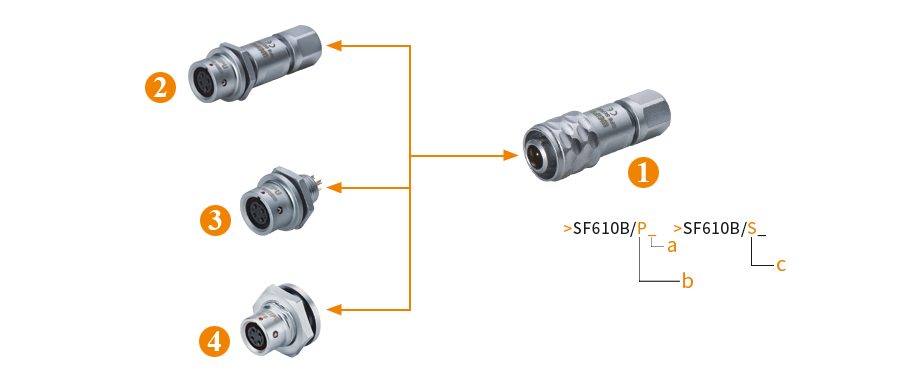

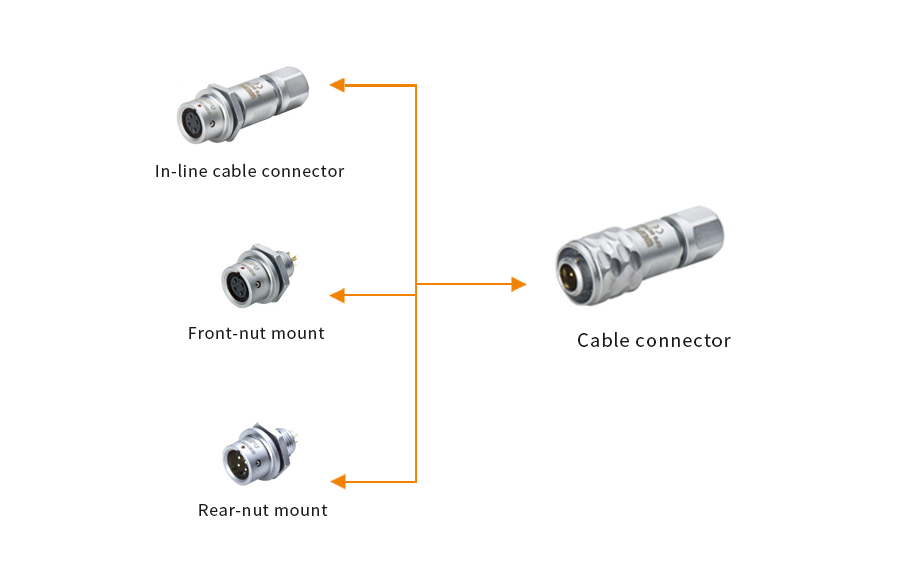

| SF6 IP67 Series configuration table(list) | |

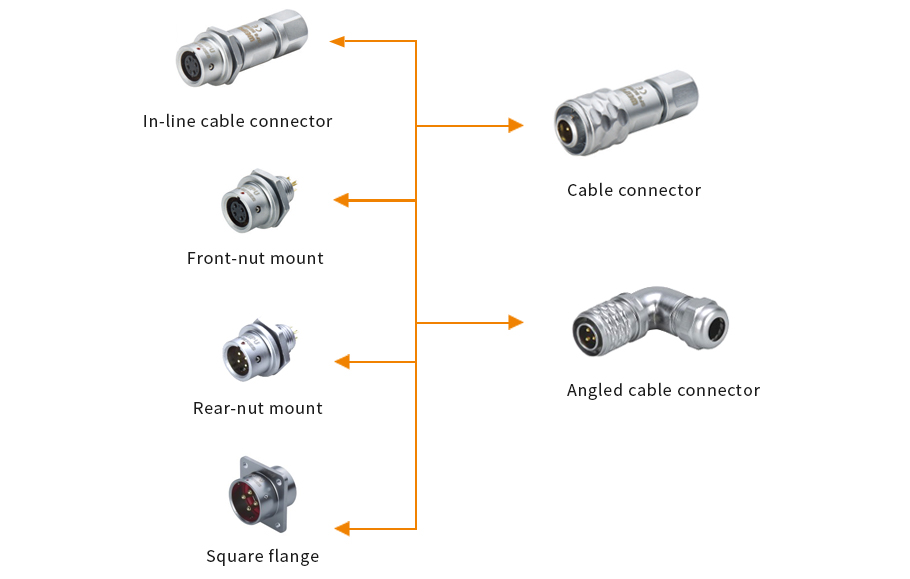

| 01、 Cable connector（>SF610/P_ _ >SF610/S_ _） | a、Number of contact |
| 02、 In-line cable connector（>SF611/P_ _ >SF611/S_ _） | b、Male contact |
| 03、 Rear-nut mount（>SF612/P_ _ >SF612/S_ _） | c、Fmale contact |
| 04、 Front-nut mount（>SF615/P_ _ >SF615/S_ _） | |
——————————————————————————————————————————————————————————————–

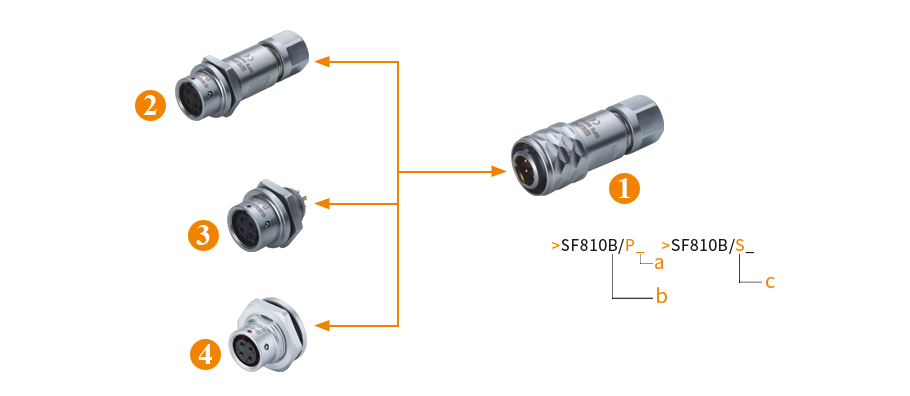

| SF8 IP67 Series configuration table(list) | |
| 01、 Cable connector（>SF810/P_ _ >SF810/S_ _） | a、Number of contact |
| 02、 In-line cable connector（>SF811/P_ _ >SF811/S_ _） | b、Male contact |
| 03、 Rear-nut mount（>SF812/P_ _ >SF812/S_ _） | c、Fmale contact |
| 04、 Front-nut mount（>SF815/P_ _ >SF815/S_ _） | |
——————————————————————————————————————————————————————————————–

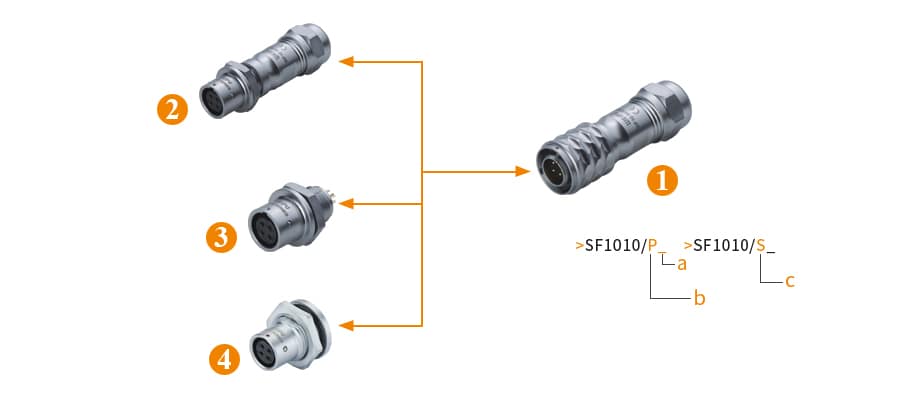

| SF10 IP67 Series configuration table(list) | |
| 01、 Cable connector（>SF1010/P_ _ >SF1010/S_ _） | a、Number of contact |
| 02、 In-line cable connector（>SF1011/P_ _ >SF1011/S_ _） | b、Male contact |
| 03、 Rear-nut mount（>SF1012/P_ _ >SF1012/S_ _） | c、Fmale contact |
| 04、 Front-nut mount（>SF1015/P_ _ >SF1015/S_ _） | |
——————————————————————————————————————————————————————————————–

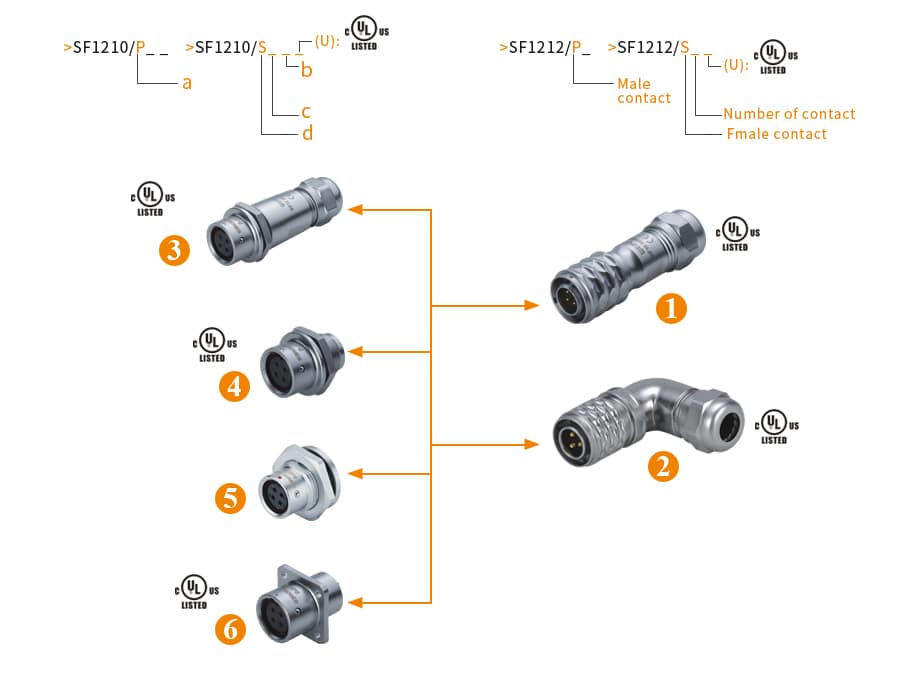

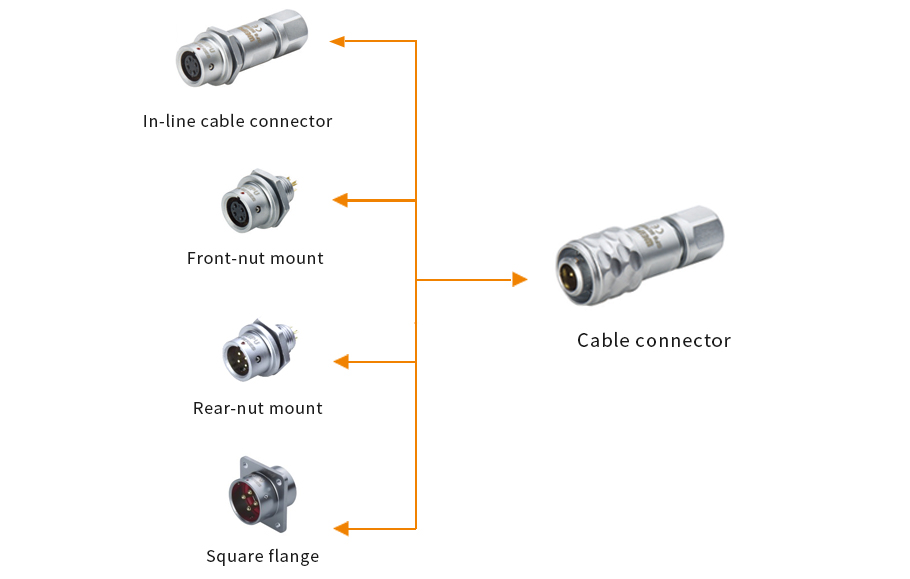

| SF12 IP67 Series configuration table(list) | |
| 01、 Cable connector（>SF1210/P_ _ >SF1210/S_ _ _） | a、Male contact |
| 02、 Angled cable connector（>SF1214/P_ Ⅱ >SF1214/S_ Ⅱ_ ） | b、Cable outer diameter(Ⅰ: 4-6.5mm，Ⅱ: 5-8mm) |
| 03、 In-line cable connector（>SF1211/P_ _ >SF1211/S_ _ _） | c、Number of contact |
| 04、 Rear-nut mount（>SF1212/P_ >SF1212/S_ _） | d、Fmale contact |
| 05、 Front-nut mount（>SF1215/P_ Ⅱ >SF1215/S_ Ⅱ） | |
| 06、 Square flange（>SF1213/P_ >SF1213/S_ _） | |
——————————————————————————————————————————————————————————————–

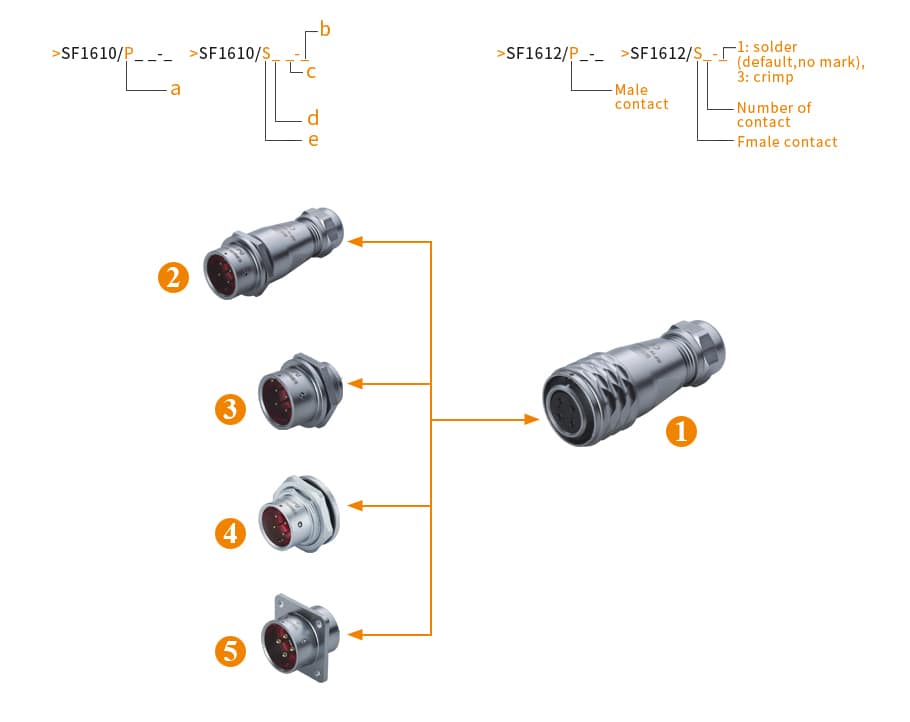

| SF16 IP67 Series configuration table(list) | |
| 01、 Cable connector（>SF1610/P_ _-_ >SF1610/S_ _-_） | a、Male contact |
| 02、 In-line cable connector（>SF1611/P_ _-_ >SF1611/S_ _-_ ） | b、1: solder(default,no mark), 3: crimp |
| 03、 Rear-nut mount（>SF1612/P_-_ >SF1612/S_-_） | c、Cable outer diameter(Ⅰ: 5-8mm，Ⅱ: 8-12mm) |
| 04、 Front-nut mount（>SF1615/P_-_ >SF1615/S_-_） | d、Number of contact |
| 05、 Square flange（>SF1613/P_-_ >SF1613/S_-_） | e、Fmale contact |
——————————————————————————————————————————————————————————————–

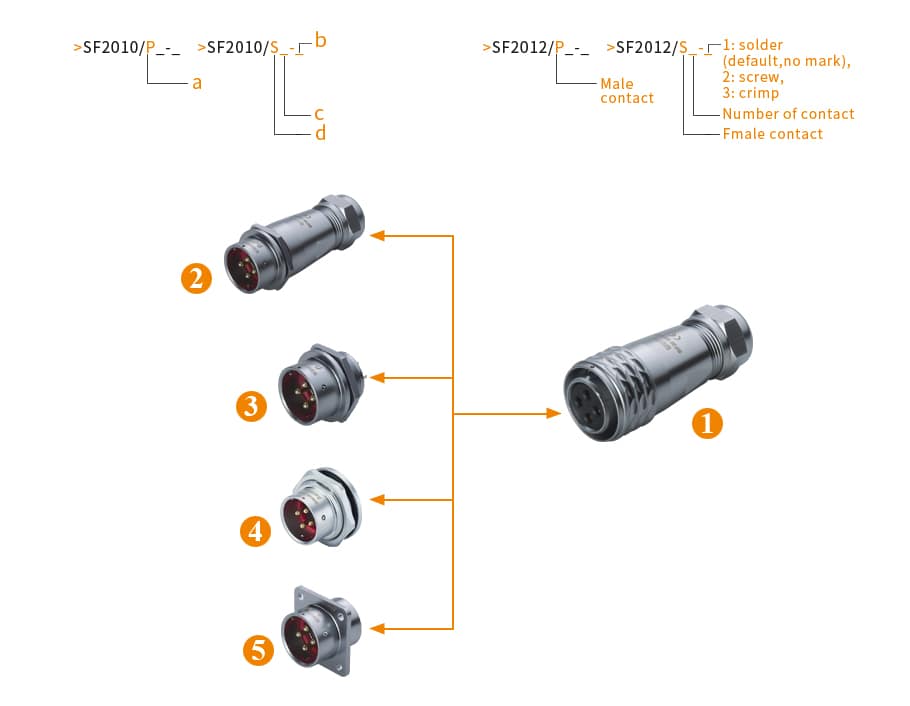

| SF20 IP67 Series configuration table(list) | |
| 01、 Cable connector（>SF2010/P_ _-_ >SF2010/S_ _-_） | a、Male contact |
| 02、 In-line cable connector（>SF2011/P_-_ >SF2011/S_-_ ） | b、1: solder(default,no mark), 2: screw, 3: crimp |
| 03、 Rear-nut mount（>SF2012/P_-_ >SF2012/S_-_） | c、Number of contact |
| 04、 Front-nut mount（>SF2015/P_-_ >SF2015/S_-_） | d、Fmale contact |
| 05、 Square flange（>SF2013/P_-_ >SF2013/S_-_） | |

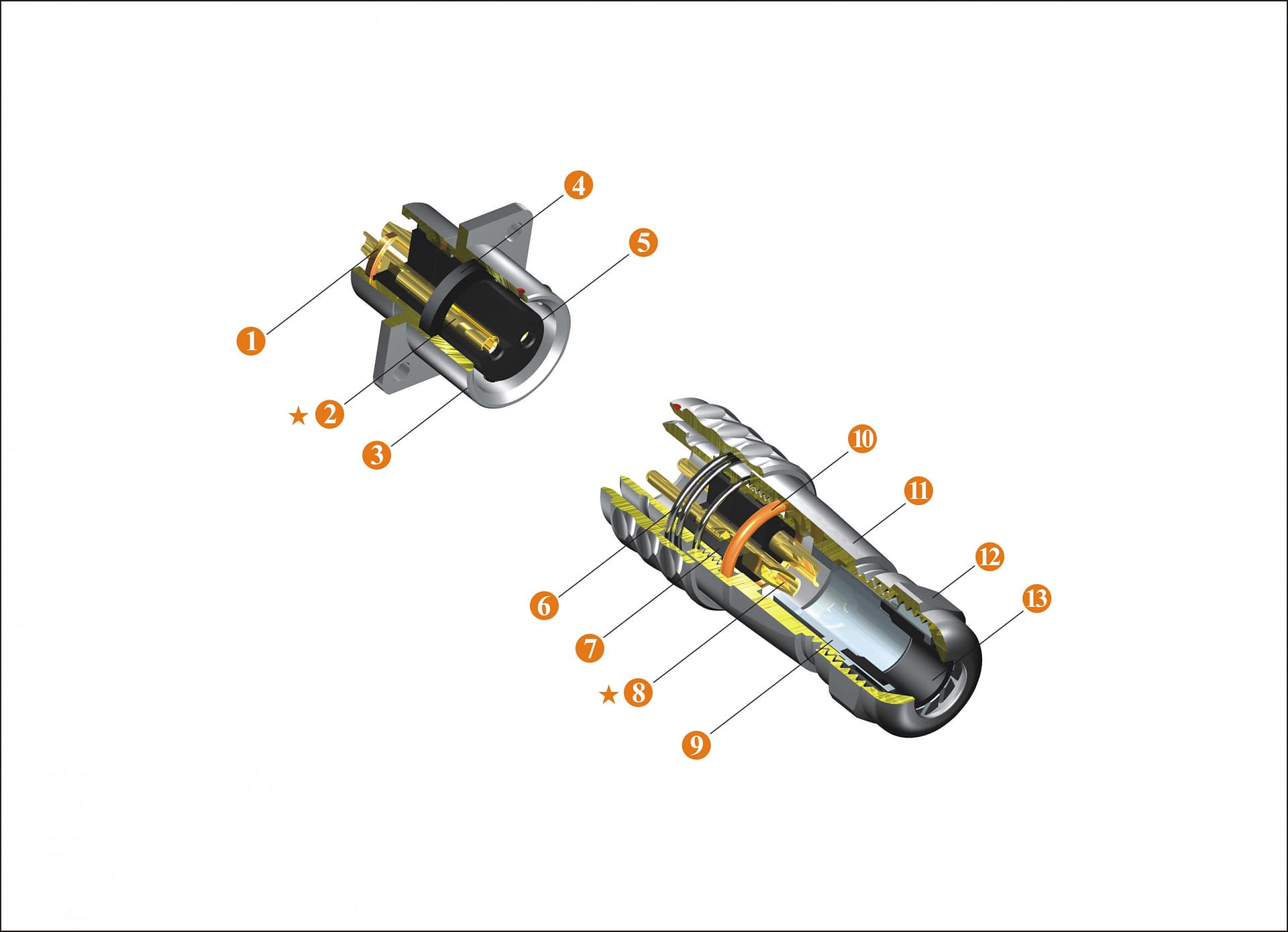

| 01、Insert retainer | ★08、Contact |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、O ring |
| 04、Inter facial seal | 11、Back shell |
| 05、Insert | 12、Compression nut |
| 06、Coupling spring | 13、Rubber ring |
| 07、Insert |

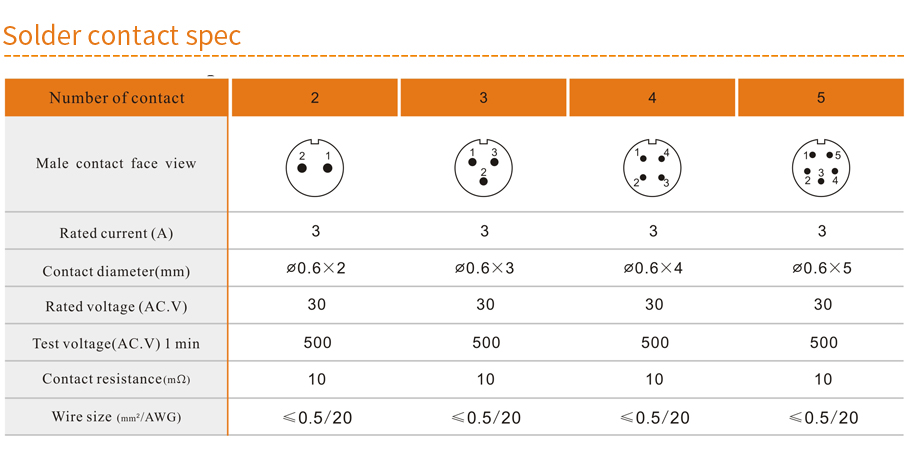

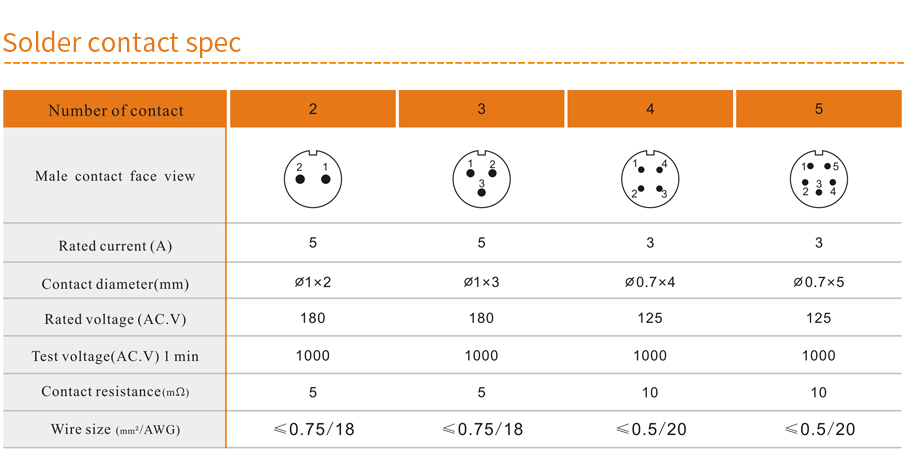

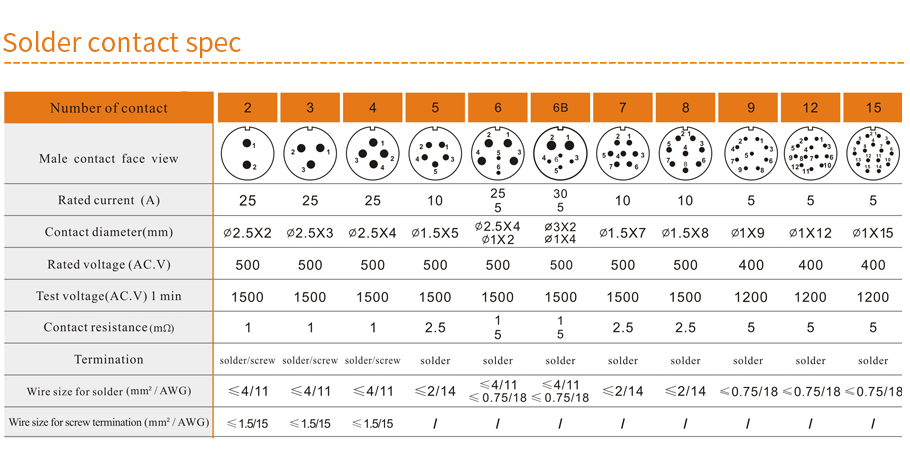

sf6 Solder contact spec

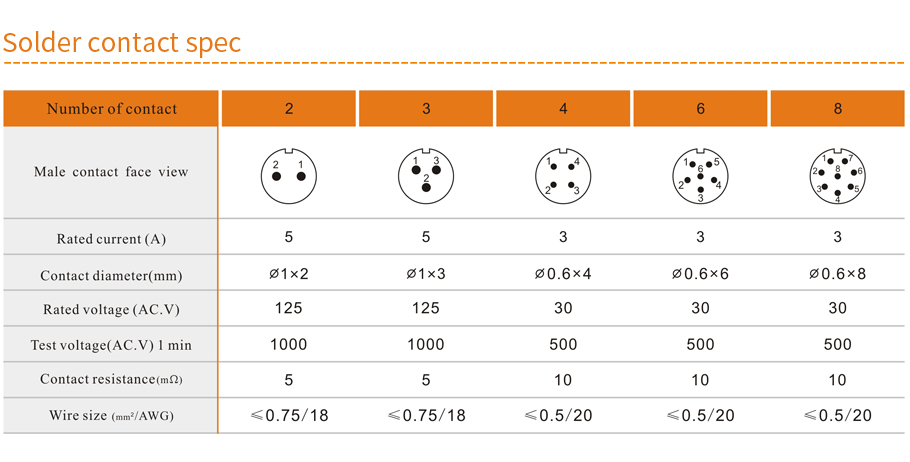

sf8 Solder contact spec
sf10 Solder contact spec

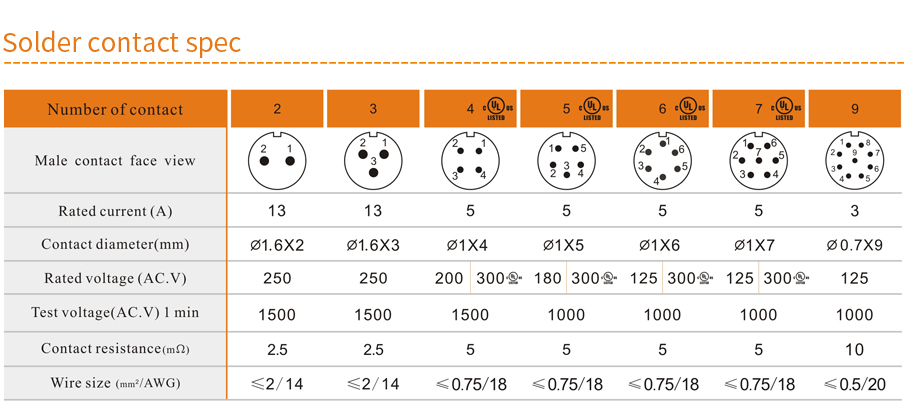

sf12 Solder contact spec

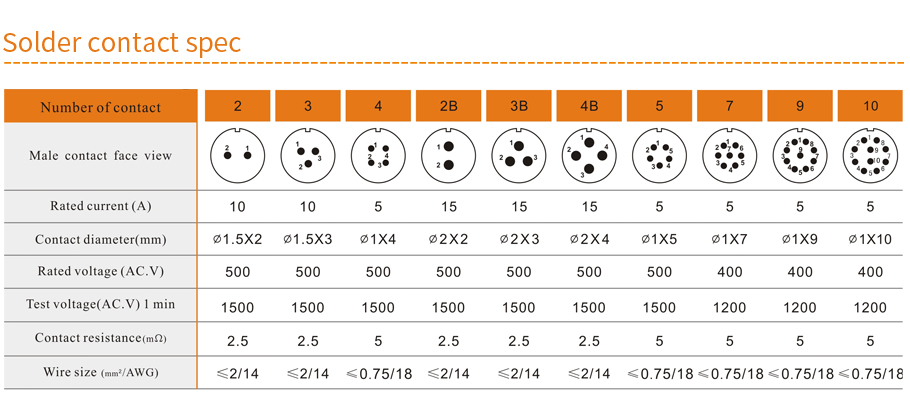

sf16 Solder contact spec
sf20 Solder contact spec
