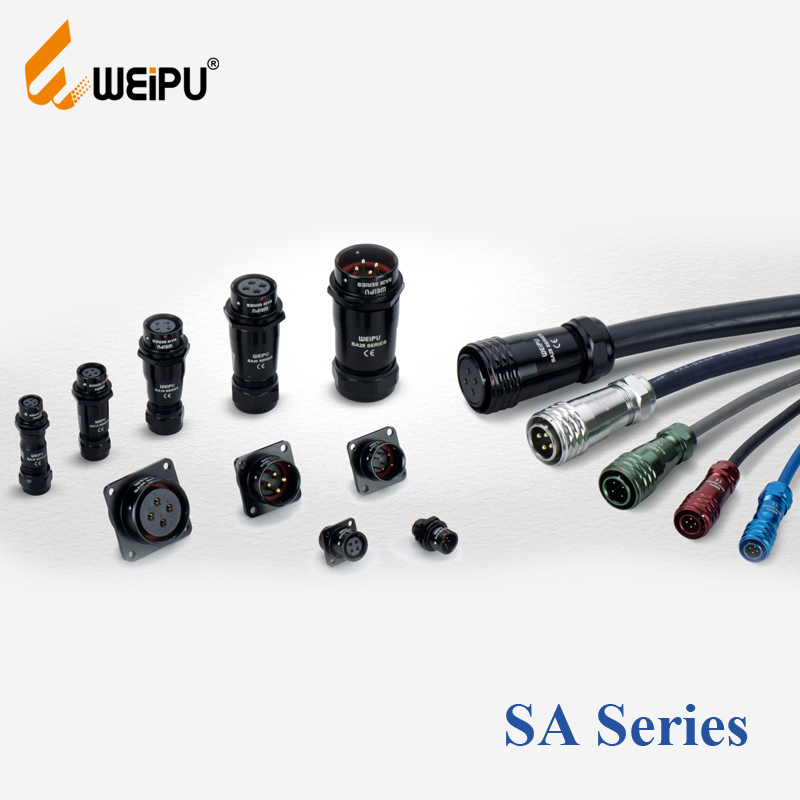

WEIPU SA Series Push-Pull Industrial Connector

The Weipu SA series connectors are high-quality, versatile connectors known for their ruggedness and reliability. Designed to meet various industrial and outdoor requirements, these connectors offer excellent environmental protection and are resistant to moisture, dust, and vibrations. The SA series connectors come in different sizes and configurations, making them suitable for a wide range of applications, including LED lighting, industrial automation, and outdoor equipment. With their robust construction and secure locking mechanisms, the Weipu SA series connectors ensure seamless and dependable connections for critical operations

Applied Range:
◆Mechanical keyboard
◆New energy battery
◆Electric scooter power supply
◆Outdoor lithium battery power supply
◆Other Industry Application

Description

Coupling Push-pull
Shell material Anodized aluminium
Insert material PPS, max temperature 260 *C
Contact material Brass with gold plating
Termination Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28   ;Crimp: SA16,SA20,SA28    ;Screw: SA20,SA28
Cable outer diameter range SA20: 13・16mm         ;SA6: 3.5-4mm     SA12: I: 4-6.5mm,II: 5-8mm    ;SA8: 4-5mm       SA16:1: 5-8mm ,II: 8-l2mm    ;    SA10:4-6.5mm    SA20: 8-12mm
IP rating IP67
Mating cycle 500
Temperature range ・ 40C~+85C
Insulation resistance 2000 MΩ

——————————————————————————————————————————————————————————————–

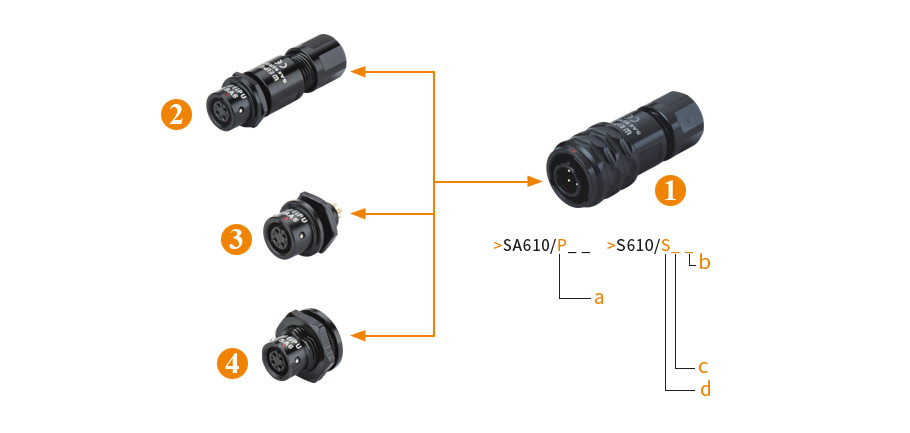

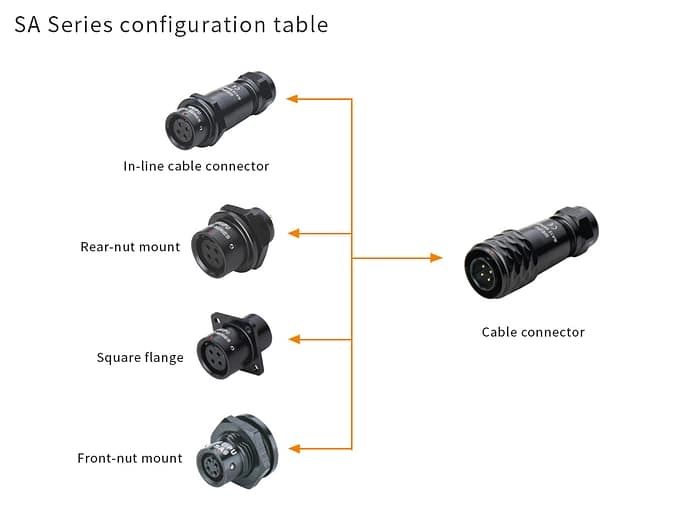

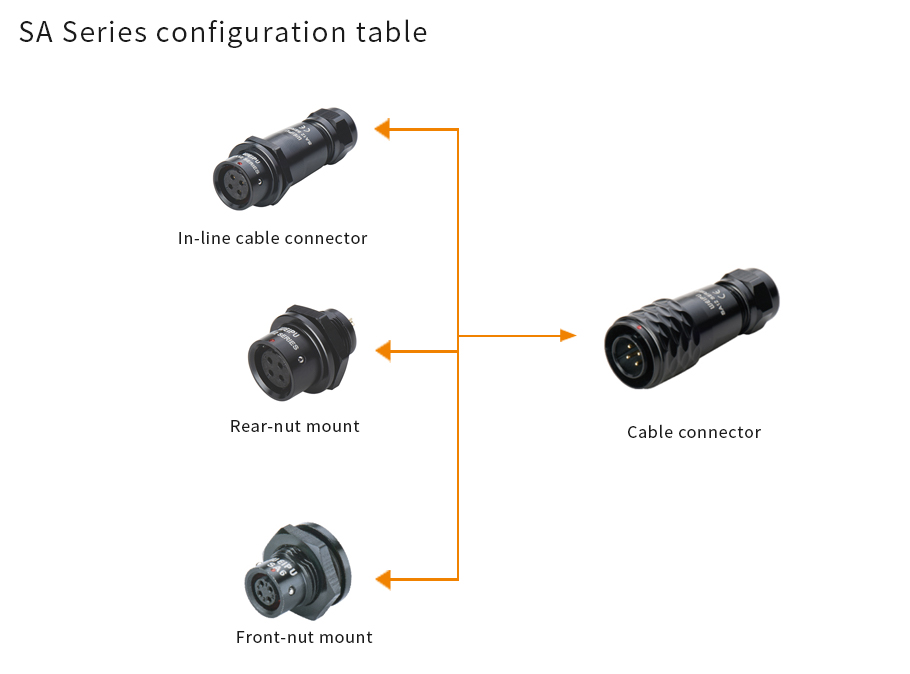

SA6 IP67 Series configuration table(list)
01、Cable connector(>SA610/P_ _    >SA610/S_ _) a、Male contact
02、In-line cable connector(>SA611/P_ _    >SA611/S_ _) b、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)
03、Rear-nut mount(>SA612/P_ _    >SA612/S_ _) c、Number of contact
04、Front-nut mount(>SA615/P_ _    >SA615/S_ _) d、Fmale contact

——————————————————————————————————————————————————————————————–

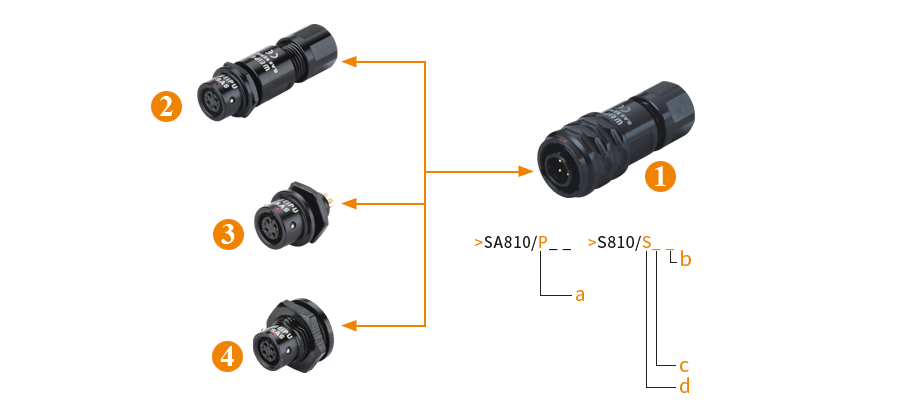

SA8 IP67 Series configuration table(list)
01、Cable connector(>SA810/P_ _    >SA810/S_ _) a、Male contact
02、In-line cable connector(>SA811/P_ _    >SA811/S_ _) b、Colour: B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)
03、Rear-nut mount(>SA812/P_ _    >SA812/S_ _) c、Number of contact
04、Front-nut mount(>SA815/P_ _    >SA815/S_ _) d、Fmale contact

——————————————————————————————————————————————————————————————–

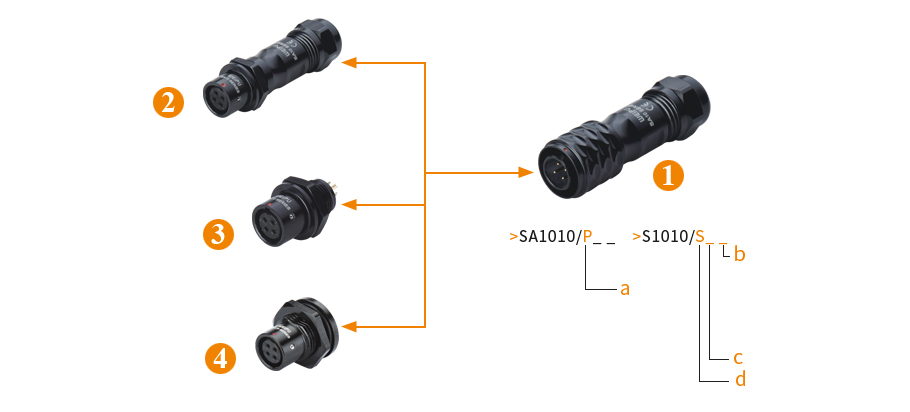

SA10 IP67 Series configuration table(list)
01、Cable connector(>SA1010/P_ _    >SA1010/S_ _) b、Colour: B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)
02、In-line cable connector(>SA1011/P_ _    >SA1011/S_ _) c、Number of contact
03、Rear-nut mount(>SA1012/P_ _    >SA1012/S_ _) d、Fmale contact
04、Front-nut mount(>SA1015/P_ _    >SA1015/S_ _)

——————————————————————————————————————————————————————————————–

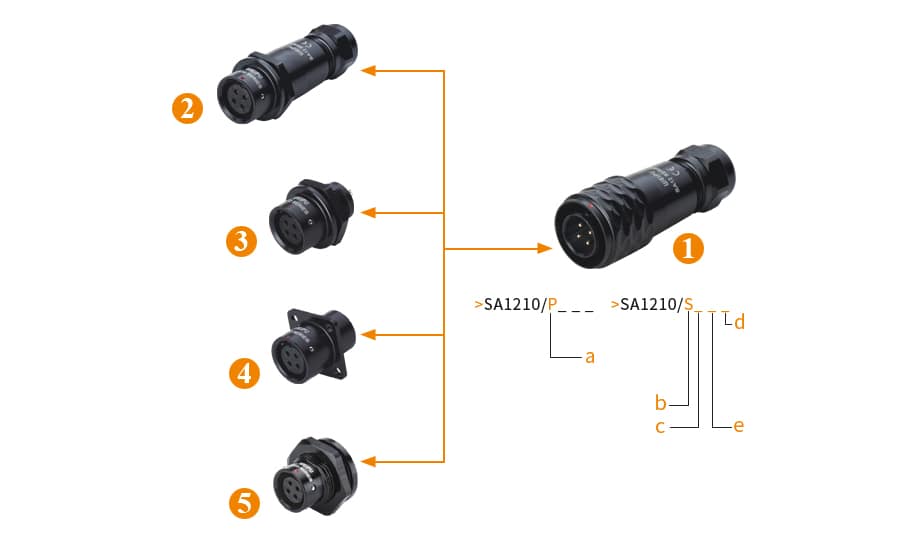

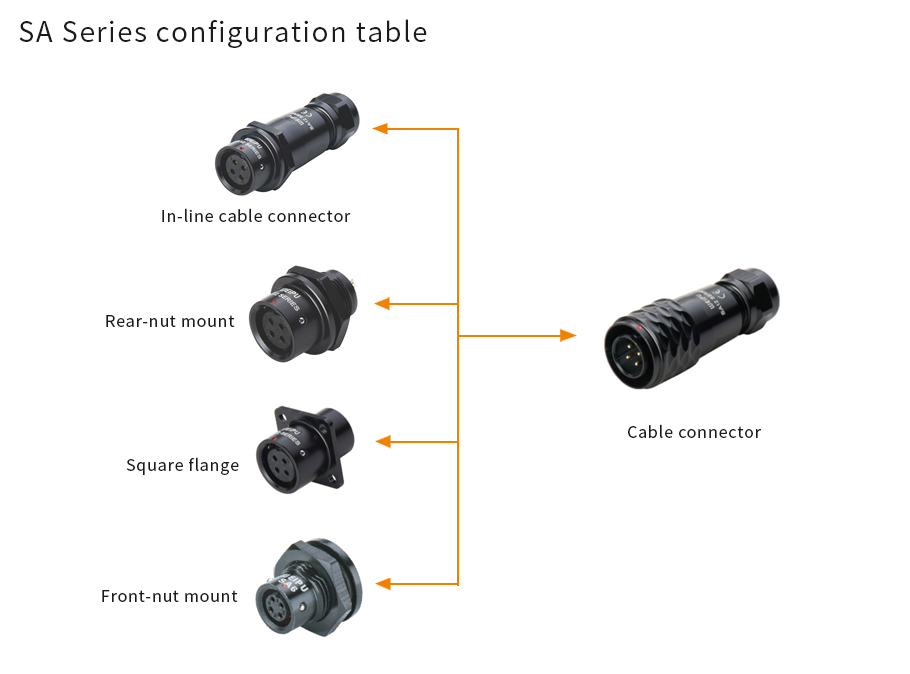

SA12 IP67 Series configuration table(list)
01、Cable connector(>SA1210/P_ _ _    >SA1210/S_ _ _) a、Male contact
02、In-line cable connector(>SA1211/P_ _ _    >SA1211/S_ _ _) b、Fmale contact
03、Rear-nut mount(>SA1212/P_ _    >SA1212/S_ _) c、Number of contact
04、Square flange(>SA1213/P_ _    >SA1213/S_ _) d、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)
05、Front-nut mount(>SA1215/P_ _    >SA1215/S_ _) e、Cable outer diameter Ⅰ: 4-6.5mm(default, no mark),Ⅱ: 5-8mm

——————————————————————————————————————————————————————————————–

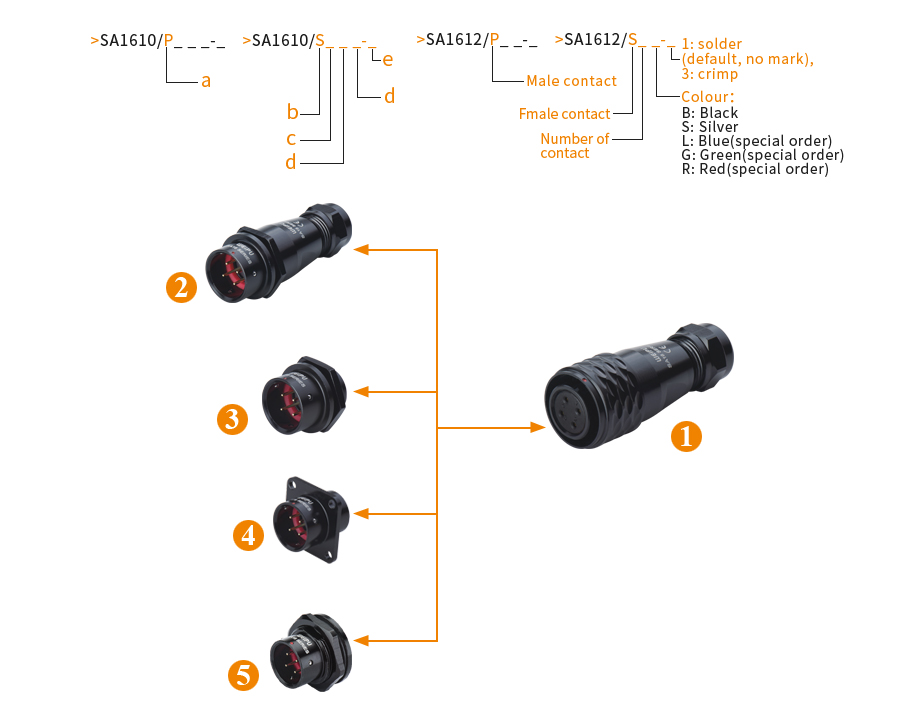

SA16 IP67 Series configuration table(list)
01、Cable connector(>SA1610/P_ _-_    >SA1610/S_ _-_) b、Fmale contact
02、In-line cable connector(>SA1611/P_ _ _-_    >SA1611/S_ _ _-_) c、Number of contact
03、Rear-nut mount(>SA1612/P_ _-_    >SA1612/S_ _-_) d、Cable outer diameter  I: 5-8mm(default, no mark), II: 8-12mm
04、Square flange(>SA1613/P_ _-_    >SA1613/S_ _-_) e、1: solder(default, no mark), 3: crimp
05、Front-nut mount(>SA1615/P_ _-_    >SA1615/S_ _-_) f、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)

——————————————————————————————————————————————————————————————–

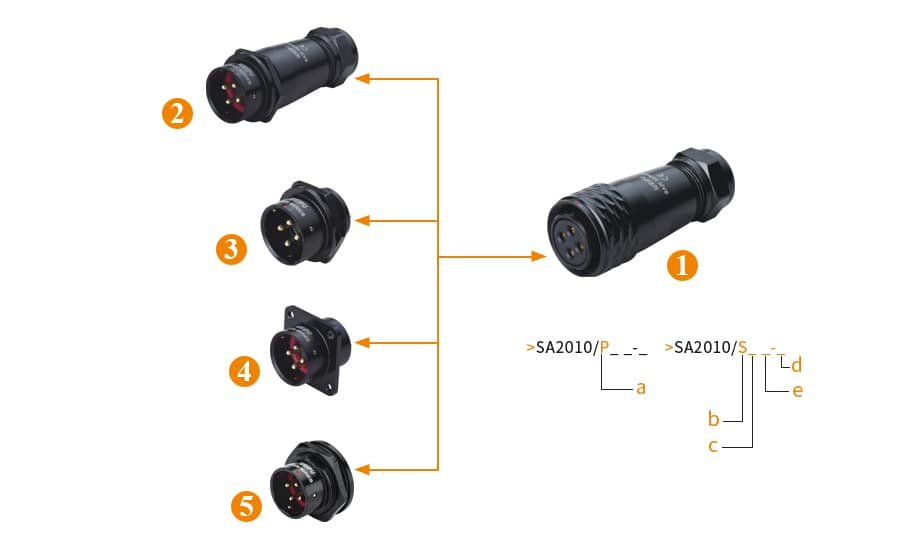

SA20 IP67 Series configuration table(list)
01、Cable connector(>SA2010/P_ _-_    >SA2010/S_ _-_) a、Male contact
02、In-line cable connector(>SA2011/P_ _-_    >SA2011/S_ _-_) b、Fmale contact
03、Rear-nut mount(>SA2012/P_ _-_    >SA2012/S_ _-_) c、Number of contact
04、Square flange(>SA2013/P_ _-_    >SA2013/S_ _-_) d、Cable outer diameter  I: 5-8mm(default, no mark), II: 8-12mm
05、Front-nut mount(>SA2015/P_ _-_    >SA2015/S_ _-_) e、1: solder(default, no mark),  2: screw,  3: crimp

——————————————————————————————————————————————————————————————–

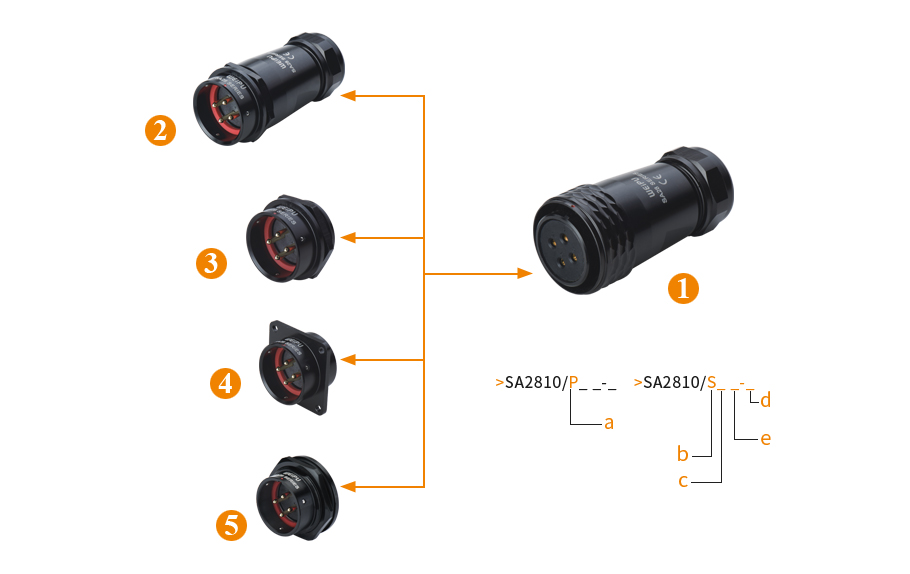

SA28 IP67 Series configuration table(list)
01、Cable connector(>SA2810/P_ _-_    >SA2810/S_ _-_) a、Male contact
02、In-line cable connector(>SA2811/P_ _-_    >SA2811/S_ _-_) b、Fmale contact
03、Rear-nut mount(>SA2812/P_ _-_    >SA2812/S_ _-_) c、Number of contact
04、Square flange(>SA2813/P_ _-_    >SA2813/S_ _-_) d、1: solder(default, no mark),  2: screw,  3: crimp
05、Front-nut mount(>SA2815/P_ _-_    >SA2815/S_ _-_) e、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)

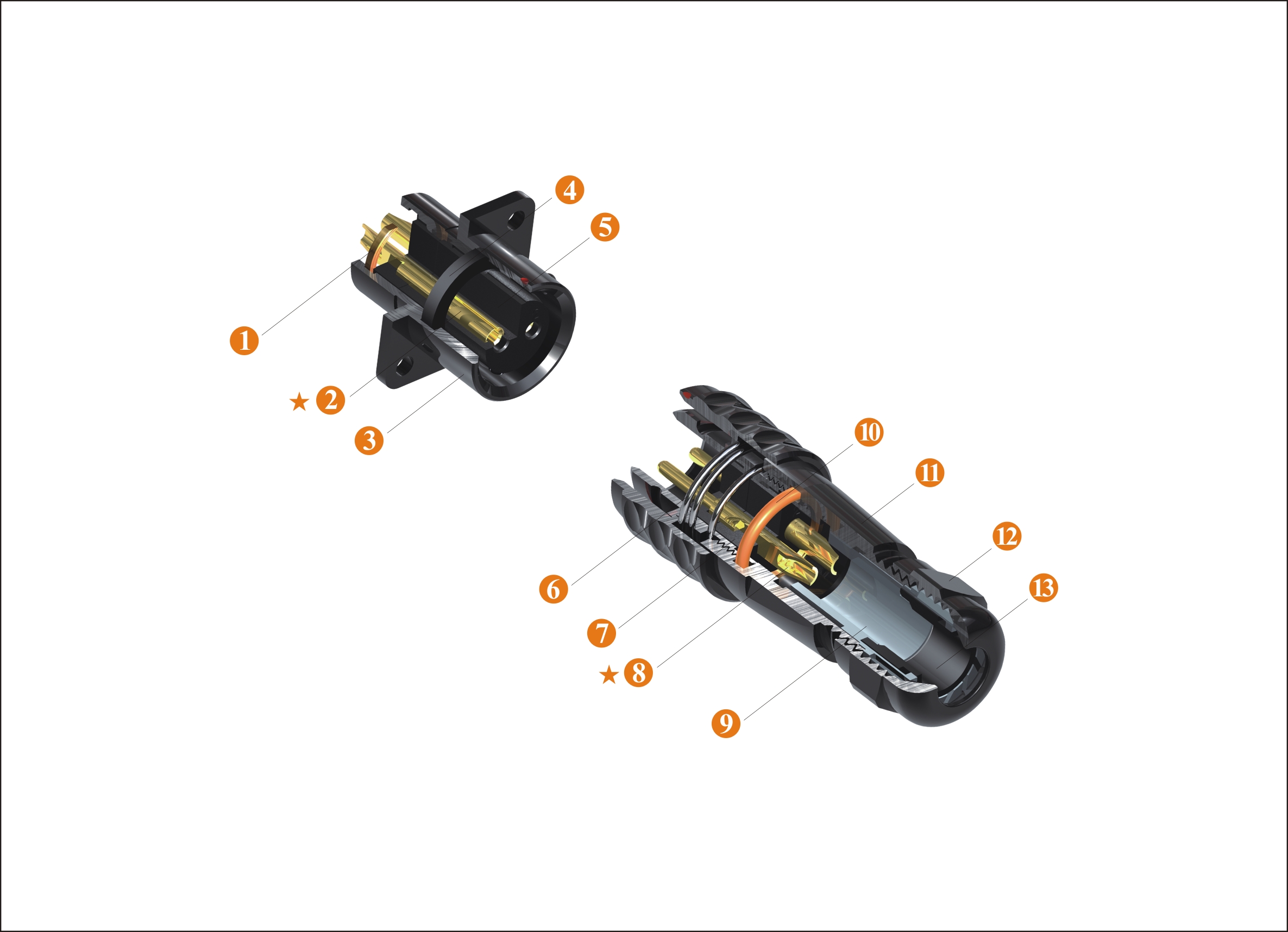

01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
07、Insert
★Each side can be male or female contact

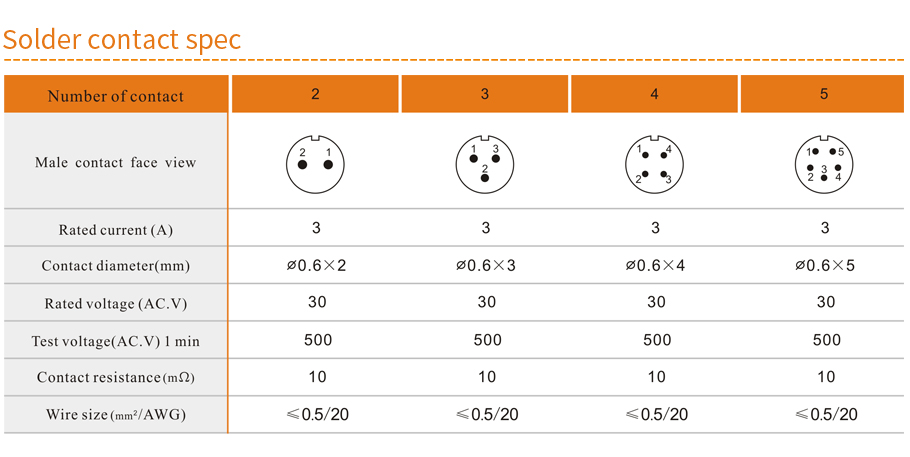

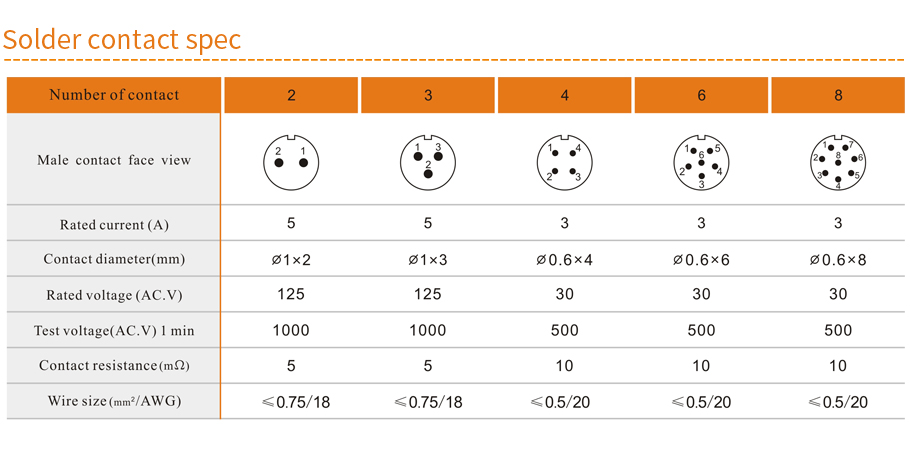

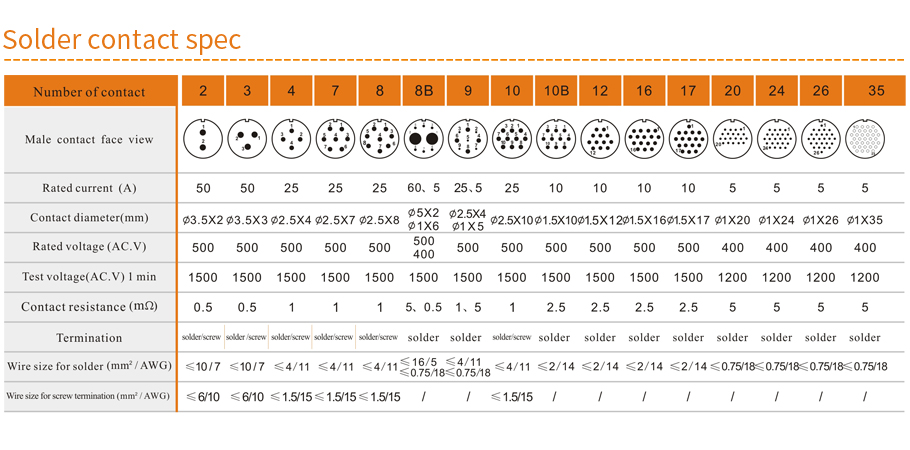

SA6 Solder contact spec



SA8 Solder contact spec

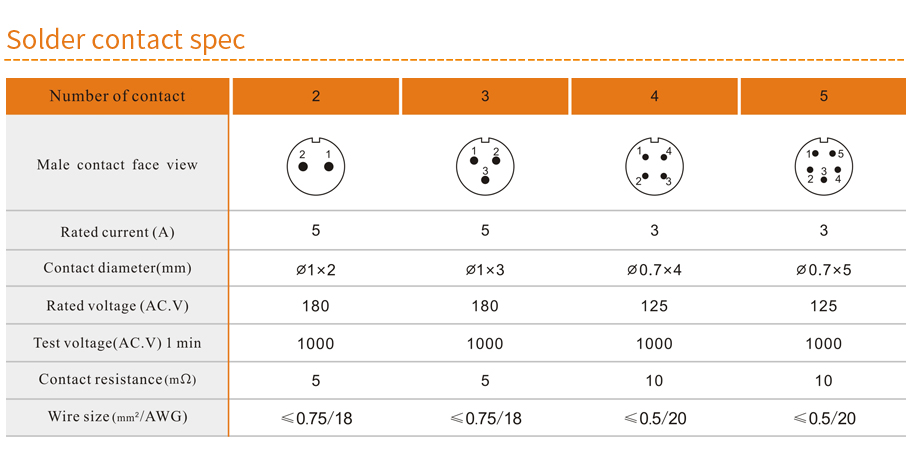

SA10 Solder contact spec

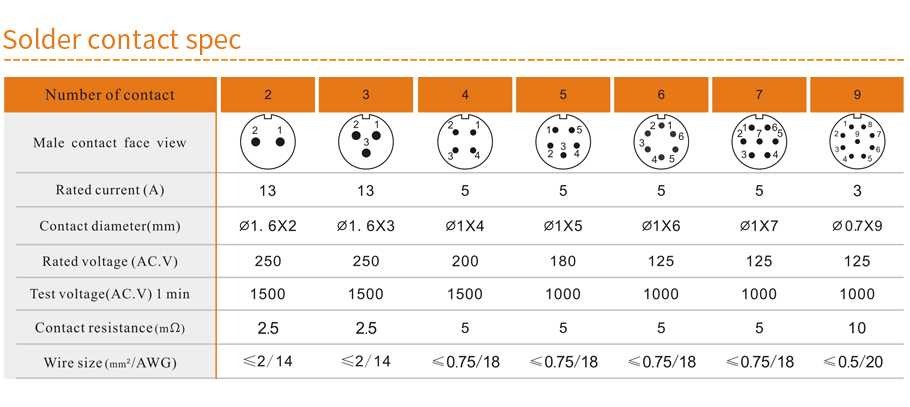

SA12 Solder contact spec

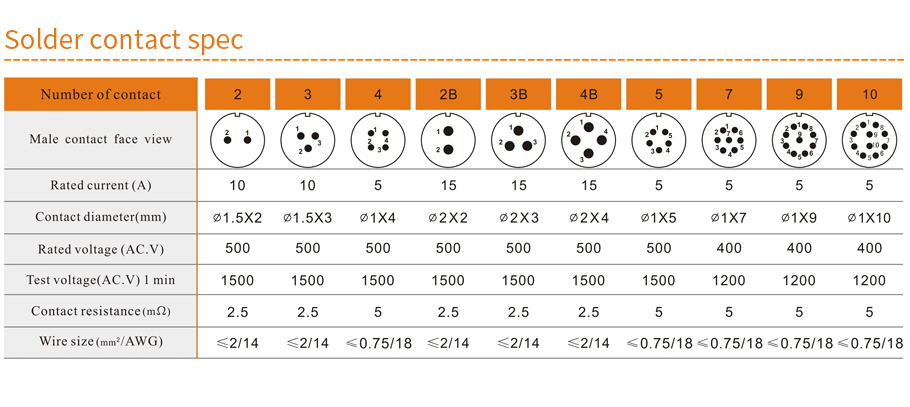

SA16 Solder contact spec

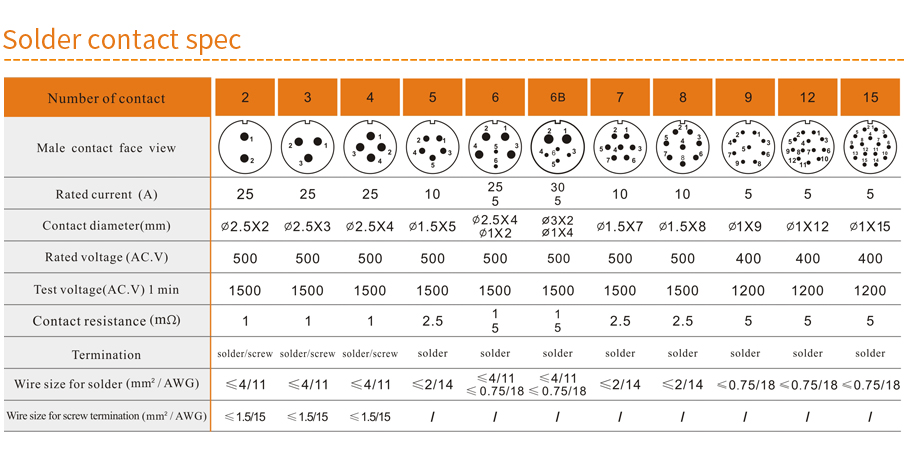

SA20 Solder contact spec



SA28 Solder contact spec
